Hello world - output to hardware (led)

Inquisitive

Super Moderator

• Oct 2, 2013

• #1

How many programming languages can we represent on this forum saying "hello world". In this version you must turn on a LED, show your code (clearly state whichever language you chose and version) and provide a schematic clearly displaying the type of chip, resistor values, power supply voltage.

Interested in showing us for example a 8051 turning on a LED in a functioning circuit?



be80be

Well-Known Member

• Oct 2, 2013

• #2

You posted this in the wrong place



Inquisitive

Super Moderator

• Oct 2, 2013

• #3

be80be said:

You posted this in the wrong place

Click to expand...

I posted in Code Repository because the intent was to cover all microcontrollers. We did not have a all micro controllers inclusive thread. I thought this the best compromise. Sorry if it does not fit. I stand to be corrected or thread moved as seen fit.



L

Lourens

Member

• Oct 16, 2013

• #4

This is the the 'code' for Hello World when using the VPS graphical language. I added the gate to make it more interesting. As the trace view shows now you can stop and start the LED flashing with the A_Switch signal. The 2nd figure in the hardware was used for this particular application.

What happened to the other coders on this forum?



Attachments

• VPS_P18_BasicHardware.pdf

  240 KB · Views: 457

Inquisitive

Super Moderator

• Oct 16, 2013

• #5

No code?



L

Lourens

Member

• Oct 16, 2013

• #6

Inquisitive said:

No code?

Click to expand...

The picture is the program (although in this case it is just a screen shot). To be precise - the program/project is a script file generated and interpreted by a graphical IDE that produces the .hex file. Download links for the VPS ide you can find in this forum under Microcontrollers. See the thread Diagramatic programming for pic of 11 Oct.



Inquisitive

Super Moderator

• Oct 16, 2013

• #7

Thanks for the explanation.



misterT

Well-Known Member

Most Helpful Member

• Oct 16, 2013

• #8

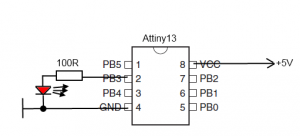

Here is my "Hello Led" for Attiny13
- Package: 8-PDIP or 8-SOIC
- Compiler: avr-gcc 4.8
- Language: C

C:

void main(void)
{
    /* Port B pin 3 as output */
    *((char*)(0x17)) = 0b00001000;

    /* Port B pin 3 high */
    *((char*)(0x18)) = 0b00001000;

    /* Infinite loop */
    for(;;){}
}



Last edited: Oct 16, 2013
