Eagle Package?

Status
Not open for further replies.

silvarblade

Member
Does any one know any IC in Eagle that has the 48-Pin TQFP PBF package.I want it for TI's DAC.


Mickster

Well-Known Member
Most Helpful Member
One in "micro-siemens"
Another in "ref-packages"
Help any?


silvarblade

Member
The siemens one has a 100Pin TQFP,the ref one i am having trouble to find!

Last edited:

Mickster

Well-Known Member
Most Helpful Member

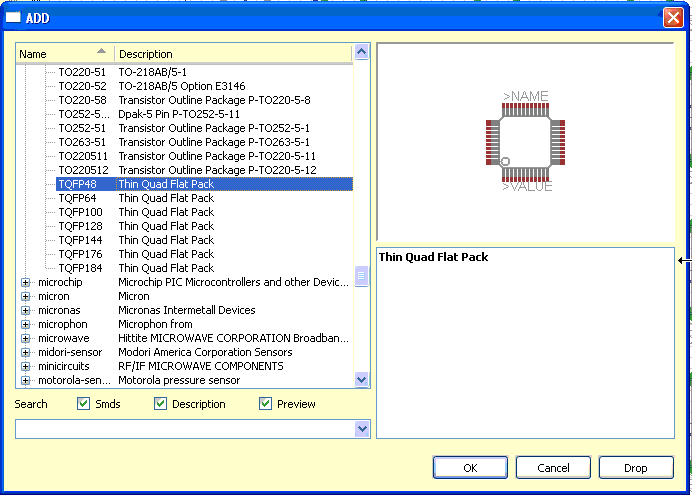

"micro-siemens" section: (EDIT - Dunno why it has turned that ugly shade of yellow..)


Attachments

  • TQFP48.PNG
    14.7 KB · Views: 605
Last edited:

silvarblade

Member
Hi Mickster,As much as i thank you for your answer i cant find this option in My Eagle is 5.3.0.Do i need another library?Is it available from cadsoft.de?


Mickster

Well-Known Member
Most Helpful Member
Looks like you'll have to go to the library section:



and do some downloading.

ref-packages.lbr is there and should contain the TQFP 48 pin package you want.

A quick search through the libraries I have, shows this package in:
amd-mach
atmel
micro-siemens
ref-packages

Have you tried a search for "TQFP48" within Eagle? If any of your libraries contain it, it will be listed.

HTH.


psecody

Member
you could also make your own for it. Thats what I've been doing recently for all the PIC's that I use because there weren't any in the libraries. The first one took me forever to figure out but after that you get the hang of it and it takes like 5 minutes.
