F fiatlux New Member Feb 12, 2004 #1 Can you help please? It's a 3-Gun Sound effects chip. Thanks in advance.

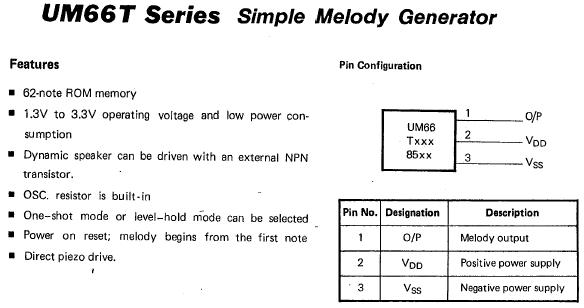

Sebi Active Member Feb 16, 2004 #2 If i remember well, the pinout is same,just a melody different.... Attachments UM66.JPG 30.4 KB · Views: 2,612
F firojjj New Member Aug 27, 2009 #3 Can you supply me a schamatic diagram using um3562 that produced gun sound?
vedo35 Member Aug 29, 2009 #4 I have very old UMC databook about commerical ics. I have info um3561 but no infoabout 3562. Possible same pinouts. 8 pins dip. just search at alldatasheets.
I have very old UMC databook about commerical ics. I have info um3561 but no infoabout 3562. Possible same pinouts. 8 pins dip. just search at alldatasheets.
