Couldn't Understand a thing

Status
Not open for further replies.

absf

Active Member

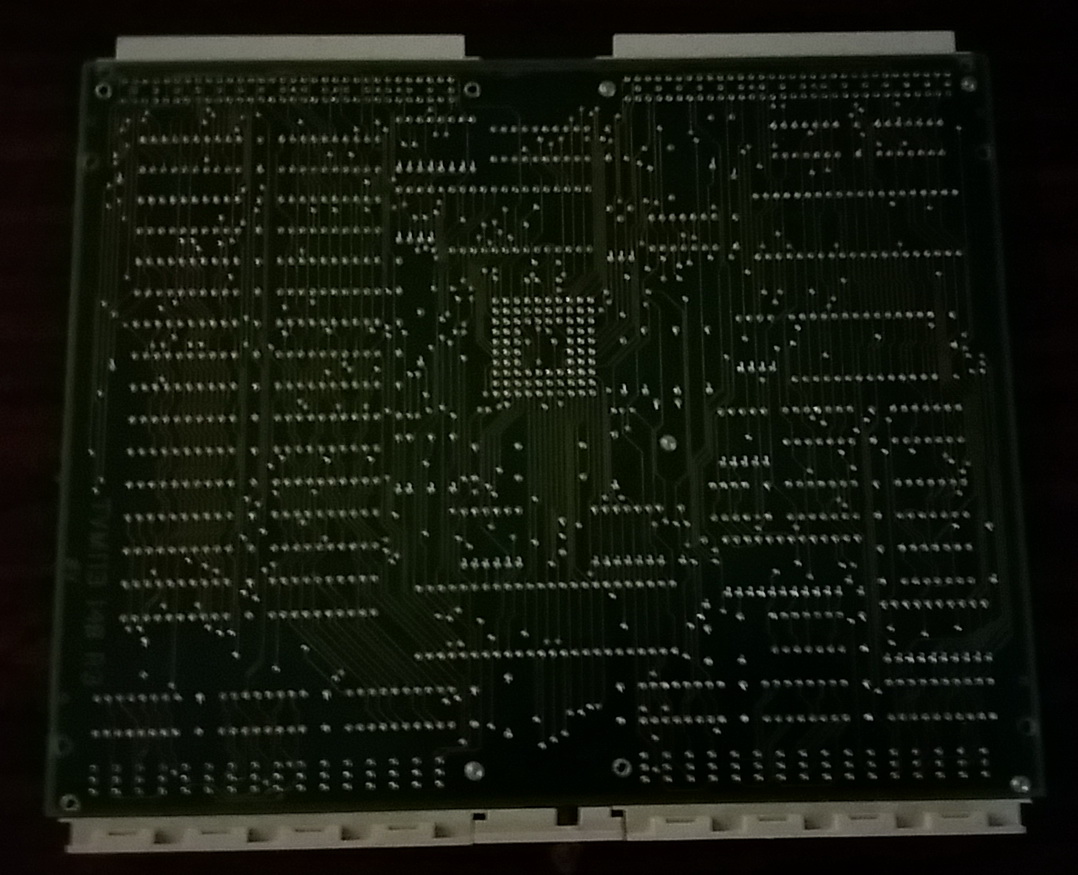

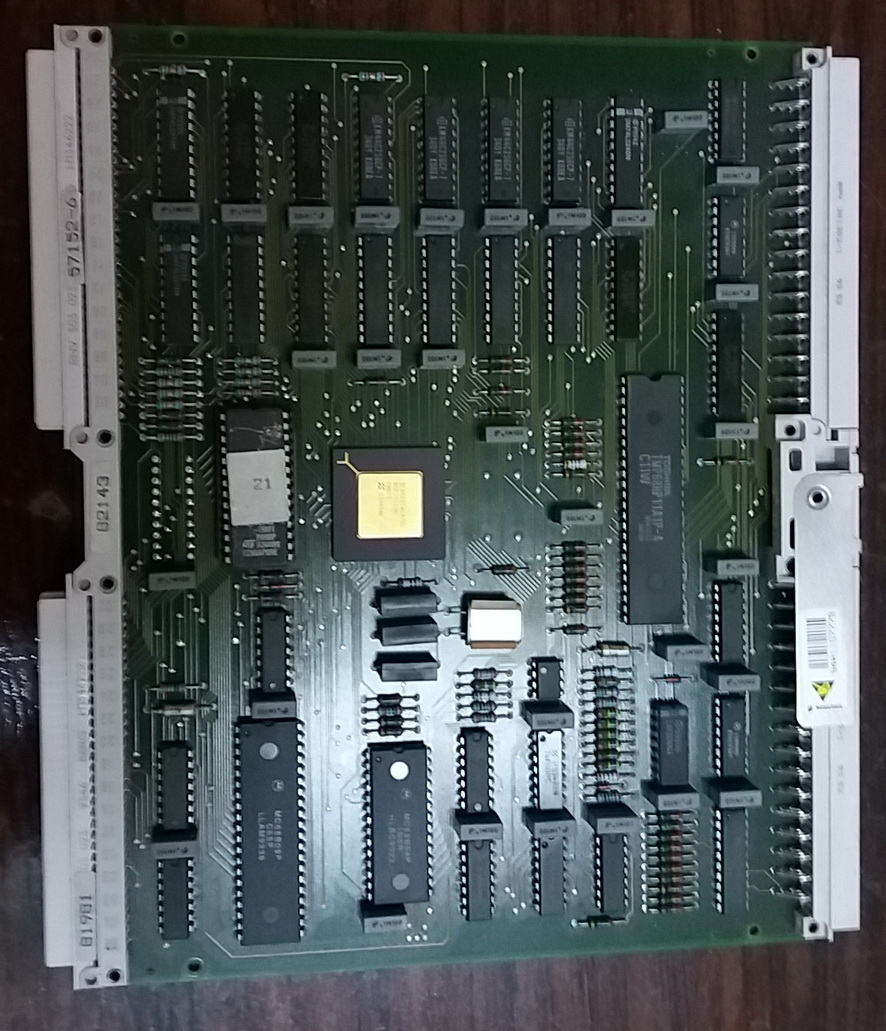

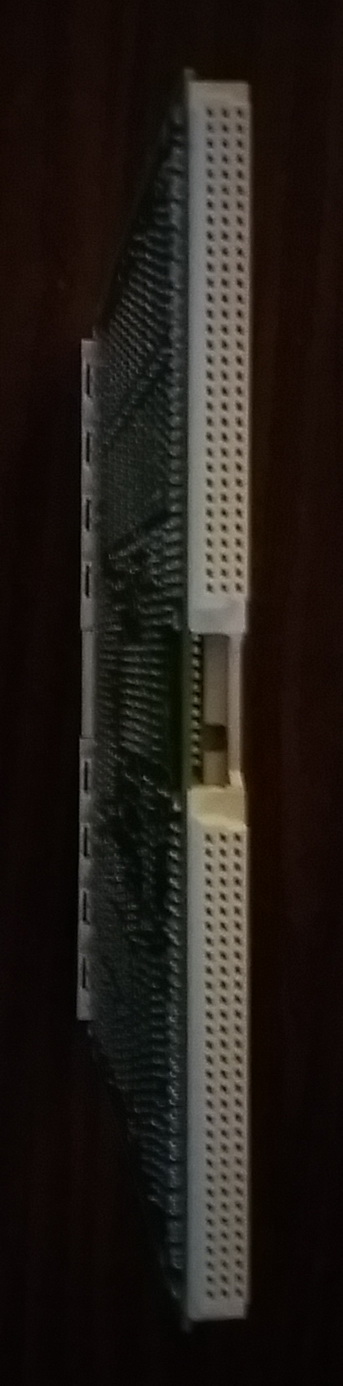

I think this is a card extender for repairing euro-size card like the ones attached...

20170316_142753.jpg 20170316_142640.jpg 20170316_142726.jpg

Except the cards that we use have female plugs at the back but the card extender accepts male plugs.

Allen

Last edited:

JonSea

Well-Known Member
Most Helpful Member
It's a breakout board. Cables plugged into the center connector are broken out to terminal blocks on each side. The "handle" is for supporting the cable coming into the breakout board.

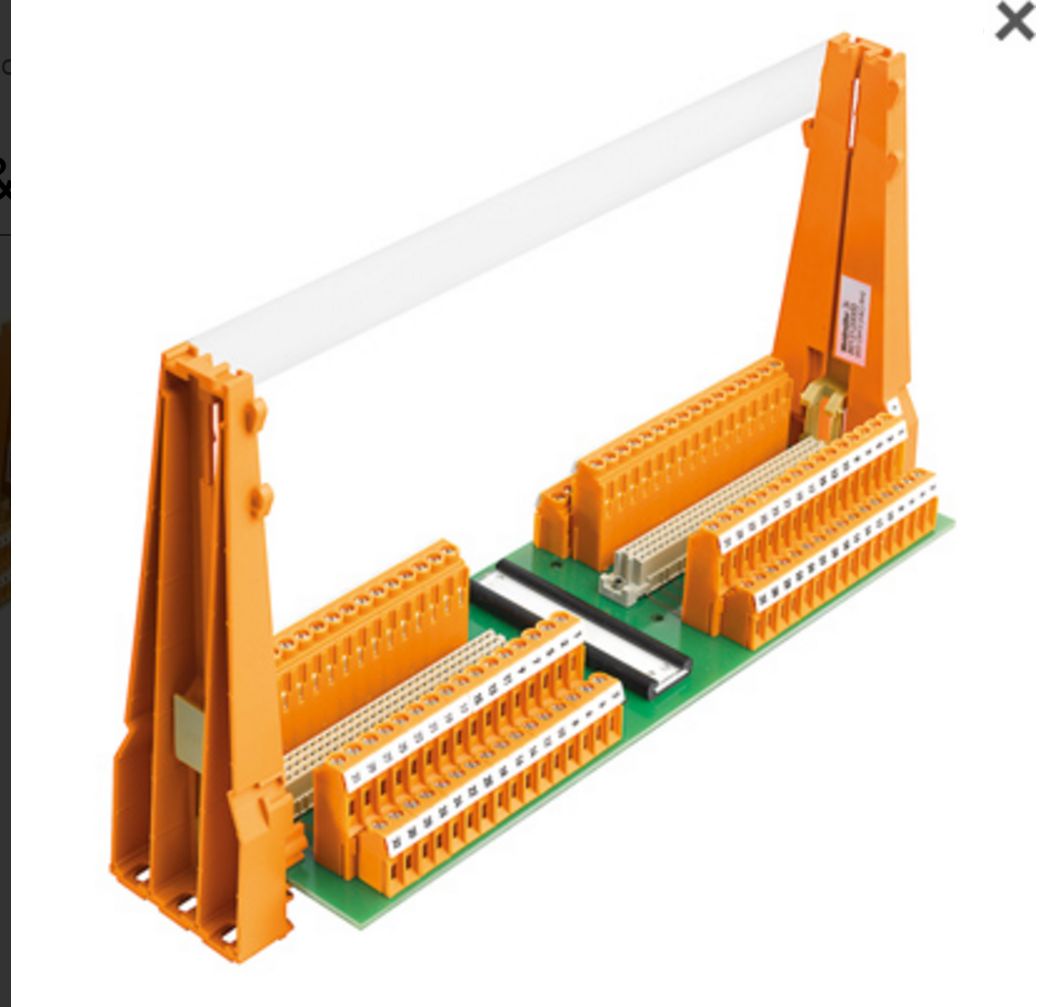

et mystery breakout.jpg


JimB

Super Moderator
Most Helpful Member
The upright sections are card guides to support a "6H high" Eurocard, which plugs into the two DIN41612 connectors (the grey connectors in the middle).
The two outer rows of each connector are connected to the two sets of terminal blocks at each side of the DIN41612 connector.

JimB


dr pepper

Well-Known Member
Most Helpful Member
I've seen those a lot in industrial controls, they seem popular for electronic hydraulic valve controls.
