Connect a flyback transformer ??

Status
Not open for further replies.

khelz

New Member
Hi guys,

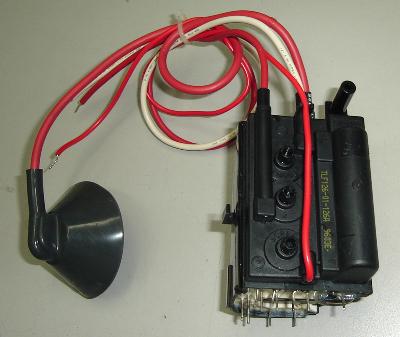

just got my new flyback which not an old style one, but a new one, with the rectifier in it. The thing is I dont know anything about the windings and their connections, but that the HV output is on the suction wire. Below you have a picture of the same kind of flyback that I have.

I read I'm supposed to make some tests with an ohmeter to find the winding, but they no more information on it....

Can you help me with the connection please !

Thank you


http://www.electronicrepairguide.com/flyback1.jpg

If you're trying to put it in a TV, just unsolder the old one and put the new wires where the old ones came from.

If you can't figure out a driver circuit for it so you can have twenty or thirty thousand volts just to play with, I can't help you.
