circuit design

Status
Not open for further replies.

beyonce_nei

New Member
circuit design(block diagram, schematic. logic diagram) using seven segment display that uses BCD counter that displays 3 different number, example when the count is 0001 in the counter the display in the 7 segment is{ 1}, when the count is 0010 the diplay is {4}, and when the count is 0011 the diplay is {3} and when the count is 0100 the display now is ack to {1}.
email me on beyonce_nei@yahoo.com
oe mylabs705@yahoo.com


Russlk

New Member

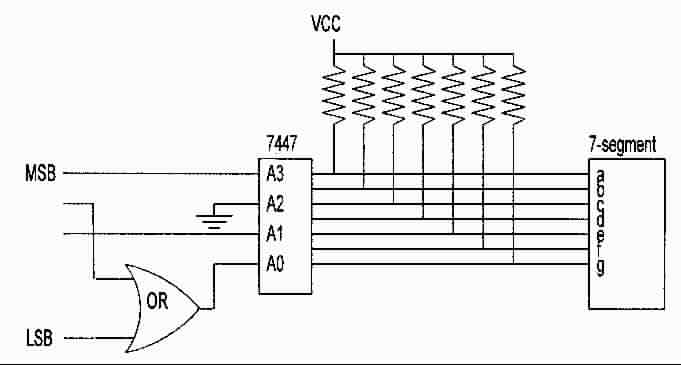

This circuit will do what you said, but what happens when the count is 0101? Or don't you care?


Attachments

  • digit_ckt.jpg
    14.9 KB · Views: 440

beyonce_nei

New Member
beyonce_nei said:
circuit design(block diagram, schematic. logic diagram) using seven segment display that uses BCD counter that displays 3 different number, example when the count is 0001 in the counter the display in the 7 segment is{ 1}, when the count is 0010 the diplay is {4}, and when the count is 0011 the diplay is {3} and when the count is 0100 the display now is back to {1}. then 0101 {4} up to 1001 displays a {3} value

a circuit design(block diagram, schematic. logic diagram. design on PCB) of 2-bit RAM using JK and D Flip-flops

email me on beyonce_nei@yahoo.com
oR mylabs705@yahoo.com
