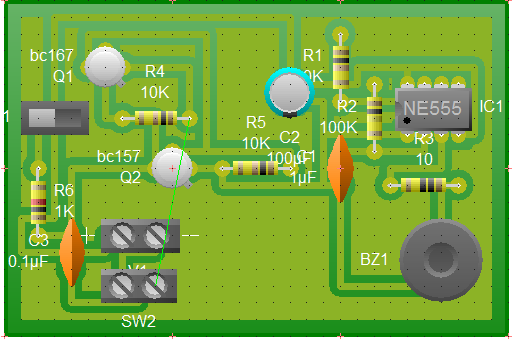

C Callmesenpai New Member Mar 27, 2016 #1 What does the green line indicates (sw2 to r4)? Im just new here. Sorry for bad english.
Ian Rogers User Extraordinaire Forum Supporter Most Helpful Member Mar 28, 2016 #2 It is an un-allocated rats nest... The R4 resistor needs to be connected to the switch 2 connector... The "auto router" couldn't finish this board... you will need to manually route that track.
