BCD up-down counter 7segment with Thumbwheel switch

Discussion in 'Homework Help' started by kctt, Jun 26, 2016.

  1. kctt

    kctt New Member

    Joined:
    Jun 26, 2016
    Messages:
    6
    Likes:
    0
    im doing a bcd 7segment up down counter with thumbwheel switch. i have no idea what kind of circuit to use along with what kind of ics and the connection. any kind expert out there willing to help me plot the circuit out? really in need of this circuit.

  2. kctt

    kctt New Member

    Joined:
    Jun 26, 2016
    Messages:
    6
    Likes:
    0
    in need of help!

  3. Inquisitive

    Inquisitive Super Moderator

    Joined:
    Aug 31, 2011
    Messages:
    947
    Likes:
    87
    Location:
    Georgia, USA
    Hi kctt welcome to ETO.

    Is this a homework assignment?

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. kctt

    kctt New Member

    Joined:
    Jun 26, 2016
    Messages:
    6
    Likes:
    0

    yes it is. and im down to 2 weeks to design the circuit and build it. so im in desperate need of help for someone to design it for me.

  6. Inquisitive

    Inquisitive Super Moderator

    Joined:
    Aug 31, 2011
    Messages:
    947
    Likes:
    87
    Location:
    Georgia, USA
    I don't think anybody will design it for you.

    You will have to show your work. People will help when you get stuck.

    If this is part of a course you must have some idea of what you need to do.

  7. kctt

    kctt New Member

    Joined:
    Jun 26, 2016
    Messages:
    6
    Likes:
    0
    so far i have a cd4511 thumbwheel switch and a 7 segment as decoder. im missing a 555-timer and i have no idea if it fits the circuit or how im suppose to connect it

  8. kctt

    kctt New Member

    Joined:
    Jun 26, 2016
    Messages:
    6
    Likes:
    0
  9. kctt

    kctt New Member

    Joined:
    Jun 26, 2016
    Messages:
    6
    Likes:
    0

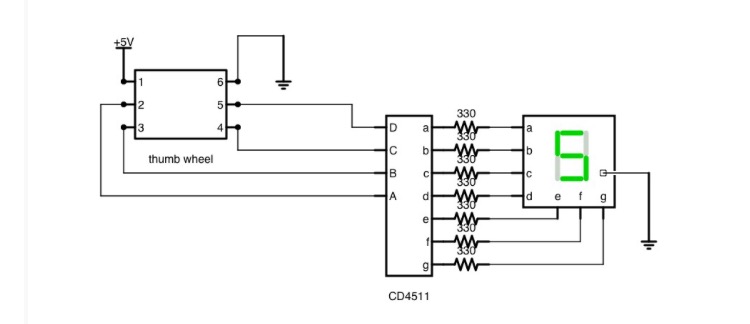

    this is what i have so far, i believe its just a decoder. what about counter

  10. MaxHeadRoom78

    MaxHeadRoom78 Active Member

    Joined:
    Jun 9, 2015
    Messages:
    893
    Likes:
    72
    Location:
    Canada Geog Cen of N.A.
    Double posting here and in other forums! Same question.
    Max.

  11. JoeJester

    JoeJester Active Member

    Joined:
    Nov 6, 2009
    Messages:
    699
    Likes:
    105
    Location:
    Grand Prairie, TX
    You need to revisit your drawing after looking at the CD4511 datasheet.

    It will be painfully obvious why you need the 555 timer.
