AC Circuit Analysis - Looking for Example Questions

[Edd]

I was wondering if anyone has any links to sites with AC circuit analysis questions? I have a mid semester exam at uni in a couple of days and I've done all the tutorial questions we have been given. There's not much else to practise.

It's steady state (not transient), AC circuit (RLC) analysis with phasors, including:
• Superposition Principle
• Norton/Thevenin Theorems
• Source Transformation
• Independent voltage and current sources only (no dependent ones)

A typical question might have a 1-2 sources (voltage, current or both), a couple of resistors, inductors and capacitors and ask us to find the voltage or current through an element, or draw equivalent circuits, etc.

It's not too hard, but I want more practice to get the speed up, as we don't get much time in the exam. I've googled, but haven't found anything too useful.

If anyone could give me some links to practice problems, that would be great. Thanks!



[ljcox]

Edd,
When I was a student, I used the book

Electric Circuits by Joseph A Edminster

It is one of the Schaum's outline series.

It has 350 solved problems.

It covers the issues you have asked about.

It should be in your uni library.



[ljcox]

I've scanned & attached 2 pages as an exmple.

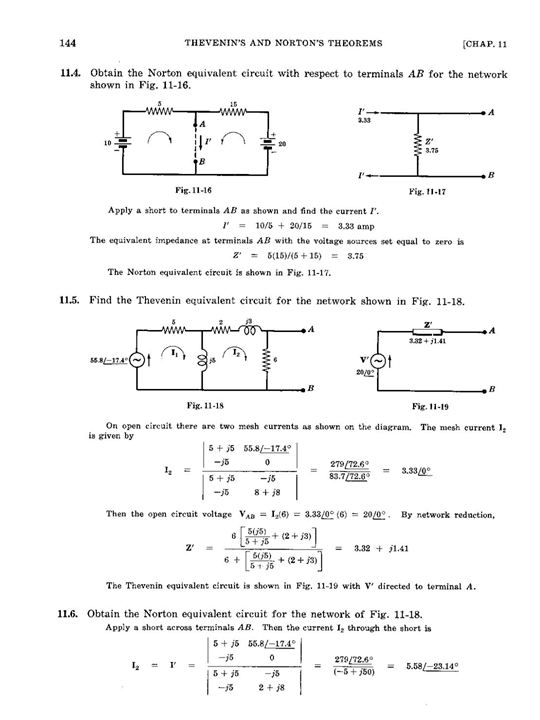

Page 144 shows some solved problems.

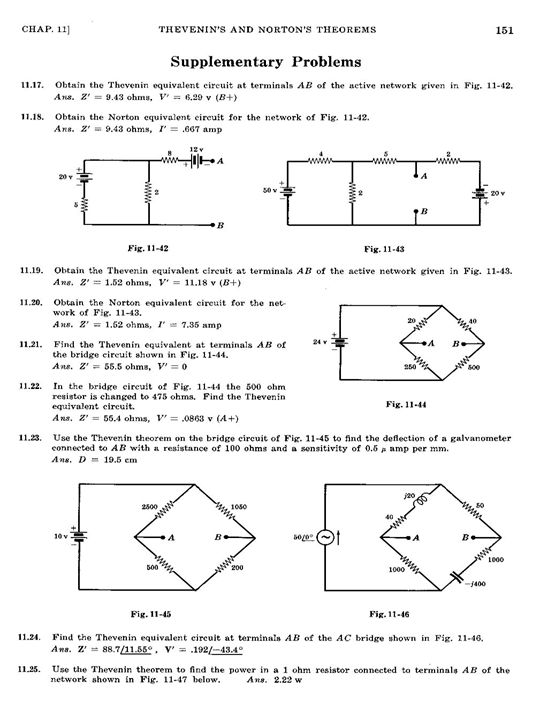

Page 151 shows supplementry problems where only the answers are given.



[Edd]

Thanks heaps for going to the trouble of scanning those pages.

They are somewhat easier than what we've been doing in tutorials, but then again we're also told that the exam will be easier than the tutorial questions. All practice is good practice.



[ljcox]

You're welcome, good luck with the exam.
