3 Wire Load Cell

Status
Not open for further replies.
B

bilal27

New Member
hi,

i my doing work on digital weight machine.in this i m facing problem in connecting four load cells to 20 bit adc ....
i m not getting any idea of load cell.
bec its resistance does not varies as i inserted force on it..
kindly help me out ....

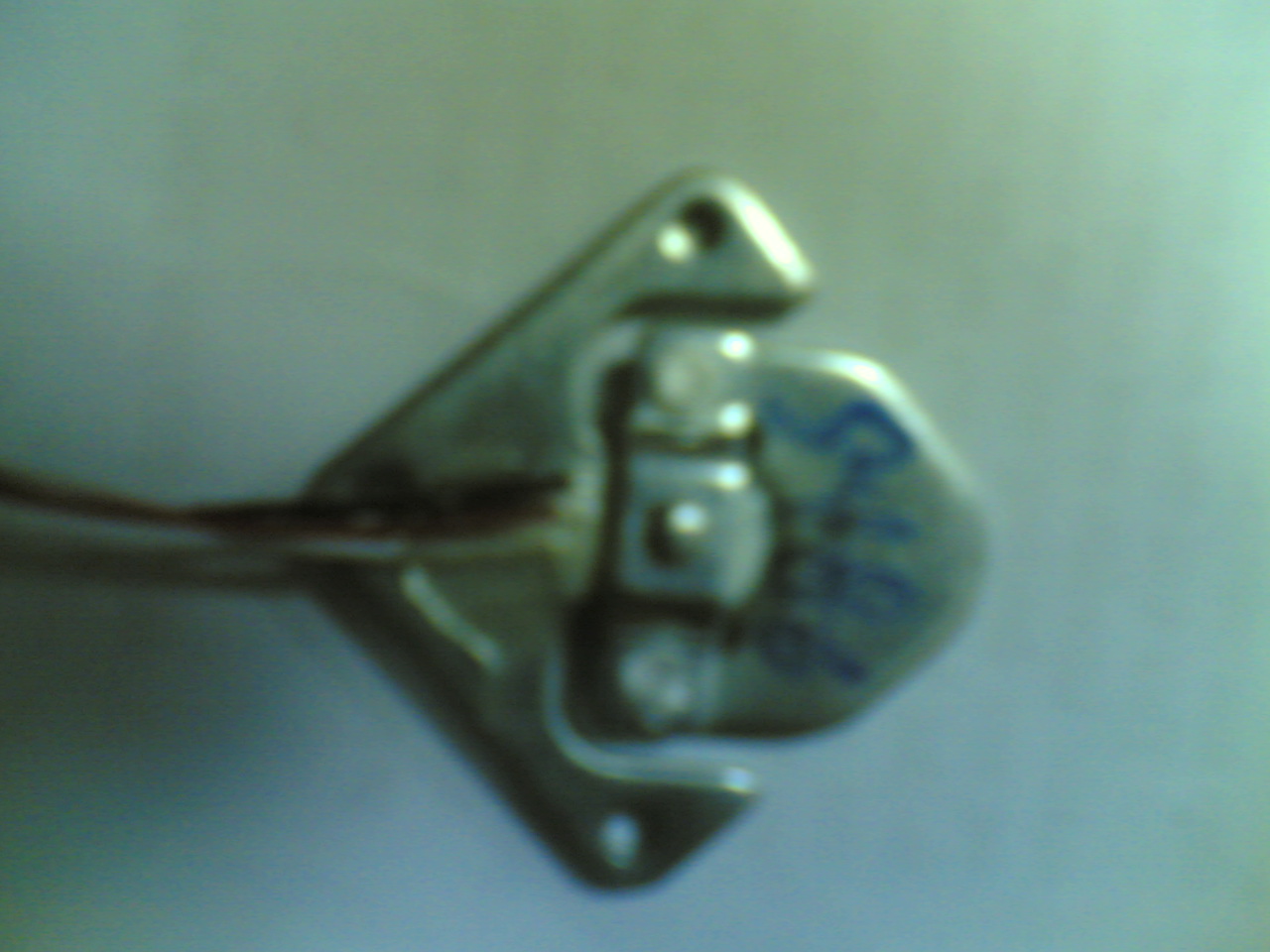

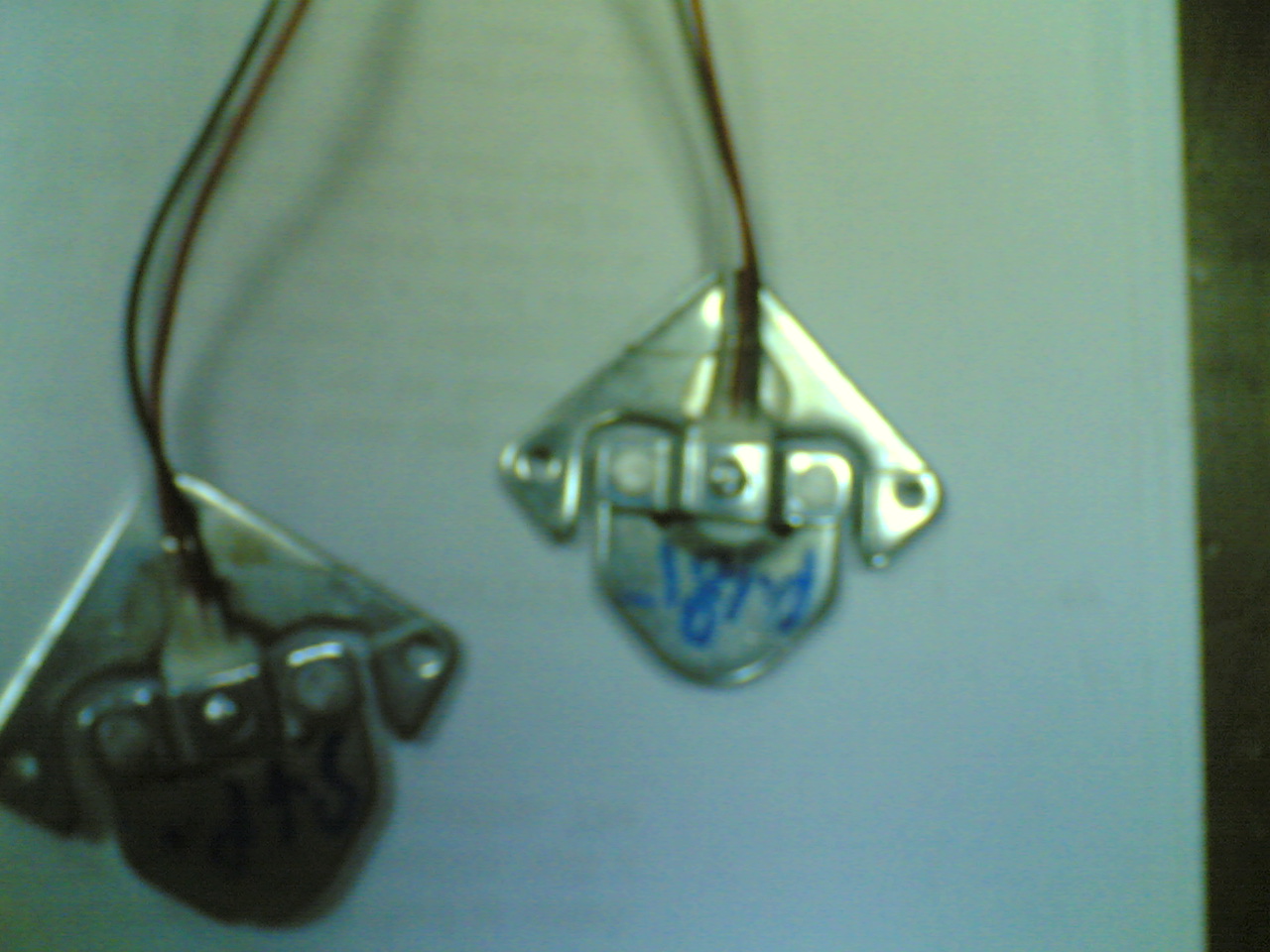

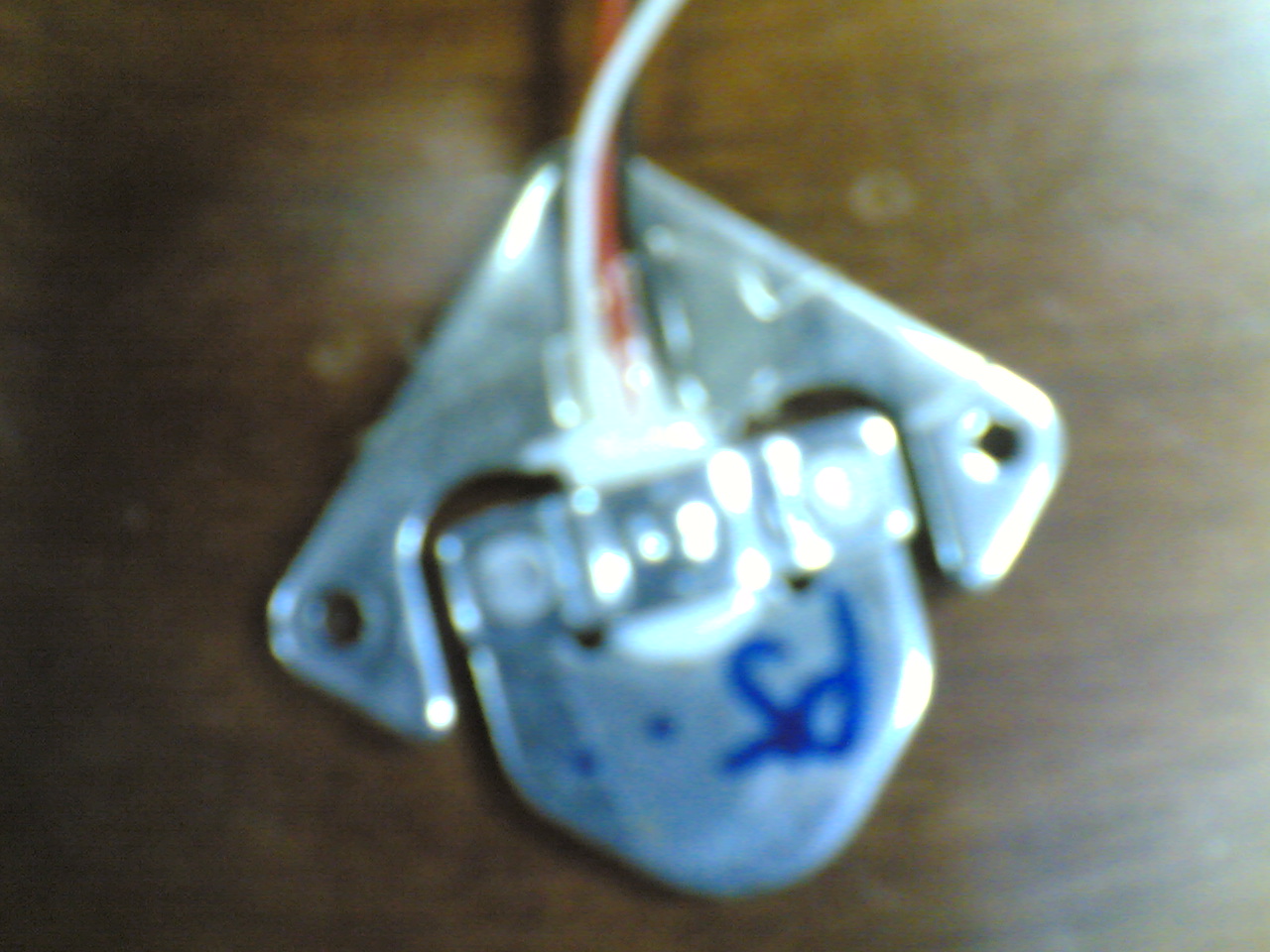

i have attached the images of load cell(3 wires red,black,white) and 20 bit ADC board.

kindly tell me how to use 3 wire load cell ............... in order to make weight machine .....
do i need to make any type of bridge...??????


Attachments

  • 26082009(001).jpg
    373.7 KB · Views: 1,426
  • 26082009(002).jpg
    239.3 KB · Views: 1,321
  • 26082009.jpg
    309 KB · Views: 2,524
  • 26082009(003).jpg
    283.7 KB · Views: 1,676
hi,:)
It looks like a load cell with an inbuilt amplifier.

Look at this pdf to give you an idea.


Attachments

  • ica1and2shmanual.pdf
    369.2 KB · Views: 2,201
