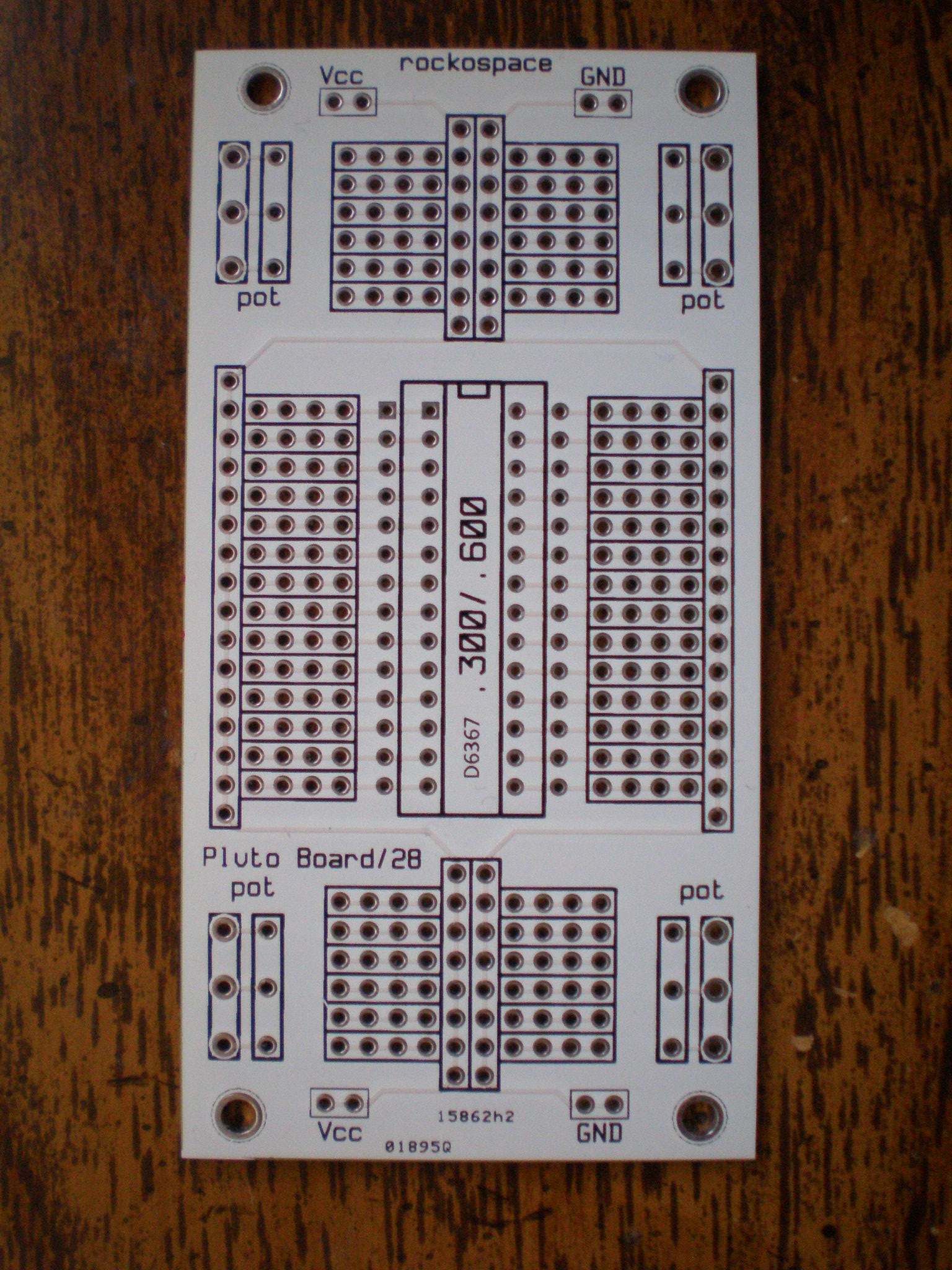

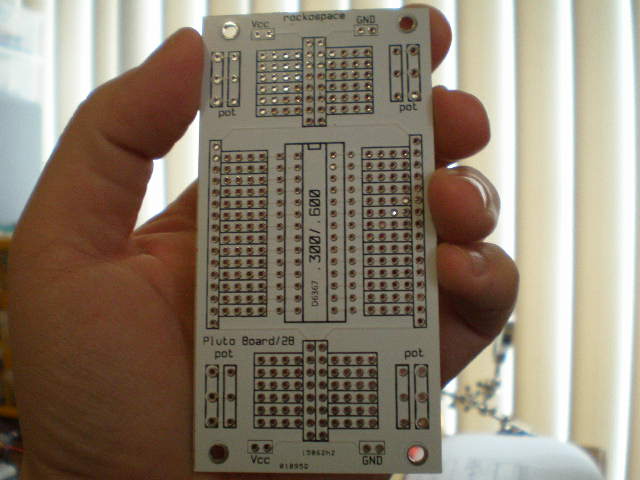

I got a bunch of these proto boards.
If anyone thinks they could use them let me know.
It'll accept 300 and 600 wide chips and has a place
for 4 pots.
It's about 4x2, about half the size of a bread board.
Are you selling them or giving them away? I can't quiet tell from the image, are those through holes plated or is it just a landing pad on the top of the board?
Do you have a photo of the bottom? I was kind of hoping the actual bus connections were on the bottom of the board, but the top looks like the traces are on top underneath the white mask.
Do you have a photo of the bottom? I was kind of hoping the actual bus connections were on the bottom of the board, but the top looks like the traces are on top underneath the white mask.
Yes the bus connections are under the white mask.
I was hoping they would be on the bottom as well
as thats how i designed it, but they ended up on the top mask.
I'll have to double check me gerber files so when I do another run they end up
on the bottom layer not the top.
This shouldn't effect how the board works though.
I set up a web blog with more info and domestic and international shipping options.
You can chose from Economy and Expedited shipping, you make your choice on
the second page after clicking "add to cart" button. **broken link removed**
