2 watt max FM transmitter circuit

Status
Not open for further replies.

JohnnBlade

New Member
audioguru

Greets, and cools to meet you, have been reading yr posts for years, but never had any questions.

Untill now,

Just yr advice, if i wanted to build a 3 stage or 4 stage fm transmitter of about 1.5 to 2 watt

Can i acomplish this using. 12v 3a power supply, and the only transistors i have available are the
Bc548, bc549, bc547, 2n222a, 2n2219a, 2n3866,
Can i reach the wattage im looking for with the transistors?



If so, which ones do you think are best for certain stages of the circuit to get max 1.8, 2 watts transmitter?


Thnx for yr time

Regards,

JB


audioguru

Well-Known Member
Most Helpful Member
Anything more than about 0.05W is illegal because it will probably interfere with REAL radio stations.
My FM transmitter has a range of 2km to a very sensitive receiver with nothing in between. Another member made it and saw the RF cops (with their antenna on top of their truck) slowly driving down his street the day after he tested it. They were probably looking for me!
I used my FM transmitter for no more than 1 hour.

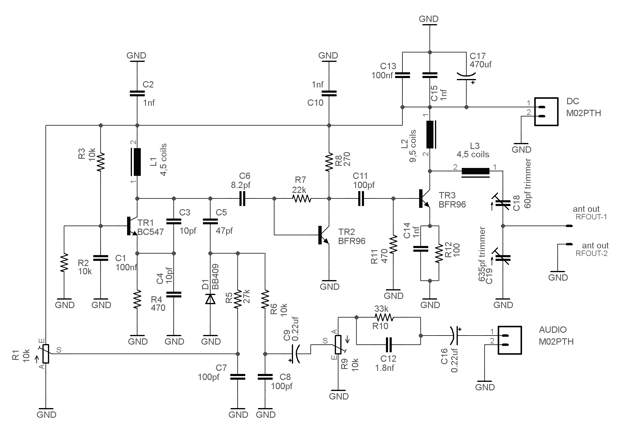

Here is a powerful FM transmitter from another site: https://www.electronics-lab.com/projects/rf/016/index.html
