µPC1188H µPC1238 datasheet?

monkeytree

New Member

• Jul 11, 2005

• #1

has anyody got th datasheet for µPC1188H and µPC1238 couldnt find any thing on google
thanks for help



hotwaterwizard

Active Member

• Jul 11, 2005

• #2

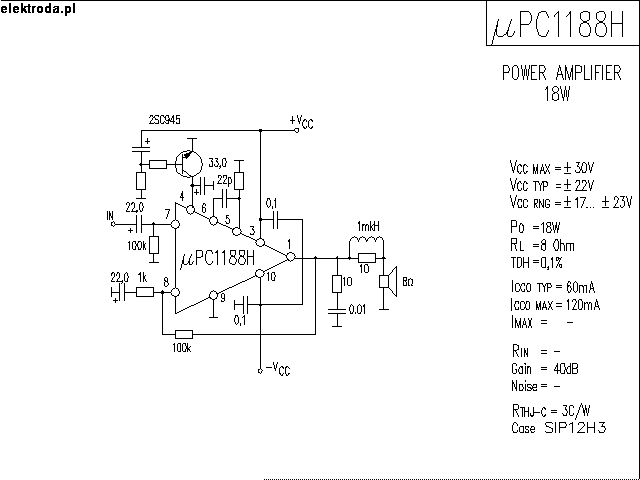

OK here we go UPC1188H



Attachments

• upc1188h_2018w.gif

  7 KB · Views: 2,495

I

instruite

New Member

• Jul 11, 2005

• #3

HI
If you searched with

µPC1188H and µPC1238

Click to expand...

you wont get anything
you have to use "u" and not "µ" at start

UPC1188H - **broken link removed**
UPC1238 - **broken link removed**



hotwaterwizard

Active Member

• Jul 11, 2005

• #4

Here we go again.

UPC 1238
10W POWER AMPLIFIER TO220 / 5P
NTE1378 TDA2006 UPC1238 10W A F
uPC1238 - ECG1378

AF Power Out, 10W, Vcc = 12V typ. TO220, 5 pin.

Pin 1: Non-inverting input
Pin 2: Inverting input
Pin 3: -Vcc
Pin 4: Output
Pin 5: +Vcc



Attachments

• nte1378.pdf

  24.5 KB · Views: 616

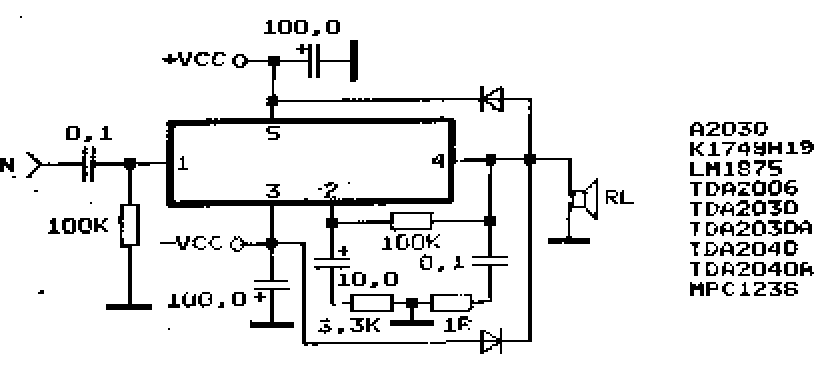

• tda2006.gif

  8 KB · Views: 5,096

hotwaterwizard

Active Member

• Jul 11, 2005

• #5

TDA2006 Datasheet



Attachments

• upc1238h_v.pdf

  185.9 KB · Views: 812
