Transmitter not going up to full FWD Power

Discussion in 'Radio and Communications' started by Alex@Marvelworx, Mar 30, 2017.

  1. Alex@Marvelworx

    Alex@Marvelworx New Member

    Joined:
    Mar 30, 2017
    Messages:
    4
    Likes:
    1
    Location:
    Zambia
    I just got into Radio Station Installation & Transmission.... On a project recently finished; the forward power is not going up to the maximum power (700 w); only going up to 470. When I did a dummy load with one antenna connected it would reach the peak, but after putting it up on a mast through a power divider and four antennas, I couldn't hit the peak power. That's just after the first day. What could the problem be?

    I am using an RVR TEX 702

    • Dislike Dislike x 1
  2. MikeMl

    MikeMl Well-Known Member Most Helpful Member

    Joined:
    Mar 17, 2009
    Messages:
    11,126
    Likes:
    564
    Location:
    AZ 86334
    What is the reflected power?

    • Like Like x 1
    • Thanks Thanks x 1
  3. ronsimpson

    ronsimpson Well-Known Member Most Helpful Member

    Joined:
    Apr 17, 2007
    Messages:
    7,361
    Likes:
    972
    Location:
    Loveland, CO USA
    ONLINE
    It really helps to get more information:
    http://www.broadcastpartners.com/website/uploads/files/products/40962.pdf
    If you can put full power into a dummy load this makes me think the transmitter is OK but:
    Some thing is wrong in the coax, divider, or antenna. Please send more information or pictures.

    Is the antenna tuned for your frequency? Not just FM band but your part of the band.

    • Thanks Thanks x 1
    • Agree Agree x 1
  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. Alex@Marvelworx

    Alex@Marvelworx New Member

    Joined:
    Mar 30, 2017
    Messages:
    4
    Likes:
    1
    Location:
    Zambia

    The forward power is at 478 while the reflected is 70

    • Disagree Disagree x 1
  6. MikeMl

    MikeMl Well-Known Member Most Helpful Member

    Joined:
    Mar 17, 2009
    Messages:
    11,126
    Likes:
    564
    Location:
    AZ 86334
    It is possible that at a SWR of 2.23, the internal protective shut-down circuit inside the transmitter is reducing the output to protect the output transistors...

    Do you have a 1kW resistive RF dummy load? If so, what output do you get if you connect the transmitter to the dummy load?

    • Thanks Thanks x 1
    • Agree Agree x 1
  7. ronsimpson

    ronsimpson Well-Known Member Most Helpful Member

    Joined:
    Apr 17, 2007
    Messages:
    7,361
    Likes:
    972
    Location:
    Loveland, CO USA
    ONLINE
    I had a small 10,000. watt transmitter years ago. I remember the reflected power was about 5 watts.
    I can not remember what the big transmitters did. Too many years.

    • Thanks Thanks x 1
  8. RadioRon

    RadioRon Well-Known Member

    Joined:
    Oct 7, 2005
    Messages:
    1,758
    Likes:
    53
    Location:
    BC, Canada
    The reflected power is a bit high in my opinion. I agree with MikeMl that your transmitter may be backing off the power to keep from overheating as a result of the SWR being less than ideal. You will have to diagnose why your SWR is only fair.

  9. davenn

    davenn Active Member

    Joined:
    Sep 27, 2010
    Messages:
    362
    Likes:
    47
    Location:
    Sydney, Australia

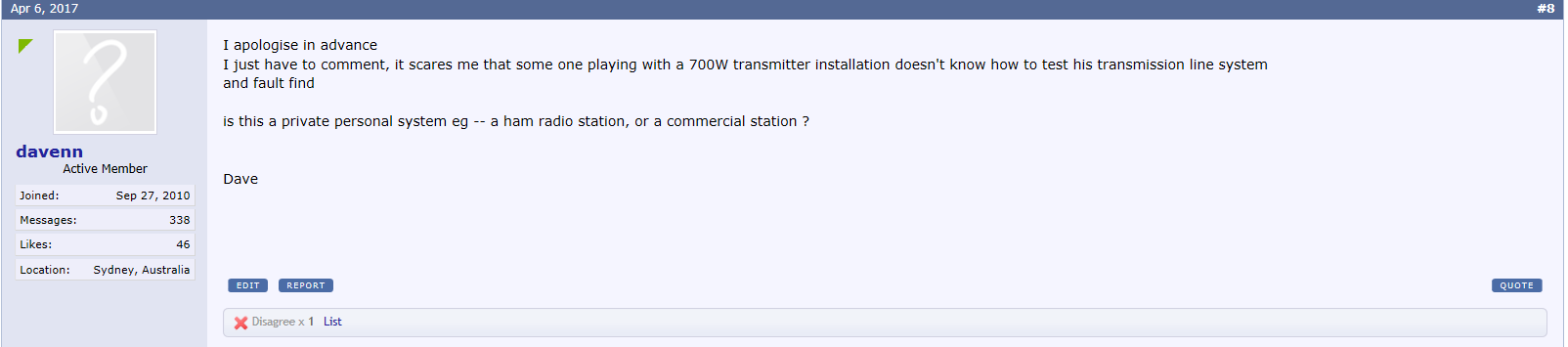

    I apologise in advance
    I just have to comment, it scares me that some one playing with a 700W transmitter installation doesn't know how to test his transmission line system
    and fault find

    is this a private personal system eg -- a ham radio station, or a commercial station ?


    Dave

    • Disagree Disagree x 1
  10. ronsimpson

    ronsimpson Well-Known Member Most Helpful Member

    Joined:
    Apr 17, 2007
    Messages:
    7,361
    Likes:
    972
    Location:
    Loveland, CO USA
    ONLINE
    If you have money you can get a radio station.
    In most countries you need a license.
    Back when I did this; you had to pass tests.

    You know he is trying to make a commercial station.

    • Agree Agree x 1
  11. davenn

    davenn Active Member

    Joined:
    Sep 27, 2010
    Messages:
    362
    Likes:
    47
    Location:
    Sydney, Australia
    you are most probably right
    Its just scary when people are doing this and they have no idea what they are doing and the dangers to be aware of

    RF currents that are producing 700W of power can do dreadful things to equipment and the human body if mis-handled, aye


    Dave

    • Disagree Disagree x 2
  12. Alex@Marvelworx

    Alex@Marvelworx New Member

    Joined:
    Mar 30, 2017
    Messages:
    4
    Likes:
    1
    Location:
    Zambia
    Thank you all for your responses... I managed to fix it.... the connector to the power divider was faulty...

    • Like Like x 1
  13. ronsimpson

    ronsimpson Well-Known Member Most Helpful Member

    Joined:
    Apr 17, 2007
    Messages:
    7,361
    Likes:
    972
    Location:
    Loveland, CO USA
    ONLINE
    Thank you for telling us. Nice to know.

    • Thanks Thanks x 1
    • Agree Agree x 1
  14. Alex@Marvelworx

    Alex@Marvelworx New Member

    Joined:
    Mar 30, 2017
    Messages:
    4
    Likes:
    1
    Location:
    Zambia
    Unfortunately though there were some remarks put up by davenn And ronsimpson, That in my opinion defeat the purpose of this forum; I think I did mention that I was a newbie.... I saw quite a lot of helpful responses by other members that offered insightful remarks (the likes Mikemi & Dave) of whom when they understand a question tackle the problem not attack and criticize the one that asked. I had not divulged any information as to where I am doing it from but surprisingly, someone already had assumed the where... And how. Which I thought was of no help at all... Just a mere case of "trolling" ( bored let me go through the forum and see who to castigate; coz they are a newbie)...

    Next time please... If you don't understand how to deal with a certain problem one has presented (or you don't wanna help out) please leave it to those that do understand; or that want to share their knowledge.

    Thanks again to those that offered positive remarks... Please do keep it up

    • Agree Agree x 1
    • Disagree Disagree x 1
  15. atferrari

    atferrari Well-Known Member

    Joined:
    Oct 8, 2003
    Messages:
    2,816
    Likes:
    121
    Location:
    Buenos Aires - Argentina
    Hola Alex,

    In this (and other forums) I tend to watch more than contributing. Let us admit that for someone who is dealing with such a power in the final stage, your question sounds frightening, much more if you qualify yourself as a newbie. You cannot avoid that since, as you only know how limited is your knowledge on the matter in question, those contributing here know what is at stake.

    Do not complain and be objective while enjoying having your problem solved.

    • Agree Agree x 2
  16. davenn

    davenn Active Member

    Joined:
    Sep 27, 2010
    Messages:
    362
    Likes:
    47
    Location:
    Sydney, Australia
    you couldn't be further from the truth
    I was VERY WORRIED about you and your safety dealing with high transmitter powers and that you obviously didn't have any idea what you were doing
    This was a VERY dangerous situation for some one who admitted to being a newbie

    Dave

  17. davenn

    davenn Active Member

    Joined:
    Sep 27, 2010
    Messages:
    362
    Likes:
    47
    Location:
    Sydney, Australia

    Alex@Marvelworx .... VERY silly to disagree with the truth

    Dave

  18. davenn

    davenn Active Member

    Joined:
    Sep 27, 2010
    Messages:
    362
    Likes:
    47
    Location:
    Sydney, Australia
    Sorry @MikeMI

    wrong post tagged, have changed rating

  19. MikeMl

    MikeMl Well-Known Member Most Helpful Member

    Joined:
    Mar 17, 2009
    Messages:
    11,126
    Likes:
    564
    Location:
    AZ 86334
    Watch out Dave, that scary current is sqrt(700/50) = 3.7A

  20. davenn

    davenn Active Member

    Joined:
    Sep 27, 2010
    Messages:
    362
    Likes:
    47
    Location:
    Sydney, Australia
    I have had nasty RF burns on fingers from a 10W 144MHz TX
    700W is going to be much worse

  21. JimB

    JimB Super Moderator Most Helpful Member

    Joined:
    Sep 11, 2004
    Messages:
    6,390
    Likes:
    591
    Location:
    Peterhead, Scotland
    Been there done that!

    Never done that, I still have all my fingers and hands and arms.

    JimB
