Discussion in 'Buy, Sell and Trade' started by AtomSoft, Nov 2, 2013.

  1. AtomSoft

    AtomSoft Well-Known Member

    Joined:
    Feb 7, 2008
    Messages:
    5,670
    Likes:
    41
    Location:
    Brooklyn, NY US

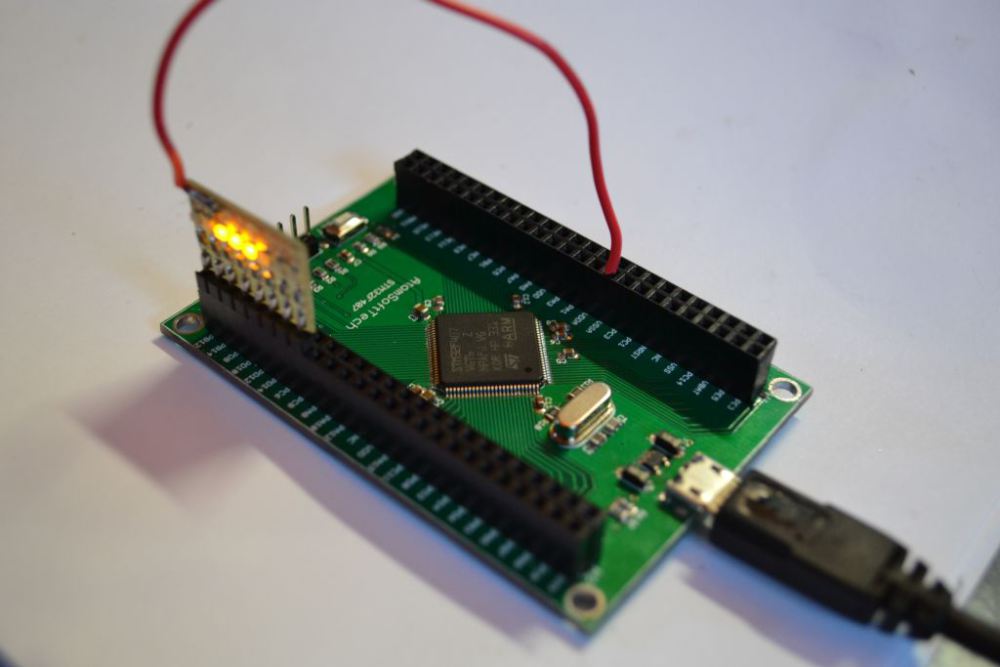

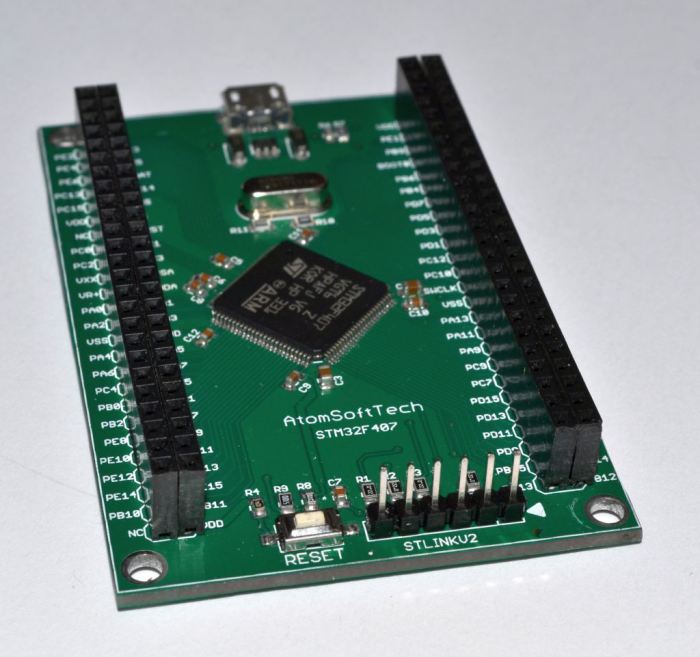

    I have 2 of these boards. Made by me from scratch. They have a reset button, all pins broken out and a STLINK2 port for programming/debugging. Powered via Micro USB (5v to 3.3v reg) or via 3.3v pin (vdd). Its basically a STM32F4-DISCOVERY without all those pins being wasted. So you have even more GPIO. Its also smaller but same form

    Any interest?

    Price $12 each (free s/h in USA) Board & Schematic files in eagle (PDF if needed)

    Edited: Added another image.


    Attached Files:

  2. Little Ghostman

    Little Ghostman Well-Known Member Most Helpful Member

    Joined:
    Jan 7, 2011
    Messages:
    3,702
    Likes:
    426
    Location:
    SCOTLAND
    very nice layout! wish i was that good

  3. Shinee

    Shinee New Member

    Joined:
    Nov 25, 2013
    Messages:
    2
    Likes:
    0
    Location:
    shenzhen GuangDong China

    I just check your photo, and PDF, We have these parts that you required, but i am not sure whether you still need ?
