Simple 12F683 program in Oshonsoft Basic

Discussion in 'Oshonsoft' started by camerart, Jul 7, 2017.

  1. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,368
    Likes:
    11
    Location:
    Dorset UK.
    Hi,
    I would like to make a simple circuit for a PIC demonstration.
    Here's one from a modified program here in early 2014.
    I would like to have two inputs, one Analogue and one Digital switching two LEDs.
    How do I set-up for the digital input?
    Cheers, Camerart.


    Attached Files:

  2. ericgibbs

    ericgibbs Well-Known Member Most Helpful Member

    Joined:
    Jan 4, 2007
    Messages:
    21,220
    Likes:
    644
    Location:
    Ex Yorks' Hants UK
    hi C,
    Look at the PDF for each of these register settings
    I have a program on my ETO blog that uses these settings, if you want to try it, it is the pulse gen project.
    E
    ADCON0 = %00000001
    ANSEL = %00000001
    CMCON0 = %00000111
    OPTION_REG = %10000111
    TRISIO = %00001001

    EDIT:

    The ETO blog entry for this has disappeared.????
    Copy here:
    https://forum.allaboutcircuits.com/...-gen-2-phase-non-overlapping-clock.654/unread

  3. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,368
    Likes:
    11
    Location:
    Dorset UK.
    Hi E,
    Couldn't get that one to work, but this one does: http://www.electro-tech-online.com/threads/adding-a-ds-to-12f683-in-oshonsoft.139854/page-4
    #62
    I'll filter out what I don't need.

    Thanks, C.

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. ericgibbs

    ericgibbs Well-Known Member Most Helpful Member

    Joined:
    Jan 4, 2007
    Messages:
    21,220
    Likes:
    644
    Location:
    Ex Yorks' Hants UK

    hi,
    I have just checked that download and it works perfectly.??
    When you compiled it, did you show the micro view on Oshonsoft and adjust the analog voltage level to make it run.??
    E


    Last edited: Jul 7, 2017
  6. sagor1

    sagor1 Member

    Joined:
    Dec 11, 2014
    Messages:
    52
    Likes:
    2
    I have a simple 12F675 program that reads an analog input 0-4V, and outputs one of two LEDs. It also monitors a digital input to output one of two digital pins depending on the same voltage value.
    It should be very similar for the 12F683 except you do not have to do the "OSCCAL" assembly routine, as there is no OSCCAL in the 12F683. Also, the initial configuration bits may be different for your chip.

    CODE:
    Code (text):

    Define CONFIG = 0x3194
    'Processor 12F675, internal 4Mhz clock

    Define CLOCK_FREQUENCY = 4.0

    'Program To check Icom band voltage/2 (now 0-4V) and check for 6M band
    'If 6M selected, then any "send" (PTT) output for amplifier
    'is routed to second "send" output for 6M
    'Otherwise, all others go to regular HF "send"
    'Note that send outputs are active high, needs 2N7000 to conduct
    'to ground as PTT/Relay/Amp output to ground.
    'Or, can power any relay taking less than 25Ma at 5V
    'Need 10k pullup on GP3 (insend) input.

    'GP0 is analog input, use precision 1% resistors
    'to divide voltage by 1/2 (0-4V)
    '6M band is between 1.2 to 2.0V and divide by 2 (count 30 to 51 for BYTE)
    '(count 122 to 204 for WORD, if using WORD for "i")
    'Set range check to one or two digits tighter bandwidth

    ConfigPin GP0 = Input
    ConfigPin GP3 = Input

    ConfigPin GP1 = Output
    ConfigPin GP2 = Output
    ConfigPin GP4 = Output
    ConfigPin GP5 = Output

    AllDigital
    'Alldigital will set CMCON to 0x07
    'Will reset AN0 as analog later in ANSEL


    Symbol hfled = GP1
    Symbol vhfled = GP2
    Symbol hfsend = GP4
    Symbol vhfsend = GP5
    Symbol insend = GP3


    ANSEL = 0x31  '30 = internal clock, 1 is GP0 = AN0
    ADCON0.VCFG = 0  'use VDD as reference (default anyway)


    Dim i As Word

    'Following is to read osccal value from 3FFF
    'and insert into OSCCAL register
    'RETLW instruction is 34xx where xx is value
    'OSCCAL is not critical unless using software UART

    ASM:        bsf STATUS,RP0 ;bank 1
    ASM:        call 3ffh ;get the cal value
    ASM:        movwf OSCCAL ;calibrate
    ASM:        bcf STATUS,RP0 ;bank 0


    hfsend = 0  'HF output =0
    vhfsend = 0  'VHF output = 0
    vhfled = 0
    hfled = 1  'Default to HF LED on
    WPU.0 = 0

    loop:

    'Main read loop. Takes about 88uS with BYTE
    'but around 145uS with WORD variable (and word limits)

    Adcin 0, i

    Select Case i
       Case < 122, > 205  'HF
       hfled = 1
       vhfled = 0
       Case Else  'VHF (6M)
       hfled = 0
       vhfled = 1
    EndSelect

    If insend = 1 Then Goto loop  'No action on send pin, go back and read over and over

    'if we get here, send is set to zero (grounded). Time to output a pin
    'No debounce done, assume input is solid state from radio
    'If there is bounce, we will bounce along with it...
     'Determine action based on which LED is on

    If hfled = 1 Then
           hfsend = 1
           vhfsend = 0
       Else
           hfsend = 0
           vhfsend = 1
    Endif

    loop2:
    If insend = 0 Then Goto loop2 'loop forever until send pin clears (goes high)
    'Send clear, clear send outputs
    hfsend = 0
    vhfsend = 0
    Goto loop


    Last edited: Jul 8, 2017
  7. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,368
    Likes:
    11
    Location:
    Dorset UK.
    Hi E,
    You are correct of course. I did figure out that i had to adjust the voltage level, but I couldn't see it working, and was puzzled by the LOOP. On trying again, it was working.
    C.

  8. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,368
    Likes:
    11
    Location:
    Dorset UK.
    Hi S,
    Thanks for your code, however, it has ASM included, which I can't read.
    C

  9. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,368
    Likes:
    11
    Location:
    Dorset UK.
    Hi,

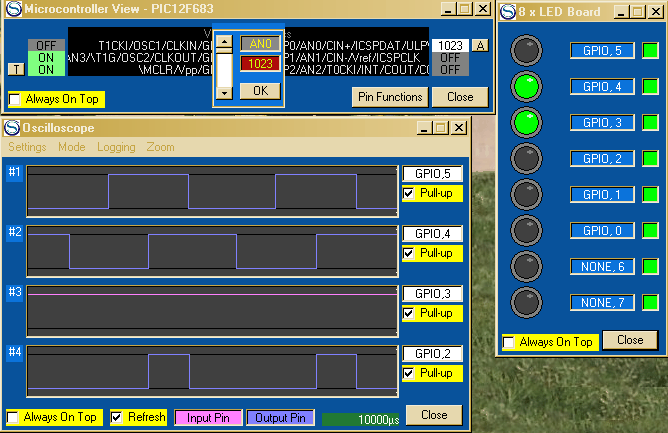

    From the code posted, I have made up a simple program, which simulates and has a Digital and an analog IN which each switch on different LEDs.
    This will be used to demonstrate what a little PIC is able to do. I will make a circuit, and perhaps add on something that will illustrate the Analog a bit better, perhaps a motor speed control.
    Thanks for all the help.
    C.


    Attached Files:

  10. sagor1

    sagor1 Member

    Joined:
    Dec 11, 2014
    Messages:
    52
    Likes:
    2
    As I said in the post, ignore the ASM, you only need it for the 12F675. You can actually delete it from the code.
    I was merely posting the 675 code as an example of an analog in, digital in, and four digital outs. If you remove the ASM code, re-set the configuration bits, the code should run in the 12F683 as well as the 12F675...
    It's just an example of code that runs for me, and how I handle the digital/analog configurations more so than what the actual code does...

    Last edited: Jul 8, 2017
    • Agree Agree x 1
  11. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,368
    Likes:
    11
    Location:
    Dorset UK.
    Hi S,
    Apologies! I need to read something a couple of times, before it's READ. I see it now, thanks.
    C.

  12. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,368
    Likes:
    11
    Location:
    Dorset UK.
    Hi,
    1/ Can anyone tell me why GP4 flashes and doesn't stay on constantly when GP1 is pressed?
    2/ I'm trying to change the speed that an LED flashes using the simplest way. Does the Analog section of the LOOP look ok to do that. It's not clear in simulation!
    C.


    Attached Files:

  13. ericgibbs

    ericgibbs Well-Known Member Most Helpful Member

    Joined:
    Jan 4, 2007
    Messages:
    21,220
    Likes:
    644
    Location:
    Ex Yorks' Hants UK
    hi C,
    Checking your code it does not cover the correct conditions for GP1 =1 = GP4 ON.
    E

    EDIT:
    Try this.
    loop:

    If digitalin = 1 Then
    yled = 1
    Else
    yled = 0
    ''' Endif
    Adcin 0, analogin
    WaitMs 50
    rled = 1
    WaitMs analogin
    rled = 0
    analogin = 1023 - analogin
    WaitMs analogin
    Endif



    Goto loop

    Last edited: Jul 9, 2017
  14. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,368
    Likes:
    11
    Location:
    Dorset UK.
    Hi E,
    Your code changed things, but there's something fishy. As soon as Analog is set while digital is set, then they both flash. (analog is expected to flash)
    I tried this 'below', and as long as they are used independently, then they work ok. Analogue needed >0 adding so it will stop working even when not set.

    loop:
    If digitalin = 1 Then
    yled = 1
    Else
    yled = 0
    Endif

    Adcin 0, analogin
    WaitMs 50
    If analogin > 0 Then
    rled = 1
    WaitMs analogin
    rled = 0
    analogin = 1023 - analogin
    WaitMs analogin
    Endif

    Goto loop

    Thanks, C.

    Last edited: Jul 9, 2017
  15. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,368
    Likes:
    11
    Location:
    Dorset UK.
    Hi,
    This simulates, and I know it's not the best programming, but I'm in a bit of a rush, as I have to make a new circuit, and then a video explaining PICs in their simplest form before Friday. (The intention is to encourage others to have a go, and not frighten them off) The video will include a quick look at programming, and I'll show them the simulation (Although I will explain that Oshonsoft is perhaps not the best way to go)
    There will then be talks on Arduinos and Picaxe etc.
    Thanks for all of the help.
    C.

  16. ericgibbs

    ericgibbs Well-Known Member Most Helpful Member

    Joined:
    Jan 4, 2007
    Messages:
    21,220
    Likes:
    644
    Location:
    Ex Yorks' Hants UK
    Morning C,
    I would say the WaitMs 50 is redundant.
    Another possible trivial situation, what if analogin cannot be set to 0, the LED will never be able set to OFF.
    Most pots have some end resistance, so I would suggest If analogin > 10 Then

    Please post your vid when ready.
    E

  17. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,368
    Likes:
    11
    Location:
    Dorset UK.
    Morning E,
    All ok.
    What do you think I should say about Oshonsoft? I don't want to run it down, and remember I like it, but I don't want to encourage others to get into the difficulties I've had either.
    C.

  18. ericgibbs

    ericgibbs Well-Known Member Most Helpful Member

    Joined:
    Jan 4, 2007
    Messages:
    21,220
    Likes:
    644
    Location:
    Ex Yorks' Hants UK
    hi C,
    I would say that for entry level to PIC's the Basic and in particular the Simulation models are a good starting point, but the IDE is limited to earlier versions of PIC's.
    Most programmers have tried/used Basic compilers in their time.

    It should be understood that most versions of the 'C' language compilers are very similar to Basic compilers, so the transition for the learner, from Oshonsoft Basic to 'C' is not too difficult.

    Most of my early commercial programming was done using binary switches, after that, machine code.
    When assemblers became available, I used assembly language programming until I retired.

    E

  19. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,368
    Likes:
    11
    Location:
    Dorset UK.
    Hi E,
    The audience will have some Arduinoists amongst them, I'm hoping to show that PICs are just a different family, and are capable of similar results, plus the idea that a 'shield' and plug in extra circuits aren't always necessary.

    The circuit works. I had to turn up the threshold from >10 to >50 to get it working.

    How can I post a video on this site? Is it as simple as upload a video file?
    C.

  20. ericgibbs

    ericgibbs Well-Known Member Most Helpful Member

    Joined:
    Jan 4, 2007
    Messages:
    21,220
    Likes:
    644
    Location:
    Ex Yorks' Hants UK
    hi C,
    I think the point you could make is that a PIC is just an IC and it requires associated circuit in order for it to work , an Arduino is an ATMEGA IC mounted on a PCB that has its associated circuitry.
    You could do a simple comparative costing of the two options for your LED demo.

    IMHO you cannot really compare the two.

    Ref the Vid, most vids I have seen are linked to another host site.

    E

  21. camerart

    camerart Active Member

    Joined:
    Jun 12, 2008
    Messages:
    1,368
    Likes:
    11
    Location:
    Dorset UK.
    Hi E,
    I don't know much about Arduinos, but from conversations I've had, an ATMEGA IC can be programmed and removed from the Arduino programmer, then added into a circuit, just as the PICs do, but I'm not sure too many people know that because they mostly come as a circuit.
    As for price comparison, I think they come out very similar, although on a quick check the ATtiny is $2.00 where the 12F683 is 50P. [On second check I find that the ATtiny is made by Microchip £1.50. I bet they are the same as the 12F, but marketed for Arduinoists.
    I will also point out that there are many other makes of Micro-controller.

    Right let's make a movie!
    Are you ready for your close up:angelic:
    C.
