Signal at 22.73 MHz?

Discussion in 'Radio and Communications' started by Mikebits, May 6, 2016.

  1. Mikebits

    Mikebits Well-Known Member

    Joined:
    May 24, 2008
    Messages:
    6,214
    Likes:
    174
    Location:
    San Diego, Ca
    I was trying to track down some source of noise on my very old HP721A power supply. I noticed some RF signals on my DC output around 22 MHz.

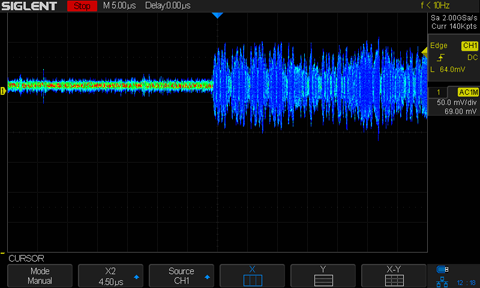

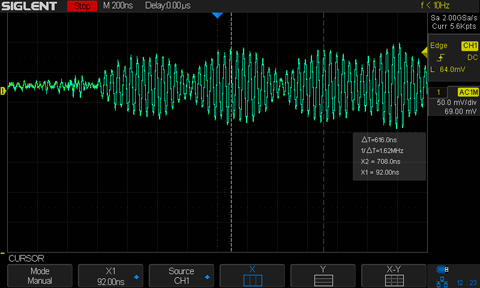

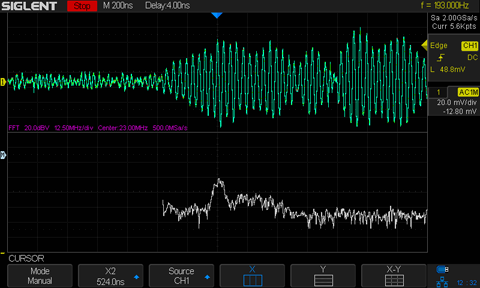

    Do you know what this frequency is used for. From a frequency alloc chart it say aeronautical. I am surprised aircraft would use such a low freq, does anyone have more info. Here are some scope screen shots:

    SDS00002.png SDS00004.png SDS00005.png SDS00007.png

  2. bountyhunter

    bountyhunter Well-Known Member

    Joined:
    Jul 17, 2009
    Messages:
    1,560
    Likes:
    81
    If it's a switcher, it could be ringing from the magnetics when the switch turns off.

  3. Mikebits

    Mikebits Well-Known Member

    Joined:
    May 24, 2008
    Messages:
    6,214
    Likes:
    174
    Location:
    San Diego, Ca
    The supply is a linear and this signal is clearly an amplitude modulated signal. It is not originating from my equipment.

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. JimB

    JimB Super Moderator Most Helpful Member

    Joined:
    Sep 11, 2004
    Messages:
    6,321
    Likes:
    585
    Location:
    Peterhead, Scotland

    Normal aircraft comms is in the VHF range 110 to 135 MHz (ish), but for ocean crossings they use HF when they are out of VHF range.

    Cribbed from this document:
    http://www.theairlinepilots.com/forumarchive/areaprocedures/natops/natclearance.pdf

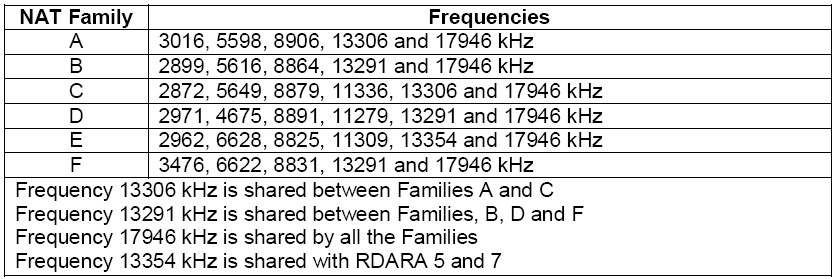

    We have this list of HF frequencies used for North Atlantic crossings:


    However, looking at your scope traces I am not convinced that what you are seeing is Amplitude Modulated voice transmissions.

    Also, I nearly forgot, but on HF, aircraft use SSB not AM.

    JimB

  6. Mikebits

    Mikebits Well-Known Member

    Joined:
    May 24, 2008
    Messages:
    6,214
    Likes:
    174
    Location:
    San Diego, Ca
    I don't think it is voice transmission either as the modulation rate looks to be around ~1-2 Mhz.

    I suppose it could be SSB, it would look similar to AM wouldn't it?

  7. JimB

    JimB Super Moderator Most Helpful Member

    Joined:
    Sep 11, 2004
    Messages:
    6,321
    Likes:
    585
    Location:
    Peterhead, Scotland
    Yes, except that in the absence of a modulating signal there is no carrier.

    That is what I thought looking at your screen shots.

    Do you see this signal with just a piece of wire connected to the scope?

    JimB

  8. MikeMl

    MikeMl Well-Known Member Most Helpful Member

    Joined:
    Mar 17, 2009
    Messages:
    11,041
    Likes:
    541
    Location:
    AZ 86334
    Hearing a harmonic of a switcher on 22.730MHz. Most audible as a buzz when using AM detection. It is so incoherent that CW,USB or LSB just cause an increase in the background noise.

    The HF propagation has been bad recently, so not hearing any DX above ~17m (18.1MHz).

    Likely local in your area..., and I doubt you are hearing the same signal I am....

  9. bountyhunter

    bountyhunter Well-Known Member

    Joined:
    Jul 17, 2009
    Messages:
    1,560
    Likes:
    81
    Your statement said:

    "I was trying to track down some source of noise on my very old HP721A power supply."

    Which sounded like you thought it was coming from the power supply.

    In my career, I have seen many signals like that and the first thing I do is turn off the power to my circuits.... if the "noise" is still there, it's pickup from external sources.

    The output of a power supply has a fairly high impedance to signals in that frequency range so it is possible that the signal is being picked up by external leads.

  10. Mikebits

    Mikebits Well-Known Member

    Joined:
    May 24, 2008
    Messages:
    6,214
    Likes:
    174
    Location:
    San Diego, Ca
    Sorry I guess I worded things a bit off. The noise I was tracking down was of a different nature, and I just happened upon the 22MHz signal. It is not present all the time. It comes and goes.

  11. Mikebits

    Mikebits Well-Known Member

    Joined:
    May 24, 2008
    Messages:
    6,214
    Likes:
    174
    Location:
    San Diego, Ca
    I wish I had one of the SDR dongles right about now. I been toying with getting one just for giggles.

  12. MikeMl

    MikeMl Well-Known Member Most Helpful Member

    Joined:
    Mar 17, 2009
    Messages:
    11,041
    Likes:
    541
    Location:
    AZ 86334
    I have a re-purposed TV dongle, an RFSpace SDR-iq, and an Airspy SDR receivers. I am using SDR# and SpectraVue with all three. There are reviews of all three at eHam.com

    If I was buying one today, I would likely get one of these.

  13. Mikebits

    Mikebits Well-Known Member

    Joined:
    May 24, 2008
    Messages:
    6,214
    Likes:
    174
    Location:
    San Diego, Ca
    Thanks Mike, the specs on that one are impressive. 12 bit AtoD, 5th order filter, and the BW is amazing. Boy things sure have changed since I got into this business. Kinda makes me feel old :)
