Robot Efficiency & other Robot stuff

Discussion in 'Robotics & Mechatronics' started by williB, Oct 6, 2004.

  1. williB

    williB New Member

    Joined:
    Aug 30, 2004
    Messages:
    2,217
    Likes:
    3
    Location:
    New Jersey
    would it be possible to store the energy from the reverse EMF of a stepper, as it is running.
    i was just wondering if i could save power in battery powered robot with a very large electrolytic capacitor connected across the main power supply.

  2. Optikon

    Optikon New Member

    Joined:
    Sep 23, 2003
    Messages:
    1,729
    Likes:
    2
    Location:
    Cleveland, OH, U.S.A.
    Re: Robot Efficiency

    yes, one form of it is called regenerative braking. A capacitor across mains supply will not save any power. Capacitors just store energy.
    To make the system effective, you will have to get that energy back into the battery. When the vehicle is moving but the drive is not driving the motors, the motors can act like generators and that energy can be recovered but it is more complicated than just using a capacitor.

  3. williB

    williB New Member

    Joined:
    Aug 30, 2004
    Messages:
    2,217
    Likes:
    3
    Location:
    New Jersey
    ok but when u turn off a coil in the stepper,, and redirect the back EMF with diodes twards the positive supply terminal,, where does it go..
    i can only assume that it is stored in the powersupply caps..
    so that is what i had in mind with the battery setup..

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. williB

    williB New Member

    Joined:
    Aug 30, 2004
    Messages:
    2,217
    Likes:
    3
    Location:
    New Jersey

    Ive just got my robot moving for the first time..last night..
    i am using two steppers ,one for each back wheel.
    the two steppers are connected together..ie driven by the same drive transistors..i will drive them seperately after i get four more IRF 510's
    i realized thet i had to run the second one in reverse so i made the proper connections
    something very strange happened ..
    When all power was off and i turned one wheel ..the other wheel turned in the same direction..!!
    so i turned it the other way .. the other wheel turned in the other direction!!...hmm..sort of an electronic mini car differential

  6. Nigel Goodwin

    Nigel Goodwin Super Moderator Most Helpful Member

    Joined:
    Nov 17, 2003
    Messages:
    39,199
    Likes:
    640
    Location:
    Derbyshire, UK
    An electric motor works backwards as a generator, steppers do this as well as conventional motors - EPE did an article on a batteryless torch using a stepper motor the other year.

  7. williB

    williB New Member

    Joined:
    Aug 30, 2004
    Messages:
    2,217
    Likes:
    3
    Location:
    New Jersey
    i had a neighbor that called a flashlight a torch.
    over here , a torch is what the croud was using to find Frankenstein at night.. :shock: :wink: :wink:

  8. Optikon

    Optikon New Member

    Joined:
    Sep 23, 2003
    Messages:
    1,729
    Likes:
    2
    Location:
    Cleveland, OH, U.S.A.
    yes... HA HA... I always smile when I see "torch".. Frankenstein is precisely the image that pops into my mind! LOL
    :D

  9. williB

    williB New Member

    Joined:
    Aug 30, 2004
    Messages:
    2,217
    Likes:
    3
    Location:
    New Jersey
    Yeah mine too !! :lol: :lol:

  10. Nigel Goodwin

    Nigel Goodwin Super Moderator Most Helpful Member

    Joined:
    Nov 17, 2003
    Messages:
    39,199
    Likes:
    640
    Location:
    Derbyshire, UK
    The English are far too civilised for such primative thoughts :lol:

  11. williB

    williB New Member

    Joined:
    Aug 30, 2004
    Messages:
    2,217
    Likes:
    3
    Location:
    New Jersey
    but are they good spellers :shock: :wink:

  12. Nigel Goodwin

    Nigel Goodwin Super Moderator Most Helpful Member

    Joined:
    Nov 17, 2003
    Messages:
    39,199
    Likes:
    640
    Location:
    Derbyshire, UK
    Not me anyway 8)

  13. williB

    williB New Member

    Joined:
    Aug 30, 2004
    Messages:
    2,217
    Likes:
    3
    Location:
    New Jersey
  14. Nigel Goodwin

    Nigel Goodwin Super Moderator Most Helpful Member

    Joined:
    Nov 17, 2003
    Messages:
    39,199
    Likes:
    640
    Location:
    Derbyshire, UK
    Why not just use the details for the PICKit 1 on MicroChips website?, it gives the circuit, source code for the 745, and source code for the VB program to run on the PC.

    Basically both the PICKit 1 and the PIC Net design use the code from the original 745 application note.

  15. williB

    williB New Member

    Joined:
    Aug 30, 2004
    Messages:
    2,217
    Likes:
    3
    Location:
    New Jersey

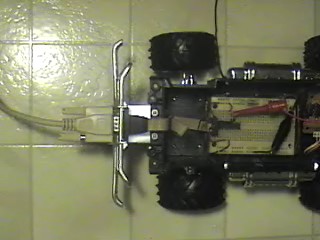

    I thought that i would show yall my robot car .


    Attached Files:

  16. williB

    williB New Member

    Joined:
    Aug 30, 2004
    Messages:
    2,217
    Likes:
    3
    Location:
    New Jersey
    this board takes the signals from the PC .. later on from the Pic..
    and drives the steppers..


    Attached Files:

    • 6.jpg
      File size:
      20.7 KB
      Views:
      4,113
  17. williB

    williB New Member

    Joined:
    Aug 30, 2004
    Messages:
    2,217
    Likes:
    3
    Location:
    New Jersey
    I think i should tie the FET inputs lightly to ground...lol. Just in case..
    oh a 330 uF capicitor across the power supply eliminates the spikes, and does'nt round the edges too much..

  18. williB

    williB New Member

    Joined:
    Aug 30, 2004
    Messages:
    2,217
    Likes:
    3
    Location:
    New Jersey

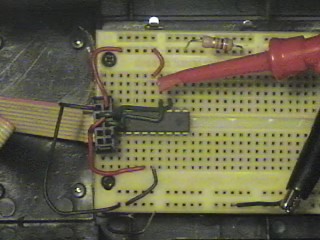

    this is my new setup.. that is the ICSP cable on the front..cool huh..
    my next step is to drive the steppers with just the pic..


    Attached Files:

  19. williB

    williB New Member

    Joined:
    Aug 30, 2004
    Messages:
    2,217
    Likes:
    3
    Location:
    New Jersey
  20. williB

    williB New Member

    Joined:
    Aug 30, 2004
    Messages:
    2,217
    Likes:
    3
    Location:
    New Jersey
  21. bloody-orc

    bloody-orc New Member

    Joined:
    Aug 23, 2004
    Messages:
    723
    Likes:
    4
    Location:
    Estonia
    hey what steppers did you use and how much current\voltage do they take?
    i´m thinking of mooving my own robot with steppers but when i put my stepper running on the table without any wheels or anything then it seems that the stepper is to weak :( i have a 5V\0.5A stepper and controller is uln2003a and pic
