Discussion in 'Electronic Projects Design/Ideas/Reviews' started by pebe, Dec 23, 2002.

  1. Phasor

    Phasor Member

    Joined:
    Aug 14, 2002
    Messages:
    703
    Likes:
    0
    Location:
    Sydney, Australia
    Just an interesting note - the third resistor down, in the middle, appears to be of no consequence. If you remove it, the resistance remains the same.

    EDIT: Sorry bogdanfirst, I didn't see, you already mentioned it.

  2. kinjalgp

    kinjalgp Active Member

    Joined:
    Oct 28, 2002
    Messages:
    1,851
    Likes:
    3
    Location:
    INDIA/USA
    The Lower Middle resistor was the thing I wanted you all to observe. It has no use in the circuit. Good observations. CHEERS!

  3. bogdanfirst

    bogdanfirst New Member

    Joined:
    Dec 13, 2002
    Messages:
    1,310
    Likes:
    1
    Location:
    Ramnicu Valcea, Romania
    another puzzle
    each segment has the resistance R


    Attached Files:

    • 1.jpg
      File size:
      19.1 KB
      Views:
      437
  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. bogdanfirst

    bogdanfirst New Member

    Joined:
    Dec 13, 2002
    Messages:
    1,310
    Likes:
    1
    Location:
    Ramnicu Valcea, Romania

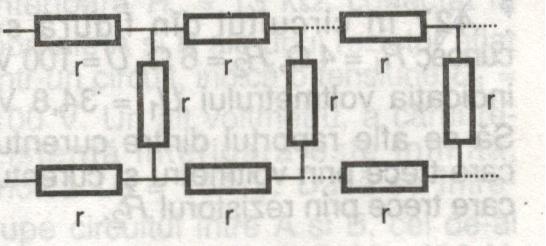

    and another one.....this one is an infinite network


    Attached Files:

    • 2.jpg
      File size:
      26.4 KB
      Views:
      444
