Program to flash memory

Discussion in 'Microcontrollers' started by elecLear78, Jul 22, 2017.

  1. elecLear78

    elecLear78 Member

    Joined:
    Jul 16, 2013
    Messages:
    227
    Likes:
    1
    Location:
    india
    I have written the following program to program flash memory with data. I have tried to simulate the code before actually flashing the code but i am not seeing the data as expected. Please help.

    Code (text):

    #include<xc.h>
    /*
     * Program to flash double word
     * family:dspic33evgm256
     */
    _FOSCSEL(FNOSC_FRC & IESO_OFF);
    _FOSC(FCKSM_CSECMD & OSCIOFNC_OFF & POSCMD_XT);
    _FWDT(FWDTEN_OFF)
    _FICD(ICS_PGD2)

    #define SET                             (1u)
    #define PM_ROW   __attribute__((space(prog), aligned(2)))
    const PM_ROW data_in_flash[10];
    unsigned int nvmAdru;
    unsigned int nvmAdr;
    unsigned int nvmAdrPageAligned;
    unsigned int tableOffset;
    unsigned int data[10]={0x1111,0x2222, 0x3333,0x4444, 0x5555, 0x6666, 0x7777, 0x8888, 0x9999, 0xaaaaa};
    unsigned int *pdata=data;
    int main(int argc , char *argv[])
    {

     PLLFBD=38;              // M=40
     CLKDIVbits.PLLPOST=1;   // N2=4
     CLKDIVbits.PLLPRE=0;    // N1=2

    // Initiate Clock Switch to Primary Oscillator with PLL (NOSC=0b011)
    __builtin_write_OSCCONH(0x03);
    __builtin_write_OSCCONL(OSCCON | 0x01);
    // Wait for Clock switch to occur
    while (OSCCONbits.COSC!= 0b011);
    // Wait for PLL to locke
    while (OSCCONbits.LOCK!= 1);
        /*step1  ---> Let the destination address to be loaded*/
        nvmAdru=__builtin_tblpage(&data_in_flash[0]);
       nvmAdr=__builtin_tbloffset(&data_in_flash[0]);
       NVMADRU = nvmAdru;
        NVMADR = nvmAdr;
    /*step2: Load the two words into latches*/
        TBLPAG = 0xFA;
        tableOffset= 0x0000;
        __builtin_tblwtl(tableOffset,*pdata);
        __builtin_tblwth(tableOffset,0x00);
        tableOffset +=2;
        pdata++;
        __builtin_tblwtl(tableOffset,*pdata);
        __builtin_tblwth(tableOffset,0x00);
        /* Setup NVMCON for word programming */
         NVMCON = 0x4001;
        /*step3: with interrupts disabled write the key sequence */
        __builtin_write_NVM();
        /* set the WR bit it will start programming operation */
        NVMCONbits.WR = SET;
        Nop();
        Nop();
        while(1);
        return 0;
    }

    When i simulated i got the following details in the variables section


    So i am assuming that the variable data_in_flash is placed at the address 0x0103B4. Am i correct? Then i opened the program memory window and i see the following information

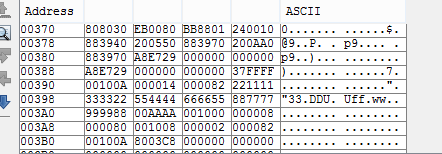

    the data seem to match but not in proper order with what ever i am trying to write, but does not seem to be writing in the address i am expecting. Please help.
