Pinout of ATL A2188

Status
Not open for further replies.
atferrari

atferrari

Well-Known Member
Most Helpful Member

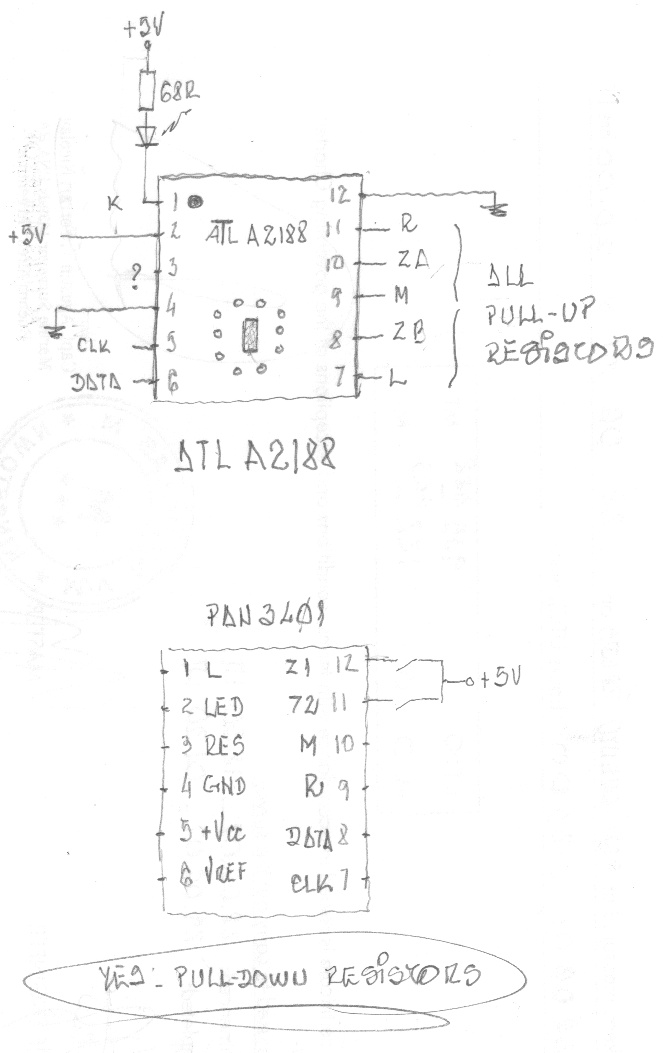

There is no datasheet to be found in the Web for the ATL A2188, used in PS/2 optical mice.

I managed to identify all but pin 3 which seems not used in actual circuits (at least in those that I could check).

For anyone interested in the future, here is the pinout.


Attachments

  • ATL A2188 pinout.png
    ATL A2188 pinout.png
    100.7 KB · Views: 1,494
