    I'm developing the PCB design of a circuit using PROTEUS. But I can't find the footprint of a generic green LED in its library. Can anyone help me with a solution?

  2. absf

    absf Active Member

    Joined:
    Jun 18, 2012
    Messages:
    206
    Likes:
    27
    Location:
    Malaysia
    In my proteus v7.8, the only footprint I have for generic LED has the generic name "LED" in the library.

    It is for 5mm LED and doesnt care about the colors. It's just a circle with pin name "A" and "K".

    If you want to have different footprint e.g. for the SMD LED, you have to create your own or search for later libraries.

    Allen

  3. RESHMA

    RESHMA New Member

    Joined:
    Mar 22, 2017
    Messages:
    2
    Likes:
    0
    Could you please attach a snapshot of the footprint that u have?

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. DerStrom8

    DerStrom8 Super Moderator Most Helpful Member

    Joined:
    Aug 9, 2010
    Messages:
    5,484
    Likes:
    503
    Location:
    Vermont (GMT-5:00)

    Create your own libraries. It will save you a LOT of time and frustration later.

  6. absf

    absf Active Member

    Joined:
    Jun 18, 2012
    Messages:
    206
    Likes:
    27
    Location:
    Malaysia

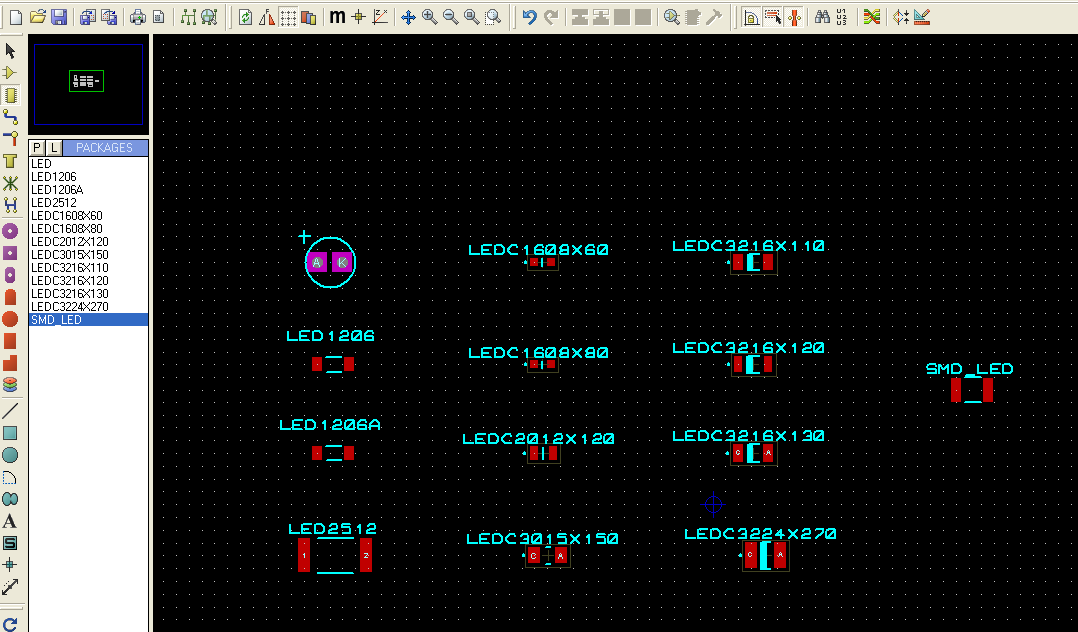

    These are all the footprints that I have in my proteus.

    LED FOOTPRINTS.PNG

  7. Spudboy488

    Spudboy488 New Member

    Joined:
    Dec 6, 2016
    Messages:
    6
    Likes:
    0
    The schematic is just a diagram of the circuit. The PCB is the physical representation of the circuit. You need to pick a physical LED that you will solder to your finished PCB and select the footprint (from any of the ones shown or make your own) that will fit the component. Any one of these shown can be considered a "generic" LED footprint. If you're just playing around with the system and don't plan on actually making a PCB, you can use any of them.
