Discussion in 'Circuit Simulation & PCB Design' started by ronv, Jun 8, 2014.

  1. MrDEB

    MrDEB Active Member

    Joined:
    Apr 16, 2007
    Messages:
    4,364
    Likes:
    22
    I use Diptrace and asked for the free upgrade to 500 pins.
    very nice easy program to design circuit boards for the hobbyist. A professional such as Jon uses Eagle.
    As for having boards made, I have used several different board houses and Elecrow is far and away the best choice IMO.
    Just export your Diptrace Gerber files and the n/c drill file. compress and send to board house.
    Diptrace isn't perfect as it has some small work around querks. Example,making a new component w/ footprint, you save the component then close the program then reopen it.

  2. aardyvarky

    aardyvarky Member

    Joined:
    Nov 24, 2016
    Messages:
    71
    Likes:
    1
    Location:
    Wales, UK
    Superdat - If you ask DIPtrace very nicely (assure them it's for personal use only - it is for me) they'll upgrade you to 500 pins. That does not include vias so have any number of them. Personally I hate vias and try to do without, so have set the prog not to use them. My only complaint with DIPtrace is that I can't seem to force a s/s board... maybe there's something I'm missing. Anyhow, I can make it s/s easily enough. Have now added lots of components with their respective patterns, so am really pleased with it. Like I said before, I'm used to AutoCAD so I get on well with it.

    MrDEB - sorry I replied before I saw your post.

    Last edited: Mar 6, 2017
  3. Superdat

    Superdat Member

    Joined:
    Mar 3, 2015
    Messages:
    114
    Likes:
    3
    Hi Mr Deb and Aardvark,
    I might try for the free 500, although I've only run out of holes once. The bit I didn't find intuitive was libraries.
    I ususally know what I'm trying to make so I don't bother with a schematic, I just go straight to PCB layout. I usually make my own patterns, it's often quicker than trying to find them (if they exist) in the supplied or downloaded libraries. I either make them directly in the PCB layout, then copy to a library or use Pattern Editor.
    Aardvark, when you say you can't force a s/s board, are you refering to the PCB layout? The default is always d/s but unless you select the other side it will remain on one side i.e. s/s.
    The exception is SMD components which by default go on the copper side as they should.
    Vias are useful for linking up to the other side of a d/s board. If you use through holes with d/s, when you print out the other side, you can leave out the pins (e.g. a MicroP) on the side that the IC is mounted. Same apples to any top mounted through hole components. The vias remain on both sides.
    I make my own boards using toner transfer, I can't get them as small as professional ones but fine for me :) 1mm is about the smallest trace I attempt.
    I don't do much smd stuff, voltage regs, 1206 caps and resistors, anything smaller I can't see let alone solder!

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. aardyvarky

    aardyvarky Member

    Joined:
    Nov 24, 2016
    Messages:
    71
    Likes:
    1
    Location:
    Wales, UK

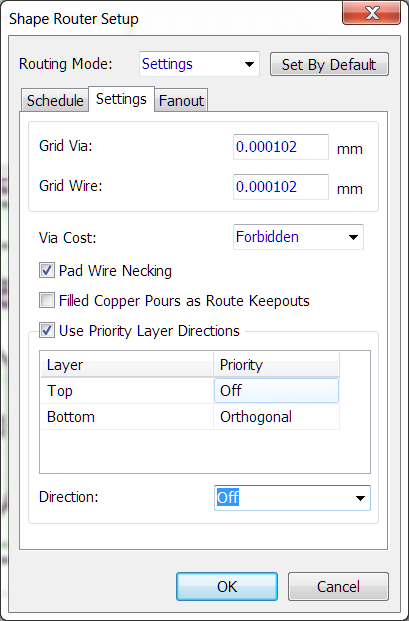

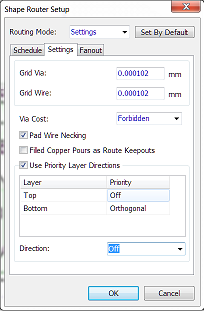

    I've just figured out how to force s/s.
    Route>Autorouter Setup>Settings>layer section lower down
    Choose either Top or Bottom and set Priority to "Off"
    One day I will have to use vias I'm sure hehe.


    Attached Files:

  6. Superdat

    Superdat Member

    Joined:
    Mar 3, 2015
    Messages:
    114
    Likes:
    3
    Just received my DipTrace upgrade to 500, thanks for letting me know.
    Just need to think of something big now :)
