Number Fun: 17-bit BIN2BCD

Discussion in 'Microcontrollers' started by jpanhalt, Oct 23, 2017.

  1. jpanhalt

    jpanhalt Well-Known Member Most Helpful Member

    Joined:
    Jun 21, 2006
    Messages:
    5,978
    Likes:
    510
    Location:
    Cleveland, OH, USA
    Sunday afternoons in Cleveland can be spent watching the Browns lose (0-7) or doing something just for fun. I chose the latter.

    PicList has several programs for converting radix. One I particularly like for 16-bit to BCD is attributed to John Payson with refinements contributed by Scott Dattalo and others (http://www.piclist.com/techref/microchip/math/radix/b2bu-16b5d.htm ). Mike Mansheim took that approach and applied it to 17-bit binary; however, the code he provides is mostly in C and compiles to about 85 instructions (http://www.piclist.com/techref/microchip/math/radix/b2bu-17b5d.htm ). My "need" was prompted by a counter routine that prints a 5-digit decimal result. Of course, the display poops out at 65535, and it would be nice to scroll up to 99999.

    I spent yesterday coding Mansheim's variation in MPASM along the lines of the Payson code, which combines isolation of the nibbles with calculation of the 5 registers needed: ones, tens, hund, thou, and tenK. My code works out to about 43 instructions prior to the "normalization" routine. Total Tcy for 0x1869F (dec 99999) was 312 Tcy.

    I thought I would present it here for comments and improvements. Note that there ate two options for "DoA1". Option 1 is probably a little easier to understand, but destroys the binL register. Option 2 is from Payson/Dattalo and preserves the binL register. Steps are identical. One needs simple to comment out a "bra" to switch between the options. The majority of time is spent in "normalization" and suggestions for that wouldbe most helpful.

    Regards, John

    EDIT: I am not real happy with the way I handled a4 and may take another look at it.


    Attached Files:

    Last edited: Oct 23, 2017
  2. Ian Rogers

    Ian Rogers Super Moderator Most Helpful Member

    Joined:
    Mar 28, 2011
    Messages:
    9,242
    Likes:
    911
    Location:
    Rochdale UK
    That's the same one Nigel uses in his tutorials...

  3. jpanhalt

    jpanhalt Well-Known Member Most Helpful Member

    Joined:
    Jun 21, 2006
    Messages:
    5,978
    Likes:
    510
    Location:
    Cleveland, OH, USA
    Sorry, I was not aware he did the 17-bit version. Which tutorial number is it?

    John

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. Ian Rogers

    Ian Rogers Super Moderator Most Helpful Member

    Joined:
    Mar 28, 2011
    Messages:
    9,242
    Likes:
    911
    Location:
    Rochdale UK

    Tutorial 11... But! He only uses 16 bit... However, its virtually the same code.. His code states its from piclist!!

  6. jpanhalt

    jpanhalt Well-Known Member Most Helpful Member

    Joined:
    Jun 21, 2006
    Messages:
    5,978
    Likes:
    510
    Location:
    Cleveland, OH, USA
    Coding those formulas will have superficial similarities, like a lot of addwf's and a few rotates. However, the 17-bit formulas are different (e.g., Payson's 16-bit formula in PicList uses a constant for the tenK). The tenK register appears in every digit-formula (e.g, ones, tens, etc.) and the odd multipliers cause a small complexity.

    In any event, I could not find an already coded version for 17-bits in Assembly -- at least not a shorter one. It was something for the afternoon, and maybe others will find it helpful. It was all done on a spread sheet and just fell together once the first nibble was set. There are at least 5 other ways to do it. ;)

    I have thought about submitting it to PicList to close the loop on Mansheim's work, but that list seems pretty dead, and I didn't want one of the clever contributors there -- if still alive -- to point out an obvious way to reduce 4 instructions to just one. I will be giving more thought to the tenK instructions and hope some others here will see a more compact solution.

    John

  7. Les Jones

    Les Jones Well-Known Member

    Joined:
    May 15, 2015
    Messages:
    1,451
    Likes:
    189
    Location:
    Lancashire UK
    Hi John,
    Here is some code I found on the web many years ago. (I cant remeber where.) to convert 24 bit binary to BCD. It has less instructions than the code you posted but may take longer to execute as it loops.

    Code (text):

    ;Variables

                   ;       rBin 4 Bytes
    rBin       EQU   0x3D       ;       MSB
    rBin1       EQU   0x3E
    rBin2       EQU   0x3F
    rBin3       EQU   0x40

                   ;       rBCD 4 Bytes
    rBCD       EQU   0x41       ;       MSB
    rBCD1       EQU   0x42
    rBCD2       EQU   0x43
    rBCD3       EQU   0x44       ;       LSB




    BintoBCD
               BCF   STATUS,C
               MOVLW   D'24'       ; 24-Bits
               MOVWF   rBitCnt       ; Make cycle counter
               CLRF   rBCD       ; Clear result area
               CLRF   rBCD+1       ;
               CLRF   rBCD+2       ;
               CLRF   rBCD+3       ;

    Loop           MOVLW   rBCD       ;Pointer to lowest BCD location
               MOVWF   FSR
               MOVLW   4
               MOVWF   rCnt

    BintoBCD1
               MOVLW   0x33
               ADDWF   INDF,F       ; Add 0x33 to rBCD, rBCD1,rBCD2, or rBCD3 depending on the number of times through the loop.
               BTFSC   INDF,3       ; top bit of low nibble ?  (If the original nibble was 5 or greater after adding 3
                           ; will cause the top bit of nibble to be set)
               ANDLW   0xF0       ; Mask for bits 4 - 7  ( The "3" in the top nibble.)
               BTFSC   INDF,7       ; top bit of high nibble ? (If the original nibble was 5 or greater after adding 3
                           ; will cause the top bit of nibble to be set)
               ANDLW   0x0F       ; Mask for bits 0 - 3
               SUBWF   INDF,F       ;
               INCF   FSR,F       ; Inc pointer to next byte
               DECFSZ   rCnt,F       ; Decrement counter  (Count to 4)
               GOTO   BintoBCD1   ; four times round this loop

               RLF   rBin+2,F   ; Get another bit
               RLF   rBin+1,F   ;
               RLF   rBin+0,F   ;
               RLF   rBCD+3,F   ; Put it into BCD
               RLF   rBCD+2,F   ;
               RLF   rBCD+1,F   ;
               RLF   rBCD+0,F   ;
               DECFSZ   rBitCnt,F   ; All done? (Count to 24)
               GOTO   Loop       ; No, loop  (24 times round this loop)
               return


    I have used this code many times.

    Les.

    • Like Like x 1
  8. jpanhalt

    jpanhalt Well-Known Member Most Helpful Member

    Joined:
    Jun 21, 2006
    Messages:
    5,978
    Likes:
    510
    Location:
    Cleveland, OH, USA
    Hi Les,

    Thanks for the addition. I will certainly save it. Never hurts to have more than one arrow in a quiver . There are some pretty short codes on PicList too, but loops can be time killers. For example, the "normalization" routine in what I posted looks short on paper but takes more than 6 times as much time as the first part.

    John

  9. Pommie

    Pommie Well-Known Member Most Helpful Member

    Joined:
    Mar 18, 2005
    Messages:
    10,080
    Likes:
    326
    Location:
    Brisbane Australia
    Les,

    I think the code you posted has the wonderful name of the Double Dabble algorithm.

    John,
    Could you post the spreadsheet as well? Edit, I see the equations are in the code. Thanks.

    Mike.
    P.S. not got time now to go through this now but will in the coming days.

    Last edited: Oct 23, 2017
  10. jpanhalt

    jpanhalt Well-Known Member Most Helpful Member

    Joined:
    Jun 21, 2006
    Messages:
    5,978
    Likes:
    510
    Location:
    Cleveland, OH, USA
    Pommie

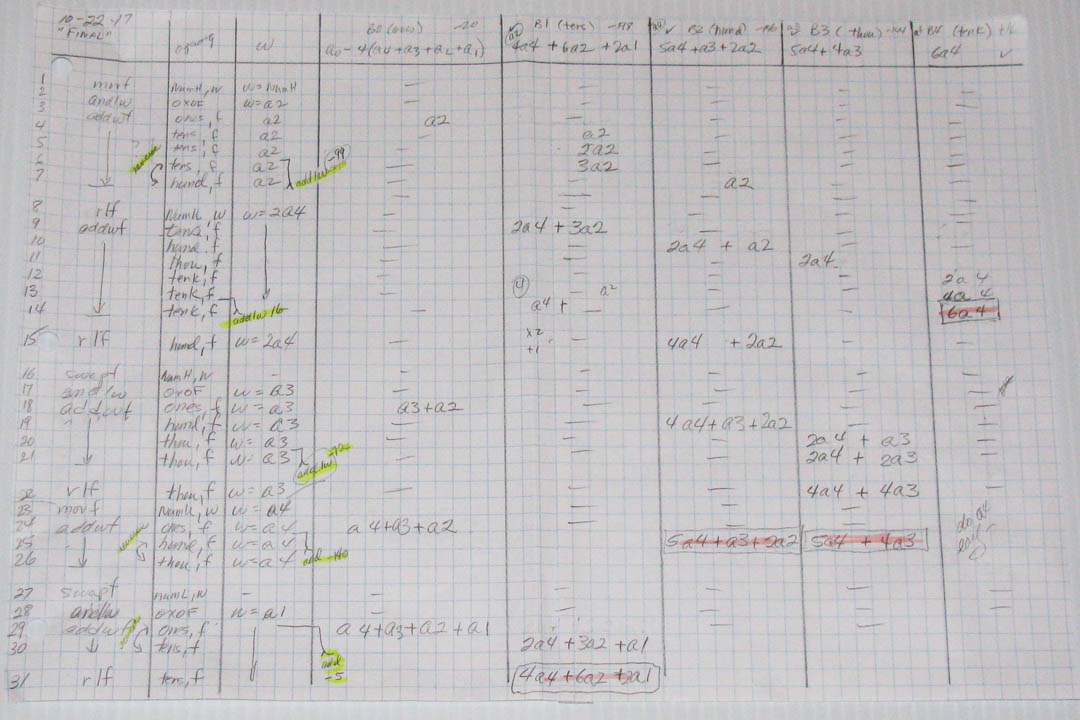

    Since you asked (before seeing the formulas), here's the spreadsheet:
    For something like this I revert to the good old days when you could doodle while thinking. I also like to put it down for a day or two, them come back fresh. I will play with it a little more today. Since the register in those formulas that supplies tenK is either 1 or 0, I may try to incorporate that in cleaning up the routine.

    Thanks for the interest.

    John

  11. jpanhalt

    jpanhalt Well-Known Member Most Helpful Member

    Joined:
    Jun 21, 2006
    Messages:
    5,978
    Likes:
    510
    Location:
    Cleveland, OH, USA
    Here's a revised version of the code in my original post (ETO_3). It is about one instruction shorter (41 Tcy to "Normalize") and integrates the a4 manipulations. Also attached is a version (ETO_5) that tests for a4=0. If true, the code runs a little quicker (35 Tcy to "Normalize"), but there are a few more instructions. When a4>0, it is one Tcy longer than ETO_3.

    John

    Edit: Fixed ETO_3


    Attached Files:

    Last edited: Oct 24, 2017
  12. jpanhalt

    jpanhalt Well-Known Member Most Helpful Member

    Joined:
    Jun 21, 2006
    Messages:
    5,978
    Likes:
    510
    Location:
    Cleveland, OH, USA
    UPDATE
    Some mornings you get out of bed; others you wake up. Today was the latter. Rather than trying to trim the code, I took a look at Mansheim's equations and realized they were calculated assuming a4 (tenK) was ≤15. Of course that is true for the other a_i's, including a4, but a4 has another constraint. It is defined as ≤1. Duh. It really pays to take off a few days.

    I recalculated the b_i equations (i.e., equations for ones, tens, etc.) plugged in the new negation constants, and trimmed about 100 Tcy from the calculation. Old constants gave a little over 300 Tcy; new constants seem to be slightly less than 200 Tcy. Sorting is still 41 Tcy and normalization is reduced to ≤160 Tcy.

    New code has not been exhaustively tested. It was tested for counts 1 to 256 by 1, counts by 500, and a few arbitrary numbers like 0x16789 (d92041) and 0x1869F (99999).

    On the code that is posted, I added some pound signs, #####, to highlight the changes.

    John


    Attached Files:

  13. jpanhalt

    jpanhalt Well-Known Member Most Helpful Member

    Joined:
    Jun 21, 2006
    Messages:
    5,978
    Likes:
    510
    Location:
    Cleveland, OH, USA
    Playing with this equation is a great way to waste time, and 3:30 PM was just not coming fast enough (Penn State v. Ohio State).
    So, realizing I had changed the additions and only one of the "magic" negating numbers gets doubled, I calculated a newer set that reduced the number of cycles in normalization. That trimmed 10 Tcy from the whole process.

    The new "magic" numbers are:
    ;ones= -20 , carry=2 (same as original)
    ;tens= -128, carry=13(-64x2)
    ;hund= -57 , carry=7
    ;thou= -73 , carry=8
    ;tenK= +8

    Simply plug those into version 3.1 (Post #11) appropriately and it should work.

    John

  14. BobW

    BobW Active Member

    Joined:
    Apr 28, 2010
    Messages:
    515
    Likes:
    53
    Location:
    Canada
    Interesting series of posts. I hadn't been aware of this method of binary to BCD conversion. My previous projects used the Double Dabble method which I ripped off of a Microchip appnote. So, it's interesting to see this approach. I'd be interested in seeing a speed comparison between your code and the one posted by Les.

    The Double Dabble method results in packed BCD, while the polynomial method in your code has one byte per digit. So that is another consideration when choosing a method.

    For completeness, there is a third common method which involves successive divisions by ten to chop off one digit at a time. I was stuck inside the house today because of miserable windy rainy weather, so I thought I'd try my hand at that approach. It's sort of working now, but I need to do more testing and clean up the code before I post it. I have no idea how efficient it is at this point.

  15. jpanhalt

    jpanhalt Well-Known Member Most Helpful Member

    Joined:
    Jun 21, 2006
    Messages:
    5,978
    Likes:
    510
    Location:
    Cleveland, OH, USA
    Hi Bob,

    I have not run Les' code. It is for 24 bit, so any comparison might be a bit biased against it. I did run a version of Double Dabble from Microchip's forum that was posted by 1and0 here: http://www.microchip.com/forums/m853241.aspx

    Run time for a 16-bit was 344 Tcy, but that also includes doing the ascii offset. My notes indicate that the same number with the Payson polynomial was 183 Tcy. As seems to be typical, looping methods favor shorter code but longer run time. I suspect successive subtractions would follow that pattern.

    Going back to the original Payson method, I think that can be tweaked a little by changing the negative offsets as I did in post #12. Here's a table showing what I did for that post:


    I would look first at the offset used for the 10's, which probably affects the later ones as well.

    Regards, John

    NB: I was a little worried about the offset used for b2 as it is the only instance in which the absolute value of the offset is not greater than the maximum value of the digit's polynomial with carry. I evaluated several inputs to test whether that caused an error, and they all worked fine. Of course the polynomial is negative and the apparent "inadequate" compensation for carry is taken care of in b3 .

    Last edited: Oct 31, 2017
  16. BobW

    BobW Active Member

    Joined:
    Apr 28, 2010
    Messages:
    515
    Likes:
    53
    Location:
    Canada
    Thanks for the additional info. I didn't initially see the theoretical writeup at the bottom of the PIClist page, and when I tried the link to Scott Dattalo's page I got a 404 error. So I was initially confused about how this works. Then after a bit of googling I found a page by Douglas Jones describing the method:
    http://homepage.divms.uiowa.edu/~jones/bcd/decimal.html

    However, he didn't make use of the negative constants, primarily because he was coding in C and was able to do the integer ÷10 and mod 10 directly. That part of the writeup doesn't provide any new info except that near the bottom of his page, he discusses the idea of alternative radices which may be of interest and could possibly give some speed improvement:
    http://homepage.divms.uiowa.edu/~jones/bcd/decimal.html#radices

    Meanwhile, I'm plugging away at my modulo 10 routine. BTW, I have an ulterior motive for this: I need a fast divide by 10 routine for a project at work. So, this is a good test bed for the algorithm.

  17. jpanhalt

    jpanhalt Well-Known Member Most Helpful Member

    Joined:
    Jun 21, 2006
    Messages:
    5,978
    Likes:
    510
    Location:
    Cleveland, OH, USA
    Thanks for the additional links.

    Wouldn't the one's polynominal for the BCD conversion give you modulo 10? These are the fastest routines I found, particularly if you tweak them just a little. Will you be able to post your results?

    John

  18. BobW

    BobW Active Member

    Joined:
    Apr 28, 2010
    Messages:
    515
    Likes:
    53
    Location:
    Canada
    Good point. I'll have another look at the one's polynomial code.

    I should be able to post my code tomorrow. I started out testing it on a spreadsheet, and then a binary math simulation program which I find easier to use when testing out basic concepts. That part is done, and it's working. I've just finished translating it into PIC code, but haven't run it yet. It's getting late. So, I'll continue tomorrow.

    I'm not really expecting my code to be terribly efficient, but it will be interesting to see how it compares.

  19. jpanhalt

    jpanhalt Well-Known Member Most Helpful Member

    Joined:
    Jun 21, 2006
    Messages:
    5,978
    Likes:
    510
    Location:
    Cleveland, OH, USA
    How many bits do you need if for?

    John

  20. jpanhalt

    jpanhalt Well-Known Member Most Helpful Member

    Joined:
    Jun 21, 2006
    Messages:
    5,978
    Likes:
    510
    Location:
    Cleveland, OH, USA
    Hi Bob,

    Had nothing to do, so I pretty much cut and pasted to get this for modulo 10:
    Code (MPASM):

    Mod10
         swapf     binH,w    ;w=16a2+a3
         addwf     binH,w    ;w=16a2+16a3+a2+a3 (carry in DC)
         andlw     0x0F      ;w=a3+a2 (carry in DC)
         btfsc     STATUS,1
         addlw     0x10
         addlw     0x05
         movwf     binH      ;binH=a3+a2+5
         swapf     binL,w
         andlw     0x0F
         addwf     binH
         movf      binL,w
         andlw     0x0F      ;w=a0
         movwf     binL
         lslf      binH,f
         lslf      binH,w
         subwf     binL,f
         movlw     0x0A
    _Mod10
         addwf     binL,f
         btfss     STATUS,0
         bra       _Mod10
         bra       Done      ;result is in binL

    Number is entered in binH:L and result is in binL. I believe it can be done without the additional register using one of the swap register routines, but that will take at least 0ne more instruction. Run time for 0xFFFF was 92 Tcy, 0x000A was the shortest at 20 Tcy, and several other tests were in the mid-40 Tcy's.

    John

    Edit: Avoided need for extra register without swapping and with no more steps.

    Last edited: Oct 31, 2017
  21. BobW

    BobW Active Member

    Joined:
    Apr 28, 2010
    Messages:
    515
    Likes:
    53
    Location:
    Canada
    John,
    I got my code working and it's faster than I expected. Though yours is still significantly faster. The speed is dependent on the number of digits because it performs one iteration of the outer loop per digit. If the input value is 0, it takes 18 cycles. Otherwise, it's roughly 100 cycles per digit. A value of 99999 takes 568 cycles. Since it requires 3 registers anyway, there was no real performance hit by allowing more than 17 bit numbers. The largest number that it will handle is 655359 which is 10*2^16-1. The reason for the odd upper limit is due to some left and right shifting that goes on in the calculation. There needs to be extra bits so there's room to move. Converting 655359 takes 726 cycles.

    The primary motive behind this was to test my divide by 10 algorithm. It's based on the idea that division by a fixed constant can be done by summing an infinite series. For division by ten it is:



    (Dunno why that came out so big. :wideyed:)

    Though it looks overly complicated, it only requires a single multiplication by 3 (1 shift and one add), and then all subsequent operations involve shifting and adding the number to itself. Since each successive term decreases by a factor of 16, no more than 4 terms are required to divide a 24 bit number to the necessary precision. The least significant bits of the division contain a fractional value (n mod 10)/32 rather than a remainder. So, that has to be extracted and then multiplied by 10 to get the decimal digit value. So, the inner (div10) loop will execute a maximum of 4 times, and the outer DigitLoop will execute a maximum of 6 times (once per decimal digit).

    Code (asm):

    ;  Binary to BCD conversion routine

        radix dec

    ;  variables
        cblock  0x20
        x0,x1,x2,y0,y1,y2
        digit0,digit1,digit2,digit3,digit4,digit5
        endc

    Bin2BCD
        ;On entry the binary number is in registers y0 (LSB), y1, y2 (MSB)
        ; maximum allowable binary value is 10*2^16-1 = 655359
        clrf digit0 ;initialize the digits to zero
        clrf digit1
        clrf digit2
        clrf digit3
        clrf digit4
        clrf digit5
        movlw Digit0 ; Initialize the digit array pointer
        movwf fsr0L
        clrf fsr0H
        movf y2,w
        iorwf y1,w
    DigitLoop
    ; This outer loop iterates once per actual decimal digit. So, if the
    ; decimal result is only one digit, the loop executes only once.
    ; For an input value of zero it won't execute at all.
    ;
    ; Do While y0<>0 or y1<>0 or y2<>0
        iorwf y0,w
        btfsc status,z
        return
        incfsz y0,f ; increment y to compensate for series truncation error
        goto Div10
        incfsz y1,f
        goto Div10
        incf y2,f
    ;******************
    Div10
    ; Divide by 10 using the infinite series method
    ; On entry the dividend is in registers y0..y2
    ; On completion the quotient is in y0..y2 with y0 containing part integer and part fraction
    ; Registers x0, x1, x2 are temporary registers holding the 3 byte series term(i)
        lslf y0,w  ; multiply dividend by 3
        movwf x0 ;copy shifted y to x
        rlf y1,w
        movwf x1
        rlf y2,w
        movwf x2
        movf x0,w  ;add x to y
        addwf y0,f
        movf x1,w
        addwfc y1,f
        movf x2,w
        addwfc y2,f
        lslf y0,f ;now shift y left 3 positions
        rlf y1,f
        rlf y2,f
        lslf y0,f
        rlf y1,f
        rlf y2,f
        lslf y0,f
        rlf y1,f
        rlf y2,f
        movf y0,w  ;copy y back to x
        movwf x0
        movf y1,w
        movwf x1
        movf y2,w
        movwf x2
    Div10Loop
    ; This inner loop never takes more than 4 iterations.
    ; Number of iterations is proportional to magnitude of y.
    ; Do While x2<>0 or x1<>0
        iorwf x1,w
        btfsc status,z
        goto Div10Done
        ;shift x0..x2 right 4 places
        lsrf x2,f
        rrf x1,f
        rrf x0,f
        lsrf x2,f
        rrf x1,f
        rrf x0,f
        lsrf x2,f
        rrf x1,f
        rrf x0,f
        lsrf x2,f
        rrf x1,f
        rrf x0,f
        movf x0,w ;add x to y
        addwf y0,f
        movf x1,w
        addwfc y1,f
        movf x2,w
        addwfc y2,f
        goto Div10Loop ; Wend
    Div10Done
    ; Quotient is in y0..y2 (y0 has fractional part; y1,y2 have integer part)
    ;****************** End of Divide by 10 routine
    ;
    ; extract current raw BCD digit from y0 and multiply by 10
        lsrf y0,w
        movwf x0
        lsrf x0,w
        movwf x1
        lsrf x1,w
        addwf x0,f  ; digit(i) = high nibble of x0
        swapf x0,w
        andlw 0x0F
        movwi fsr0++ ;save digit in output register
        movf y1,w ; divide y by 2^8 for next iteration
        movwf y0
        movf y2,w
        movwf y1
        clrf y2
        goto DigitLoop  ; rinse and repeat
        end

    Edit: I revised the code, optimizing it a bit by removing a few redundant instructions. Conversion of 99999 is down to 513 cycles. Conversion of 655359 is down to 662 cycles.

    Last edited: Nov 3, 2017

Share This Page
