My PIC developement board is done almost

Status
Not open for further replies.

MrDEB

Well-Known Member

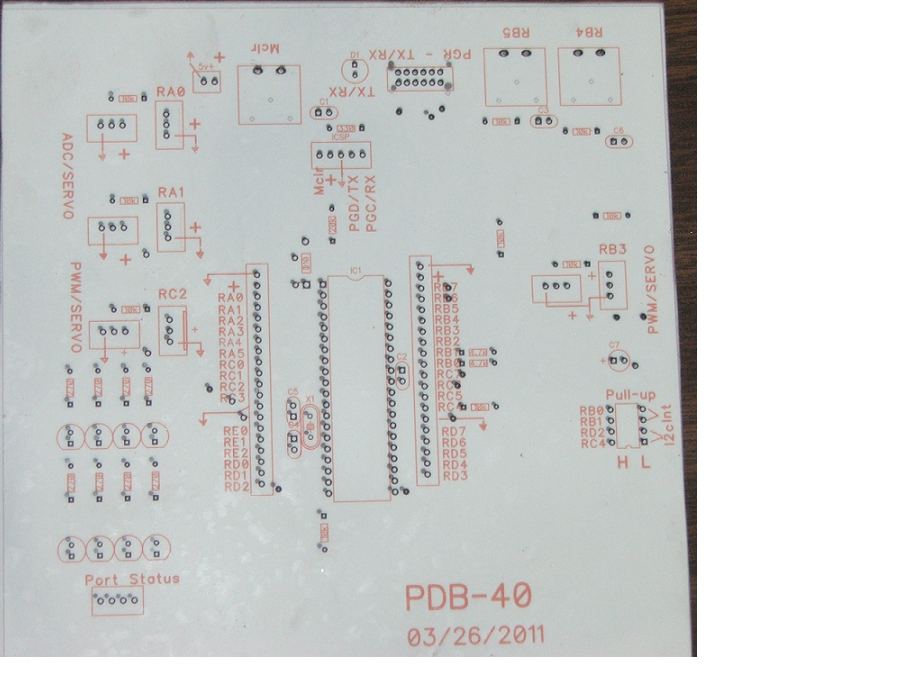

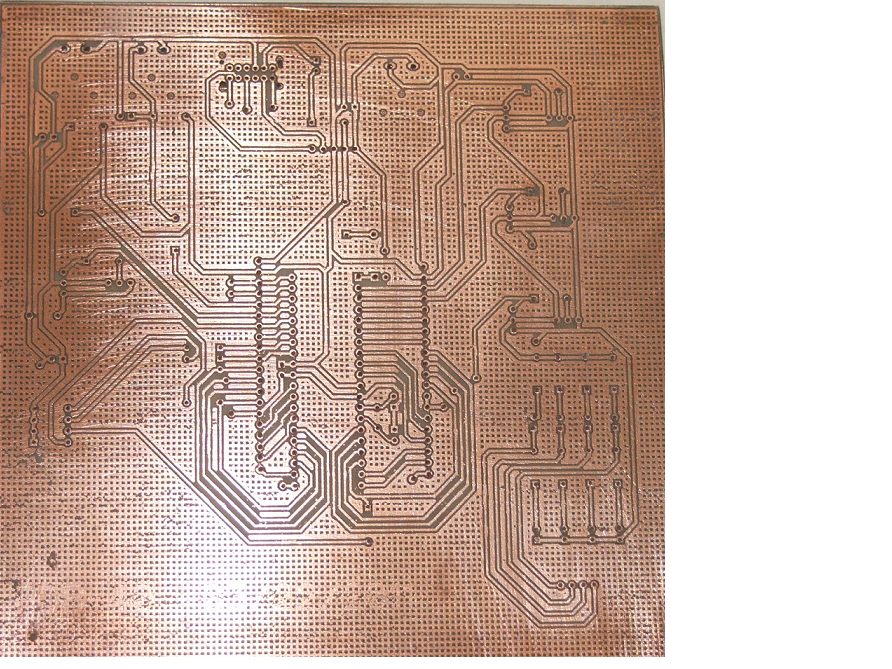

Here is my finished PCboard w/ red silk screen. Wanted a black board w/ white silk screen.
DIPTRACE files are available if you want


Attachments

  • boardtop2.png
    892.7 KB · Views: 325
  • boardbottom.png
    1.2 MB · Views: 303
