    I've decided to convert from Yenka to LTSpice as Yenka can't keep up with large circuits. But, a lot of fundamental components aren't in the LTSpice library's. Like, simple switches. No SPST, DPST. Nothing.

    Any ideas why?

  2. ericgibbs

    ericgibbs Well-Known Member Most Helpful Member

    Joined:
    Jan 4, 2007
    Messages:
    21,181
    Likes:
    644
    Location:
    Ex Yorks' Hants UK
    hi,

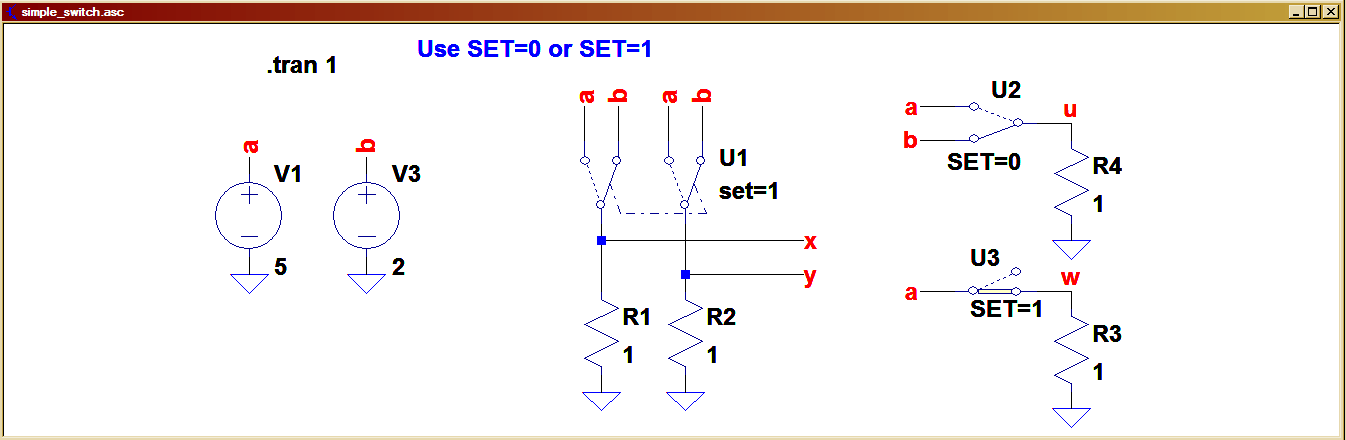

    Yahoo LTS group has switch models.

    EDIT:


    Attached Files:

    Last edited: Sep 26, 2011
  3. BrownOut

    BrownOut Banned

    Joined:
    Jun 10, 2009
    Messages:
    4,630
    Likes:
    60
    Location:
    Huntsville, Alabama USA
    There are swtiches in LTspice. The are kinda funky, because they have a voltage "in" port that switches the contacts with a threashold voltage. I think it's under the "components" library. I'll have to look when I get back home and double check, but I know they are available.

    If nobody else beast me to it, I'll post an example circuit that uses LTS switches.

    Last edited: Sep 26, 2011
  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. LukeeeeBennett

    LukeeeeBennett Member

    Joined:
    Apr 30, 2011
    Messages:
    133
    Likes:
    0
    Location:
    Salisbury, UK

    Woah, that group is HARD to navigate. :|

  6. ericgibbs

    ericgibbs Well-Known Member Most Helpful Member

    Joined:
    Jan 4, 2007
    Messages:
    21,181
    Likes:
    644
    Location:
    Ex Yorks' Hants UK
  7. LukeeeeBennett

    LukeeeeBennett Member

    Joined:
    Apr 30, 2011
    Messages:
    133
    Likes:
    0
    Location:
    Salisbury, UK
    Yah, I found them. No sign of DPST switches though. :( Oh well.

  8. ericgibbs

    ericgibbs Well-Known Member Most Helpful Member

    Joined:
    Jan 4, 2007
    Messages:
    21,181
    Likes:
    644
    Location:
    Ex Yorks' Hants UK

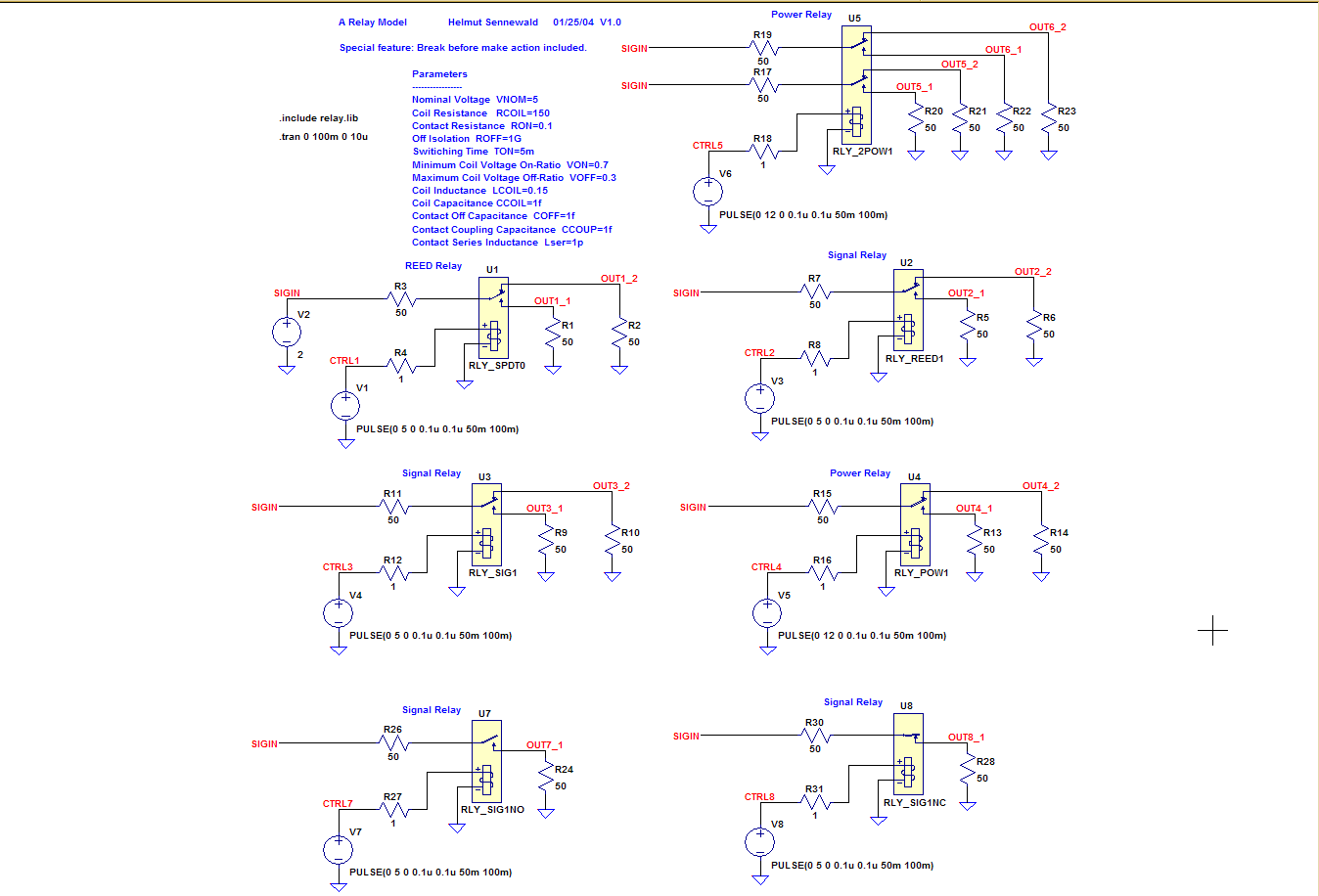

    You could consider a relay.???


    Attached Files:

  9. BrownOut

    BrownOut Banned

    Joined:
    Jun 10, 2009
    Messages:
    4,630
    Likes:
    60
    Location:
    Huntsville, Alabama USA
    You can simulate a DPST switch using the swtiches provided in LTSpice. It can get kind of messy, but you can hide the details in a custom component.

    Or jsut use realys as Mr EG suggests.

    Last edited: Sep 26, 2011
  10. BrownOut

    BrownOut Banned

    Joined:
    Jun 10, 2009
    Messages:
    4,630
    Likes:
    60
    Location:
    Huntsville, Alabama USA

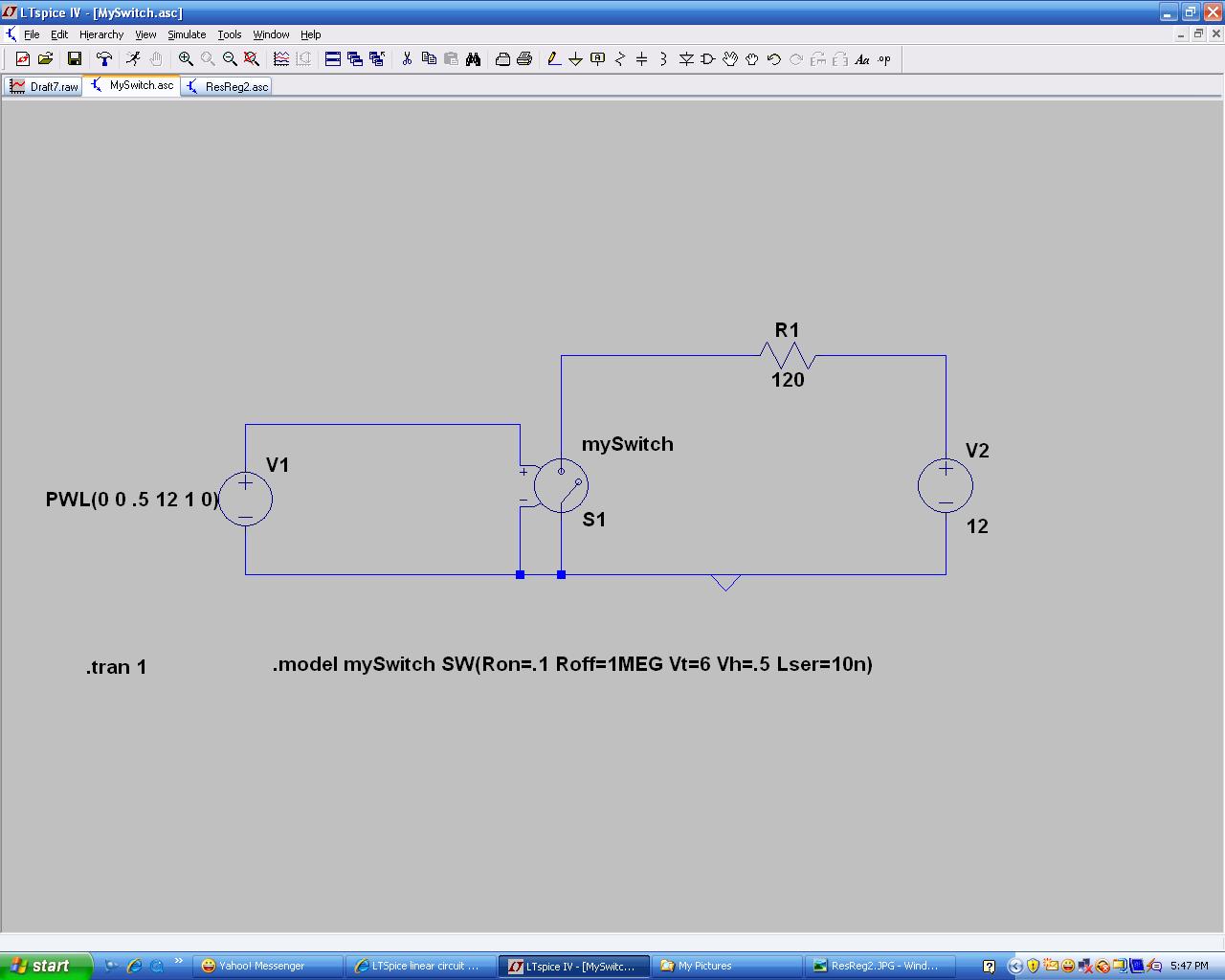

    Here's a schematic that uses a switch in LTSpice. You have to chose the switch from "components/sw" and use the .model statement as shown to define the switche's characteristics. You can simulate any switch by connecting the sw primative in various configurations, and as I said, hiding the details in a custom symbol.


    Attached Files:

  11. kinarfi

    kinarfi Well-Known Member

    Joined:
    Jul 7, 2009
    Messages:
    1,503
    Likes:
    30
    Location:
    P. G., Utah, United States of America
  12. LukeeeeBennett

    LukeeeeBennett Member

    Joined:
    Apr 30, 2011
    Messages:
    133
    Likes:
    0
    Location:
    Salisbury, UK
    Thanks a lot everyone. :D

  13. ronsimpson

    ronsimpson Well-Known Member Most Helpful Member

    Joined:
    Apr 17, 2007
    Messages:
    7,253
    Likes:
    961
    Location:
    Loveland, CO USA
    I have used two spst switches as a spdt switch. I wire the inputs together so they get the same voltage. In the .model statement I set one switch to have an on resistance of 1 ohm and an off resistance of 10,000,000 ohms. The other switch has a on resistance of 10,000,000 and an off resistance of 1 ohm. This causes the two switches to act opposite to each other.
