    Hello All,

    Due to member demand we have put together this list of locally hosted datasheets. We hope that it save you many hours of searching the net!

    What is a datasheet

    A datasheet is the internal stucture of a component.

    Finding your Datasheet within the list

    I know it is a very long list but hopefully this will make it easy for searching. You can either use the search feature (click the Search button on the top of this page) or press the keys Ctrl-F on your keyboard to bring up a search box.

    Viewing Datasheets

    The program Adobe Acrobat Reader is required to view these files. This program can be freely dowloaded from The Official Adobe Site or locally from Electro Tech Site.

    Datasheets Submissions

    If you wish to have a datasheet posted here please attach it to this thread with the pdf, title and short description. If you have any admendments to the list or notice any errors please do PM myself or one of our modorators.

    Enjoy!

    Last edited: Sep 7, 2011
  2. ElectroMaster

    ElectroMaster Administrator

    Joined:
    Jul 5, 2002
    Messages:
    2,057
    Likes:
    127
    Location:
    Broadbeach, AU
    1n4001-4007_rectron
    1n4148_diodes_inc
    1n4148_vishay
    1n457_fairchild
    1n4728-4757_rectron
    1n5223-5261_rectron
    1n5314_apd
    1n5314_cdi
    1n5314_knox
    1n5314_microsemi
    1n5314_motorola
    1n5333-5388_motorola
    1n53xx_sgs-thomson
    1n5400-5408_rectron
    1n5817-5819_rectron
    1n5820-5822_rectron
    27c256_eprom_amd
    28f3204c3t70_intel
    2n2905a
    2n2905a_microsemi
    2n2907a_philips
    2n3055_onsemi
    2n3055_sgs-thomson
    2n3904_fairchild
    2n3904_gensemi
    2n3905_fairchild
    2n3906_gensemi
    2n4123-4_onsemi
    2n4400-4401_motorola
    2n4992_sbs_planeta
    2n5064_boca
    2n506x_scr_boca
    2n506x_scr_onsemi
    2n5302_mospec
    2n5302_onsemi
    2n5401_pnp_transistor_boca
    2n5550_npn_transistor_onsemi
    2n5875-8_mospec
    2n5886_sgs-thomson
    2n639x_scr_onsemi
    2n6667-8_onsemi
    2sa1015_toshiba
    2sa1491_wingshing
    2sc1815_toshiba
    2sc2625_mospec
    2sc2655_toshiba
    2sc3852_sanken
    2sc3855_wingshing
    2sc4242_mospec
    2sc5071_sanken
    3-amp_schottky_diodes_diotec
    4n35_qt
    513ss16_honeywell
    7201-series_v-reg_njr
    74f139_fairchild
    74hct14n_philips
    8086_intel
    8088_intel
    8253_info
    8253_oki
    8254_intel
    8259a_intel
    82c51a_oki
    82c55a_harris
    82c84a_intersil
    82c88_harris
    82c89_harris
    at89c2051_atmel
    ba6790_rohm
    bc558_fairchild
    bdw84c_sgs-thomson
    bfy90_microsemi
    bfy90_semelab
    bfy90_sgs-thomson
    bha3562_rohm
    bso8d_sbs_powerex
    bu806_onsemi
    bu931t_(tip150_sub)_sgs-thomson
    c106-series_scr_motorola
    case_outlines_gensemi
    cd4017_fairchild
    cd4027_fairchild
    cd4027_ti
    cd74hc00_ti
    cd74hc238_ti
    cny17-x_fairchild
    cp106d_scr_power_innovations
    d3sba20_fwbr_shindengen
    d5sba20_fwbr_shindengen
    dac0830lcn_dig-an_convertor_natsemi
    diotec_diode_catalog
    dm7407_fairchild
    dm74185_natsemi
    dmc-50292_optrex
    ds229_dallas
    ee-sh3_omron
    ee-sx_omron
    f06c05-20_mospec
    g3sba-series_fwbr_gensemi
    gbla-series_fwbr_gensemi
    gbl-series_fwbr_gensemi
    gbpc-series_fwbr_fairchild
    gbu4-series_fwbr_fairchild
    gbu4-series_fwbr_gensemi
    gi750-758_diodes_gensemi
    gi820-828_diodes_gensemi
    gi850-858_diodes_gensemi
    gp_6-amp_diodes_diotec
    hcpl-2630_agilent
    hcpl-5630_agilent
    hctl-20xx_agilent
    heds-9200_agilent
    hlmp_led_light_bars_agilent
    hm2007_hmc
    hm6264lp-15_hitachi
    hn9012x_semtech
    hoa6970_honeywell
    hy6264a_hyundai
    icpl2630_isocom
    im2000_ims
    im2000_ims_userman
    ir_guide_honeywell
    irf9630_mosfet_ir
    irlu024_mosfet
    kbl-series_fwbr_gensemi
    kbpxxm-series_fwbr_gensemi
    kbu4-series_fwbr_gensemi
    kbu6-series_fwbr_gensemi
    l293_sgs-thomson
    l297_stepper_motor_controller_appnotes
    l297_stepper_motor_controller_data_sheet
    l297-l298_monolithic_bridge_driver_circuit_apps
    l298_dual_full_bridge_driver_data_sheet
    l6203_sgs-thomson
    l620x_sgs-thomson
    la7670_sanyo
    lm1458_natsemi
    lm234z-6_adj_current_source_natsemi
    lm234z-6_adj_current_source_sgs-thomson
    lm2437t_triple_crt_color_driver_natsemi
    lm2575hvt-12_natsemi
    lm2575hvt-5_0_natsemi
    lm2672_natsemi
    lm2879_natsemi
    lm301_onsemi
    lm317_natsemi
    lm323_natsemi
    lm336z-2_5_vref_diode_natsemi
    lm337_onsemi
    lm339_motorola
    lm350_natsemi
    lm350_onsemi
    lm358n_motorola
    lm392_natsemi
    lm393_natsemi
    lm555_natsemi
    lm556_natsemi
    lm567_natsemi
    lm723_stmicro
    lm723cn_natsemi
    lm78xx_natsemi
    lmc555_cmos_timer
    lmc555_natsemi
    lmd18200t_natsemi
    lmd18201t_natsemi
    lt1011a_linear_tech
    lt1038a_lineartech
    m27512_eprom_sgs-thomson
    m2764a_eprom_stmicro
    m74hc238_sgs-thomson
    magnecraft_&_struthers-dunn_solid_state_relays
    mbm29f016a_fujitsu
    mbr15x5ct_onsemi
    mbr20200ct_motorola
    mc1488_ti
    mc6800_motorola
    mc6800_userman_motorola
    mc68000_motorola
    mc68000_userman_motorola
    mc68020_motorola
    mc6809_motorola
    mc68hc05sc24_motorola
    mcm6264c_motorola
    mcr16_scr_onsemi
    mj15001_motorola
    mj802_onsemi
    mje13007_(tip150_sub)_onsemi
    mje3055t_&_mje2955t_sgs-thomson
    mje5742_&_mje5740
    mjw16110_motorola
    mjw16110_onsemi
    mm5402_clock_natsemi
    mpq2906-07_central
    mpq2907a_central
    mpq-series_quad_txstrs_central
    mps2222a_gensemi
    mps2222a_motorola
    mps2907a_gensemi
    msa-0420_hp
    mtp1p10_mosfet_onsemi
    mtp3055el_mosfet_stmicro
    mtp3055vl_mosfet_onsemi
    mtp8p10_(nte2383_sub)_p-ch_mosfet
    mur1620ct_fairchild
    mv5x7xc_led_qt
    mv-series_led_fairchild
    n80c51gb-1_intel
    ndb4060l_fairchild
    nju9201-2b_njr
    nte_6a_plastic_rectifiers
    nte130_&_nte219_(2n587x)
    nte2343-4_data_sheet
    nte2363
    nte263_&_nte264_(2n6667-2n6668)
    nte6403_(2n4992_sbs)
    onsemi_bipolar_power_devices
    onsemi_price_sheet
    onsemi_product_marking
    onsemi_smps_design_info
    optrex_dcm-lcd_manual
    otc4n35_optocoupler
    p6ke-series_tvs_dc-comp
    p6ke-series_tvs_rectron
    p6ke-series_tvs_vishay
    pal16l8_amd
    pal16l8_ti
    palce16v8_amd
    pbl3717a_sgs-thomson
    pc814x_sharp
    pc844x_sharp
    pc8x7_sharp
    pcf50372h_philips
    pcf5073_philips
    phihong_psa60_power_supplies
    ps2501-4_nec
    ps2502-4_nec
    ps2505-4_nec
    rs405l_fwbr
    rs40xl_fwbr_rectron
    rs40xm_fwbr_rectron
    rs601-7_fwbr_rectron
    rs-series_(kbl-series)_fwbr_diodes_inc
    rs-series_(kbl-series)_fwbr_eris
    s1x_smt_diodes_fairchild
    s20d30-60_mospec
    sb-series_fwbr's_diotec
    scr_data_teccor
    semiconductor_device_outlines
    sg3524n_ti
    sk100_teamasia
    sme-smd_honeywell
    sn7407_ti
    sn7490a_ti
    sn74als1035n_ti
    sn74f14n_(74f14)_fairchild
    sn74f32_data_sheet
    sn74ls00_ti
    sn74ls00n_ti
    sn74ls02d_onsemi
    sn74ls02n_ti
    sn74ls04_ti
    sn74ls04n_ti
    sn74ls07_ti
    sn74ls08d_onsemi
    sn74ls08n_ti
    sn74ls138n_onsemi
    sn74ls139a
    sn74ls139a2
    sn74ls14_ti
    sn74ls147d_onsemi
    sn74ls147n-48n_onsemi
    sn74ls14d_onsemi
    sn74ls164_ti
    sn74ls165a_ti
    sn74ls221_ti
    sn74ls221n_ti
    sn74ls240-41-44n_motorola
    sn74ls244_ti
    sn74ls373_onsemi
    sn74ls373_ti
    sn74ls374_onsemi
    sn74ls374_ti
    sn74ls682-84-88n_onsemi
    sn74ls74ad_onsemi
    sn74ls75n_ti
    sn74ls86a_ti
    sn74ls90_ti
    sn74s08_ti
    sn75188_ti
    sn75189a_ti
    sn7545xbp_ti
    sn75462p_ti
    sn75472p_ti
    sr1620_chenyi
    st_bipolar_xref
    st_micro_transistor_specification_table
    ste53na50_sgs-thomson
    ste53nc50_sgs-thomson
    t1011_triac_fagor
    t2500d_motorola
    t2500dfp_motorola
    t2500fp_motorola
    t2800d_motorola
    tba120u_philips
    tba810p_sgs-thomson
    tda3562a_sgs-thomson
    tda3567_philips
    tda7560_stmicro
    tda8560q_philips
    tea2025_unisonic
    tea3717dp_sgs-thomson
    thomson_cross_reference
    til19x_ti
    tip100-107_boca
    tip100-107_motorola
    tip150_mospec
    tip150_power_innovations
    tip29_series_samsung
    tip29-30_motorola
    tip29-30_onsemi
    tip33c-34c
    tip41-42_onsemi
    tl493-4-5cn_ti
    tl494_motorola
    tl494_onsemi
    tl494_ti
    tl497a_ti
    tl598cn_ti
    tl77xx_svs_ti
    tl783_vreg_ti
    tlc271acp_lincmos_lp_op-amp_ti
    tlc372cp_lincmos_dual-diff_comparator_ti
    tlc7524_ti
    tms320p14_ti
    tsop1738_vishay
    ttl_standard_series_data
    uaa2016-d_onsemi
    udn2879w_allegro
    uln2003a_ti
    uln20xx_allegro
    zn429e-8_dac_plessey

    Last edited: May 3, 2014
  3. hotwaterwizard

    hotwaterwizard Active Member

    Joined:
    Apr 5, 2004
    Messages:
    1,077
    Likes:
    12
    Location:
    Sacramento,California USA
    Here is the Datasheet for Both SK100 and SL100


    Attached Files:

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. hotwaterwizard

    hotwaterwizard Active Member

    Joined:
    Apr 5, 2004
    Messages:
    1,077
    Likes:
    12
    Location:
    Sacramento,California USA
  6. hotwaterwizard

    hotwaterwizard Active Member

    Joined:
    Apr 5, 2004
    Messages:
    1,077
    Likes:
    12
    Location:
    Sacramento,California USA

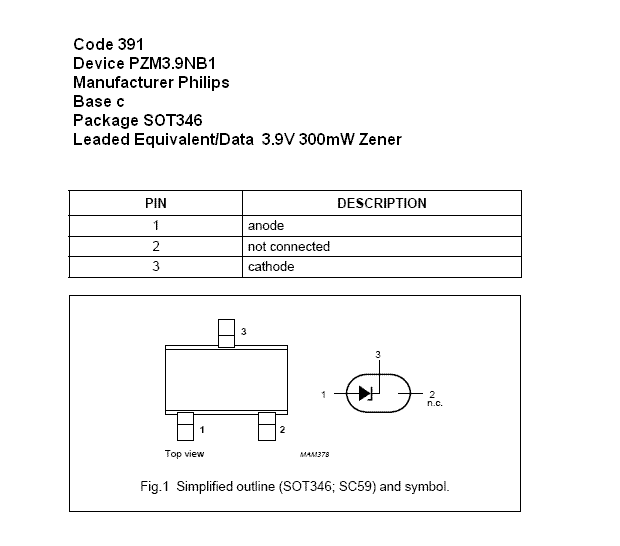

    Code 391
    Device PZM3.9NB1
    Manufacturer Philips
    Base c
    Package SOT346
    Leaded Equivalent/Data 3.9V 300mW Zener

    In the Datasheet Page 2 line B1 gives you the Marking code 391


    Attached Files:

    Last edited: Oct 23, 2007
  7. hotwaterwizard

    hotwaterwizard Active Member

    Joined:
    Apr 5, 2004
    Messages:
    1,077
    Likes:
    12
    Location:
    Sacramento,California USA
    Here is a Quick sheet


    Attached Files:

    • 391.GIF
      File size:
      8.5 KB
      Views:
      467
    Last edited: Oct 23, 2007
  8. hotwaterwizard

    hotwaterwizard Active Member

    Joined:
    Apr 5, 2004
    Messages:
    1,077
    Likes:
    12
    Location:
    Sacramento,California USA
    I did a Yahoo Search and found this.


    Attached Files:

  9. hotwaterwizard

    hotwaterwizard Active Member

    Joined:
    Apr 5, 2004
    Messages:
    1,077
    Likes:
    12
    Location:
    Sacramento,California USA
  10. hotwaterwizard

    hotwaterwizard Active Member

    Joined:
    Apr 5, 2004
    Messages:
    1,077
    Likes:
    12
    Location:
    Sacramento,California USA
  11. hotwaterwizard

    hotwaterwizard Active Member

    Joined:
    Apr 5, 2004
    Messages:
    1,077
    Likes:
    12
    Location:
    Sacramento,California USA

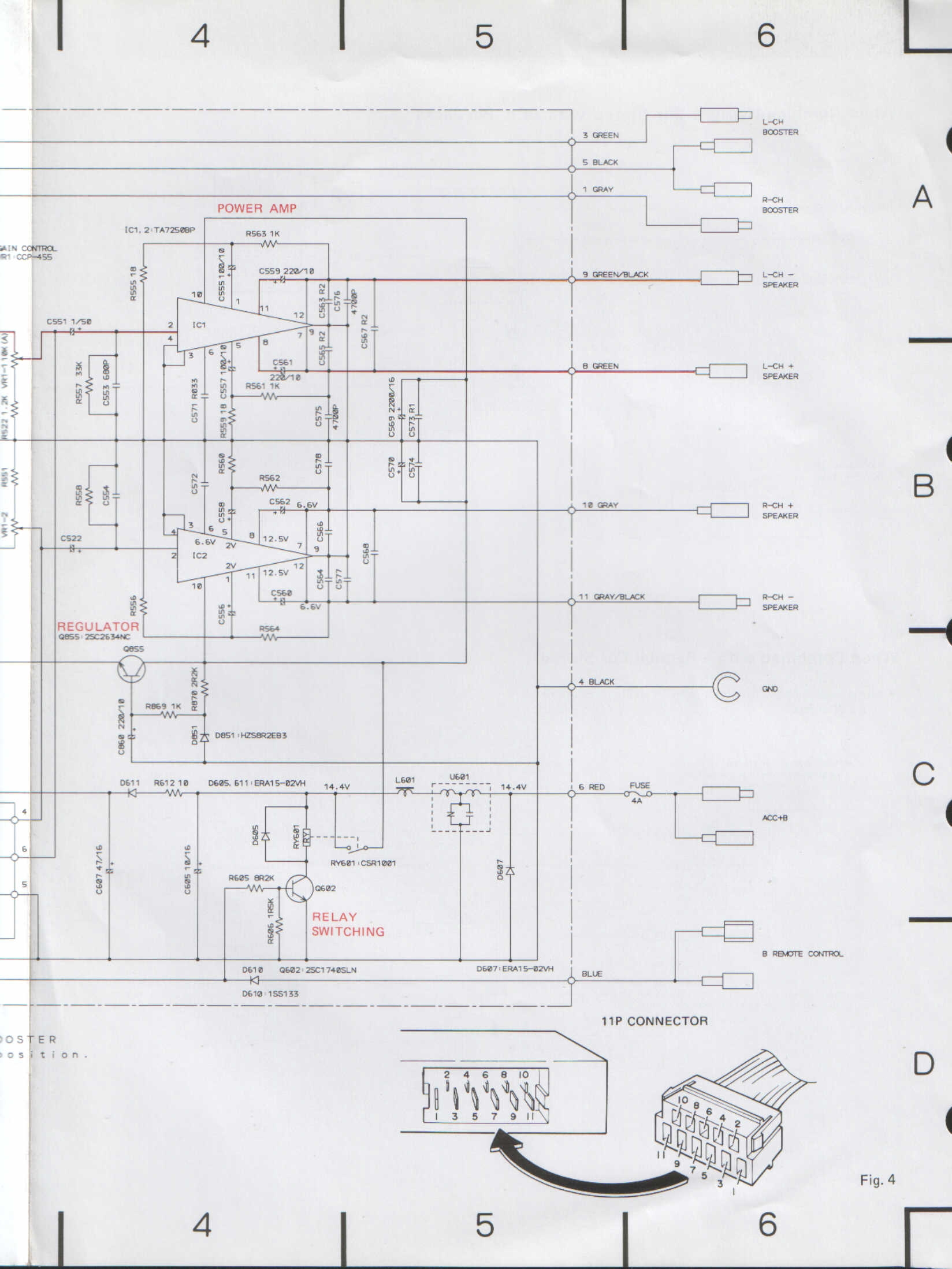

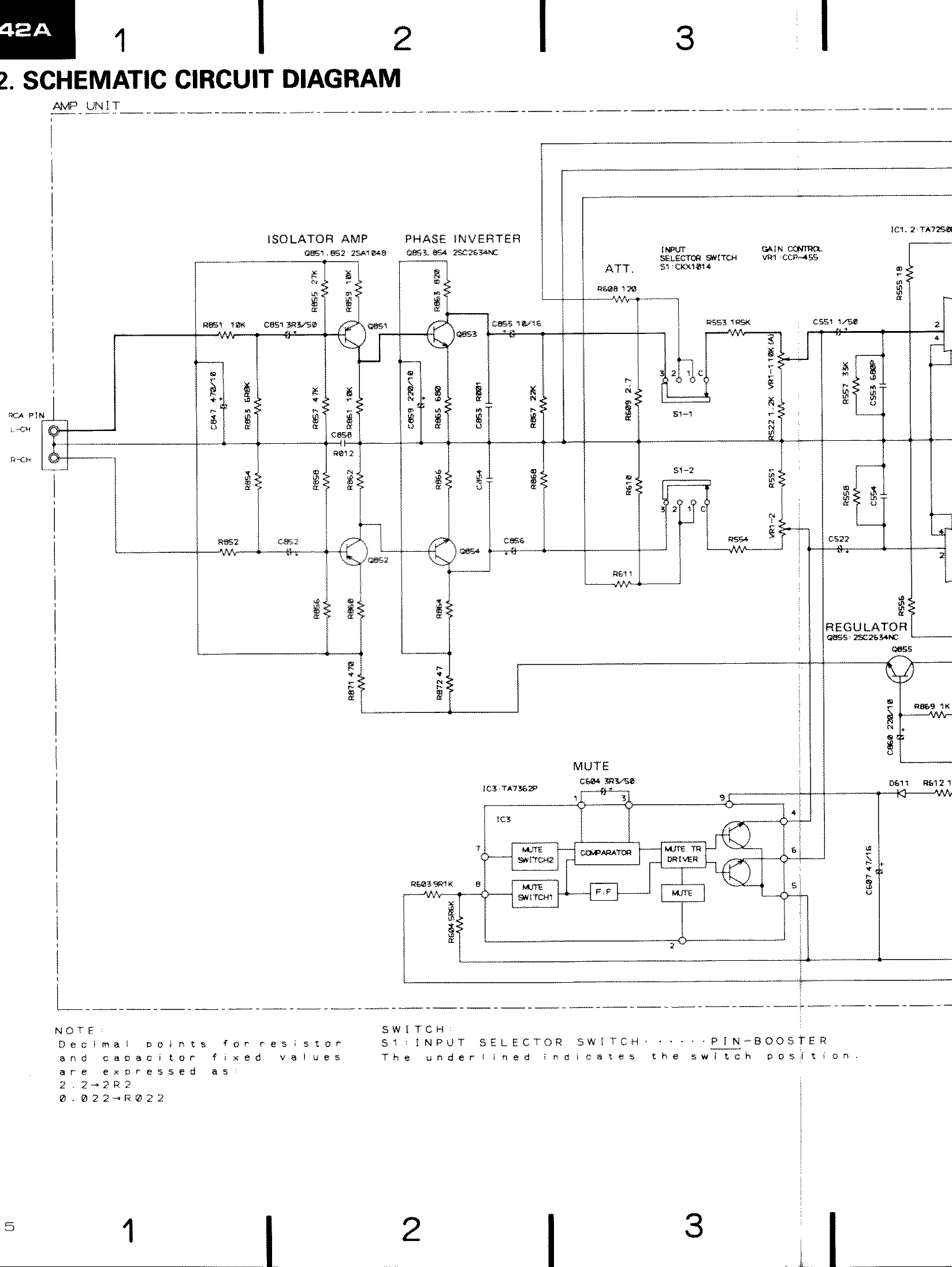

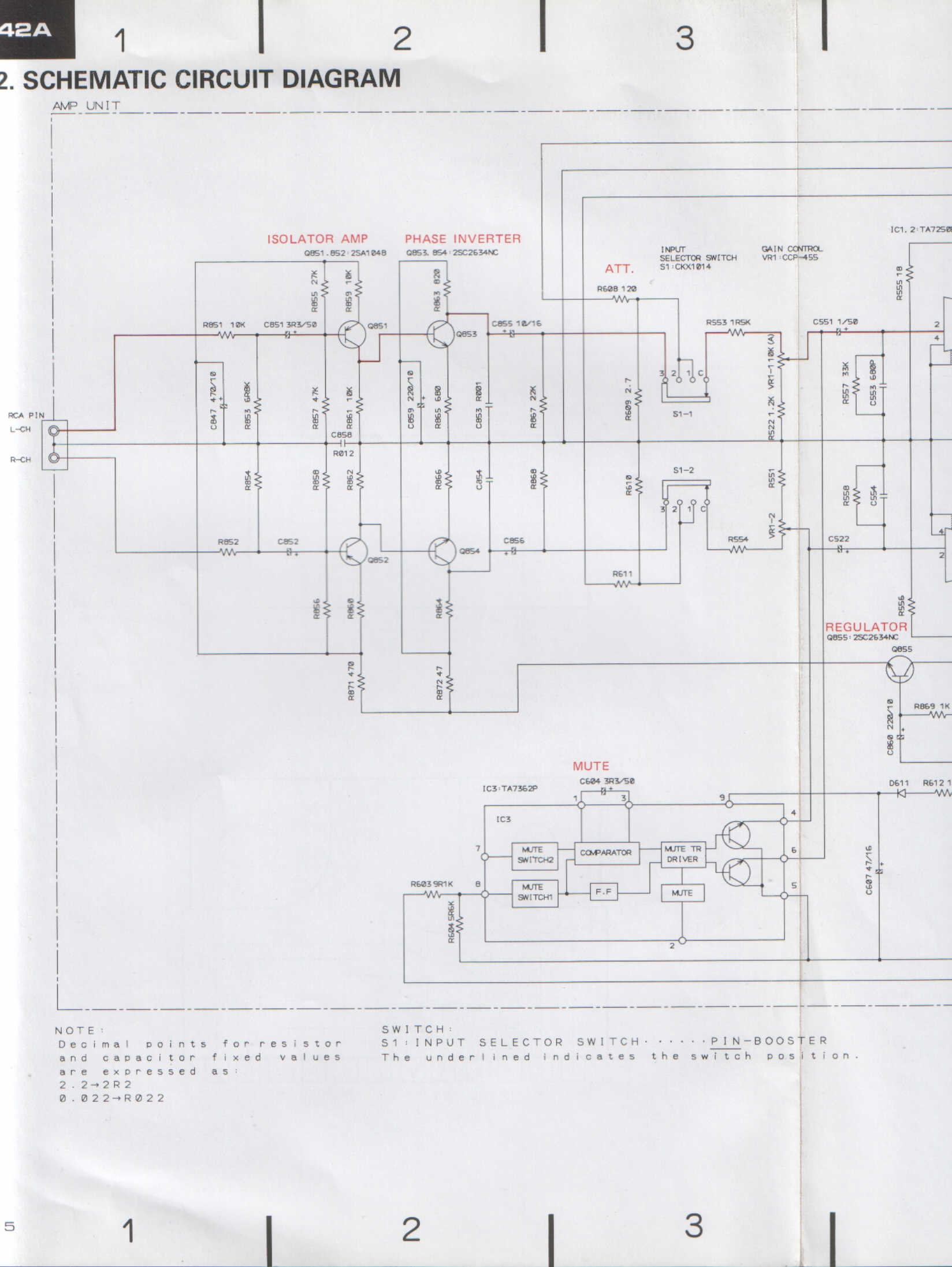

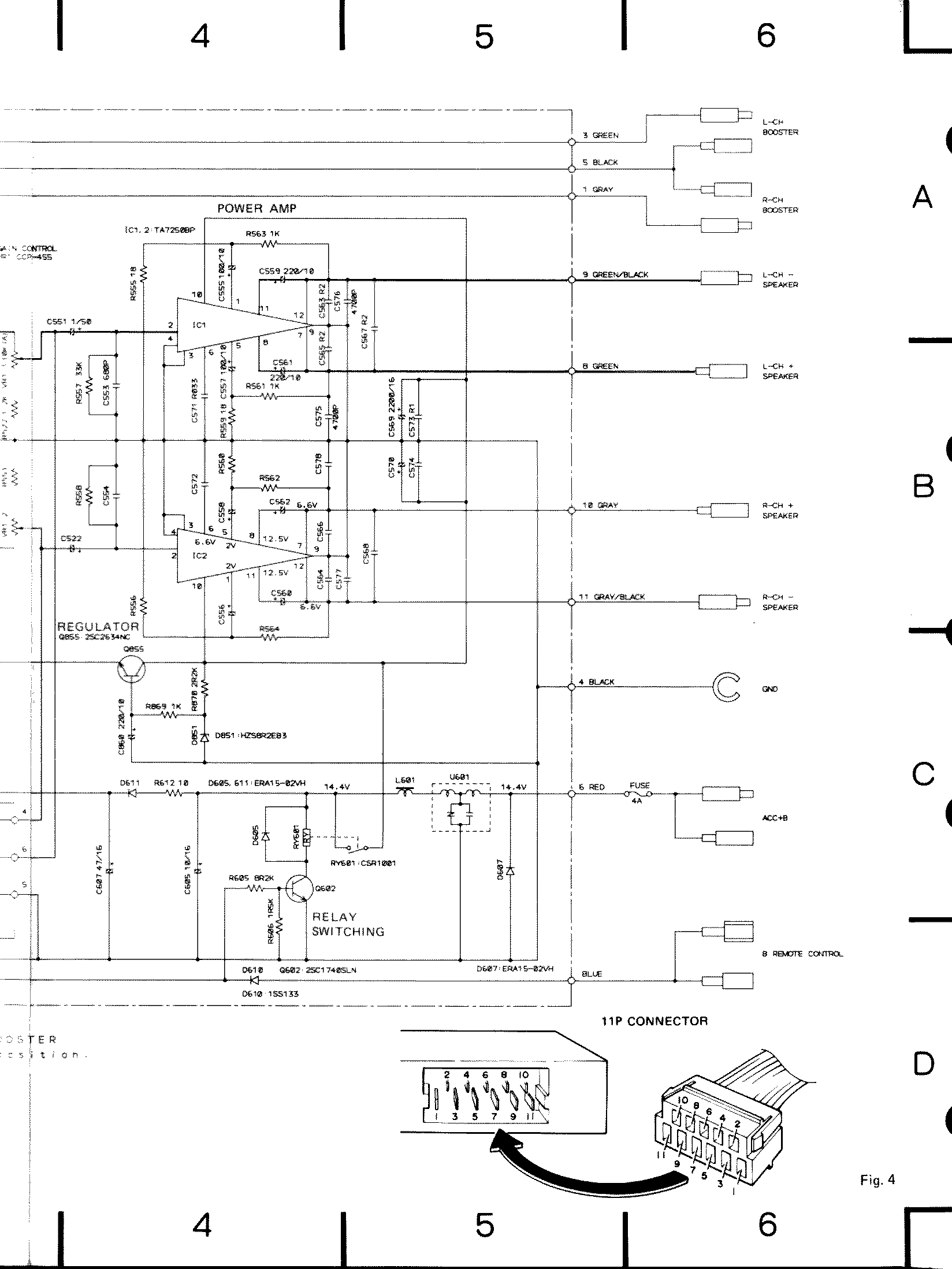

    I have a Schematic containing this Muting Ic


    Attached Files:

  12. hotwaterwizard

    hotwaterwizard Active Member

    Joined:
    Apr 5, 2004
    Messages:
    1,077
    Likes:
    12
    Location:
    Sacramento,California USA

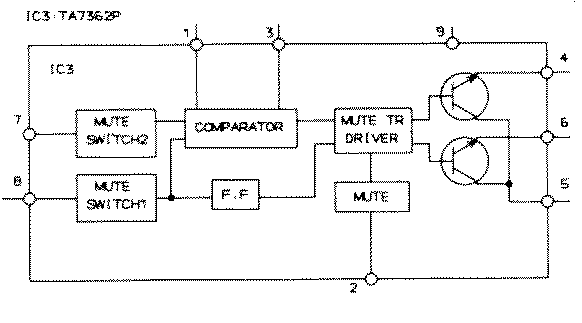

    Here is the Pinout from the Schematic


    Attached Files:

  13. hotwaterwizard

    hotwaterwizard Active Member

    Joined:
    Apr 5, 2004
    Messages:
    1,077
    Likes:
    12
    Location:
    Sacramento,California USA

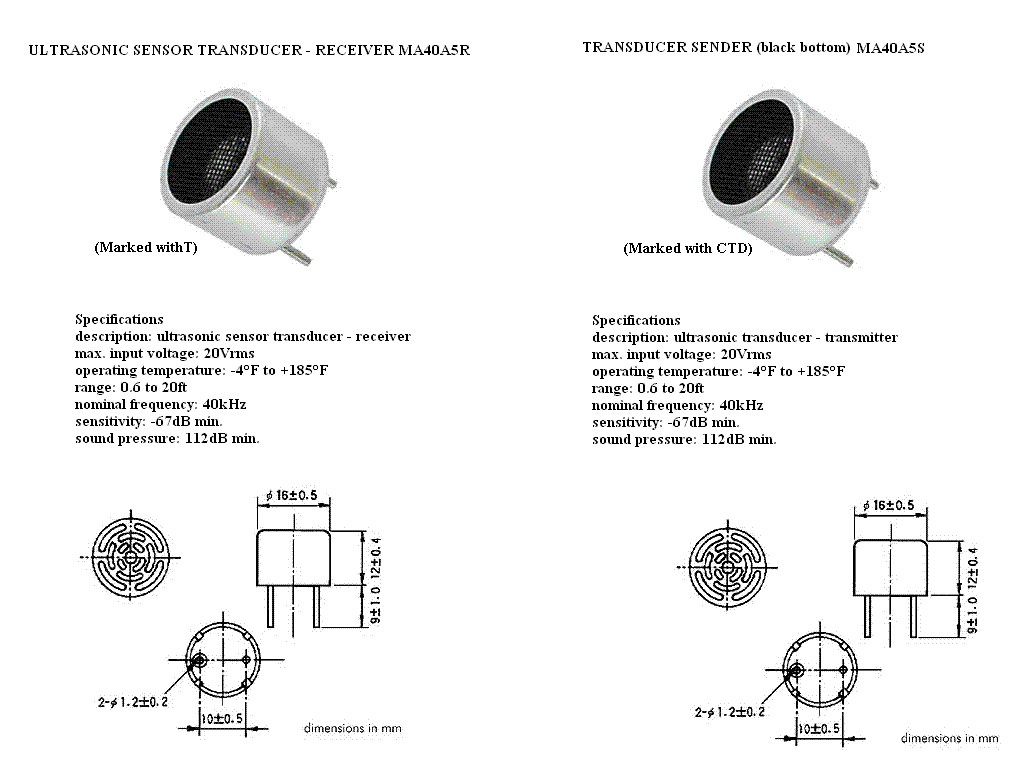

    Don't have it yet. I will if I can help it

    I found it in about 15 min


    Attached Files:

    Last edited: May 12, 2009
  14. Cheesby

    Cheesby New Member

    Joined:
    Sep 13, 2009
    Messages:
    1
    Likes:
    0
    Location:
    Devon
    IC descriptions

    The datasheet list is a great effort, but suppose you don't know the number of the device?. A famous electronics catalogue of some decades ago used to have the TTL logic families listed by description and you could then work out for yourself exactly what number IC you needed. I can't find this-way-round of doing things on the internet. Even the Wikipedia entry for the simple logic gates only gives a list of the numbers. Have I missed a trick? Is there a descriptive list (for the simple logic gates/decoders/counters) somewhere out there on the internet ? Assistance appreciated.

  15. kchriste

    kchriste New Member Forum Supporter

    Joined:
    Jul 23, 2006
    Messages:
    3,677
    Likes:
    47
    Location:
    Victoria BC, Canada
    If you look on page 146 of this pdf you'll see such a list for the 74 series chips:


    Attached Files:

  16. monkeybiter

    monkeybiter Member

    Joined:
    Oct 16, 2006
    Messages:
    200
    Likes:
    2
    Location:
    doncaster, u.k.
  17. yafch

    yafch New Member

    Joined:
    Nov 28, 2008
    Messages:
    87
    Likes:
    0
    The link is for data sheets of TMPZ84C00 and its varients. youy think TMPZ8004 and TMPZ84c00 are same? i already tried the datasheetcatalog, datasheetarchive,alldatasheet.com and others. but got no results for TMPZ8004.

  18. kchriste

    kchriste New Member Forum Supporter

    Joined:
    Jul 23, 2006
    Messages:
    3,677
    Likes:
    47
    Location:
    Victoria BC, Canada
  19. KeepItSimpleStupid

    KeepItSimpleStupid Well-Known Member Most Helpful Member

    Joined:
    Oct 30, 2010
    Messages:
    9,938
    Likes:
    1,099

Share This Page
