ICD2 Compatable + PCB layout

Discussion in 'Microcontrollers' started by William At MyBlueRoom, Jun 29, 2006.

  1. electrojit

    electrojit New Member

    Joined:
    Jun 17, 2006
    Messages:
    3
    Likes:
    0
    can any one please upload the whole ICD with schematic & PCB (eagle, orcad) with the source code and helpful instructions in zip file for me and every one else?

    Please..... Please

  2. mramos1

    mramos1 Active Member

    Joined:
    Sep 15, 2005
    Messages:
    2,403
    Likes:
    9
    Location:
    Boynton Beach, Florida USA
    He gave all you need to make one, I think the bootloader is in the threads as well.

    I think Bill gave more than enough as he is going to sell them and was
    nice enough to let me build one myself. But Bill is a nice guy :)

    Mike K8LH, been to mailbox 5 times today.. hehehe.. Like Christmas here (for me).

  3. William At MyBlueRoom

    William At MyBlueRoom New Member

    Joined:
    Feb 28, 2006
    Messages:
    721
    Likes:
    1
    Location:
    Toronto, Canada
    Thanks.:D

    There's more to come, Here's the inchworm PCB in 1:1 scale .pdf mirrored for your etching fun. I've been redrawing it slightly smaller to fit in a standard hammond case with holes in the four corners for screws, that's the one for the stores.


    Attached Files:

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. mramos1

    mramos1 Active Member

    Joined:
    Sep 15, 2005
    Messages:
    2,403
    Likes:
    9
    Location:
    Boynton Beach, Florida USA

    I am not unhappy with the old board other than some blind old guy scratched it up a little with a drill bit (me).

    I did not start building it this weekend, as the mail-person did not show. Maybe I will do the new one for fun tomorrow.

    But thanks go out to you and Mike for sure. Can not wait to play with it.

  6. William At MyBlueRoom

    William At MyBlueRoom New Member

    Joined:
    Feb 28, 2006
    Messages:
    721
    Likes:
    1
    Location:
    Toronto, Canada
    You need a drill press. The slightly smaller PCB version can replace the lid in a Hammond 1591B 4.4 x 2.44 x 1.66

  7. Mike - K8LH

    Mike - K8LH Well-Known Member

    Joined:
    Jan 22, 2005
    Messages:
    3,637
    Likes:
    109
    Location:
    Michigan, USA
    Did the package arrive in good condition?

  8. mramos1

    mramos1 Active Member

    Joined:
    Sep 15, 2005
    Messages:
    2,403
    Likes:
    9
    Location:
    Boynton Beach, Florida USA
    The mail finally showed up (late), no package yet. Looks like it will be a week night project now. But I have plenty of other parts to put in :) I doubt I would have got it running tomorrow anyway.

    Thinking about doing the newer board Bill did.

  9. Mike - K8LH

    Mike - K8LH Well-Known Member

    Joined:
    Jan 22, 2005
    Messages:
    3,637
    Likes:
    109
    Location:
    Michigan, USA
    Sorry man. That really bugs me when the counter person at the post office says "priority will get there Saturday" and you pay the long dollar and then it doesn't show up when promised. Sad thing is it's happened a couple times before and I'm reminded of the "fool me once / fool me twice" parable.

    Geesh! Mike

  10. mramos1

    mramos1 Active Member

    Joined:
    Sep 15, 2005
    Messages:
    2,403
    Likes:
    9
    Location:
    Boynton Beach, Florida USA
    Oh no problem here at all, thank for doing it all..

    It was funny to me, I do not get excited a lot and I caught myself walking out to the box, and pushing the flag down. Like I would get it built this weekend anyway.

    I have plenty I can do tomorrow on it. I want to print Bill's new one and see how much smaller it is on paper.

  11. William At MyBlueRoom

    William At MyBlueRoom New Member

    Joined:
    Feb 28, 2006
    Messages:
    721
    Likes:
    1
    Location:
    Toronto, Canada

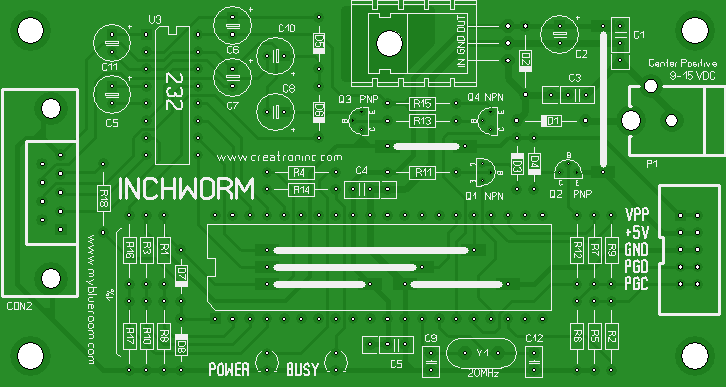

    Here's a preview of the Inchworm D3 (same schematic) smaller PCB that mounts in a Hammond 1591 case 4.4 x 2.44

    The PCB is 107mm x 57mm


    Attached Files:

  12. mramos1

    mramos1 Active Member

    Joined:
    Sep 15, 2005
    Messages:
    2,403
    Likes:
    9
    Location:
    Boynton Beach, Florida USA
    I like it. Is there an updated PDF of the PCB. I will drill slower this time too.

    The C1, C4 and C5, is the extra pin to make it where I can fix whatever caps I have in the board easier? At first I thought it was a jumper block.

  13. William At MyBlueRoom

    William At MyBlueRoom New Member

    Joined:
    Feb 28, 2006
    Messages:
    721
    Likes:
    1
    Location:
    Toronto, Canada
    Yep, 0.1s are common in both .1" & .2" lead spacing. So I've made holes for both. I prefer the look of the .1 but have bags of .2

    PS I'm going to do the D3 revision in Blue (Red and Yellow look cool too) but Blue fits the MyBlueRoom theme.


    Attached Files:

    Last edited: Jul 16, 2006
  14. mramos1

    mramos1 Active Member

    Joined:
    Sep 15, 2005
    Messages:
    2,403
    Likes:
    9
    Location:
    Boynton Beach, Florida USA
    Like the blue board idea (we have all seen GREEN, RED, the ones done in the garage..). :D I saw I had mail from you, assumed Inchworm board, but my wife had me painting and working in the yard (did I mention she is 4' 11" but my but was painting all day for sure). So I have not pulled it yet, will before I go to bed.

    MikeK8LH hooked me up too (877A / bootloader, etc).

    Maybe I need a vacation day tomorrow. hehehhe

  15. Mike - K8LH

    Mike - K8LH Well-Known Member

    Joined:
    Jan 22, 2005
    Messages:
    3,637
    Likes:
    109
    Location:
    Michigan, USA
    mramos1,

    did you receive that package in the post today?

    Mike

  16. Mike - K8LH

    Mike - K8LH Well-Known Member

    Joined:
    Jan 22, 2005
    Messages:
    3,637
    Likes:
    109
    Location:
    Michigan, USA
    What different colors can you get for the solder mask? I like purple (grin).

  17. mramos1

    mramos1 Active Member

    Joined:
    Sep 15, 2005
    Messages:
    2,403
    Likes:
    9
    Location:
    Boynton Beach, Florida USA
    Mike, I am down with the the purple too.. And I bet we can sell a ton of kids things for their cars with purple PCBs. Hummm.. Maybe, we get, ourpurpleroom.com? :D

    Kidding Bill..

    Got package. Check private mail on the forum. After work, had to sell a car and help a good friend with unloading a garage. Tomorrow might be slower.. I hope.

    But all is here.. Now for time to start it.. Loved the sticker on the envelope.

    And really, thanks.

  18. William At MyBlueRoom

    William At MyBlueRoom New Member

    Joined:
    Feb 28, 2006
    Messages:
    721
    Likes:
    1
    Location:
    Toronto, Canada
    If you're looking for the Inchworm schematics I've had to change my URL from myblueroom to www.blueroomelectronics.com

    Still trying to solve the virtual domain stuff at godaddy

  19. mramos1

    mramos1 Active Member

    Joined:
    Sep 15, 2005
    Messages:
    2,403
    Likes:
    9
    Location:
    Boynton Beach, Florida USA
    I was not able to get to the page Bill. There is no DNS entry for blueroomelectronics.com.

  20. William At MyBlueRoom

    William At MyBlueRoom New Member

    Joined:
    Feb 28, 2006
    Messages:
    721
    Likes:
    1
    Location:
    Toronto, Canada
    Try it now. I was experimenting with the DNS stuff. My old DNS provider was $20us per year, godaddy is a bargain at $7US yr for 5yrs.

  21. 3v0

    3v0 Coop Build Coordinator Forum Supporter

    Joined:
    Jul 14, 2006
    Messages:
    9,404
    Likes:
    227
    Location:
    OKLAHOMA USA
    FYI:
    The nav links on you site still point to http://www.myblueroom.com/
    instead of the pointclark server.
