How to change the y axis in LTspice

Discussion in 'Circuit Simulation & PCB Design' started by EsraaAbdelmotteleb, Oct 10, 2017.

  1. EsraaAbdelmotteleb

    EsraaAbdelmotteleb New Member

    Joined:
    Oct 10, 2017
    Messages:
    1
    Likes:
    0
    So, I'm trying to plot Vin vs Vout (Vin on the axis and Vout on the y-axis), but I can't figure out how to change the y-axis to represent Vout. I'm using LTspice. Any help will be MUCH appreciated

  2. ericgibbs

    ericgibbs Well-Known Member Most Helpful Member

    Joined:
    Jan 4, 2007
    Messages:
    21,220
    Likes:
    644
    Location:
    Ex Yorks' Hants UK
    hi.
    Look at this method,

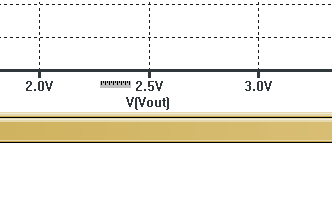

    Place the cursor on Time X label [ a rule symbol should appear, left click] type in place of time V(Vout)

    E


    Attached Files:

    • Informative Informative x 1
  3. MikeMl

    MikeMl Well-Known Member Most Helpful Member

    Joined:
    Mar 17, 2009
    Messages:
    11,099
    Likes:
    562
    Location:
    AZ 86334

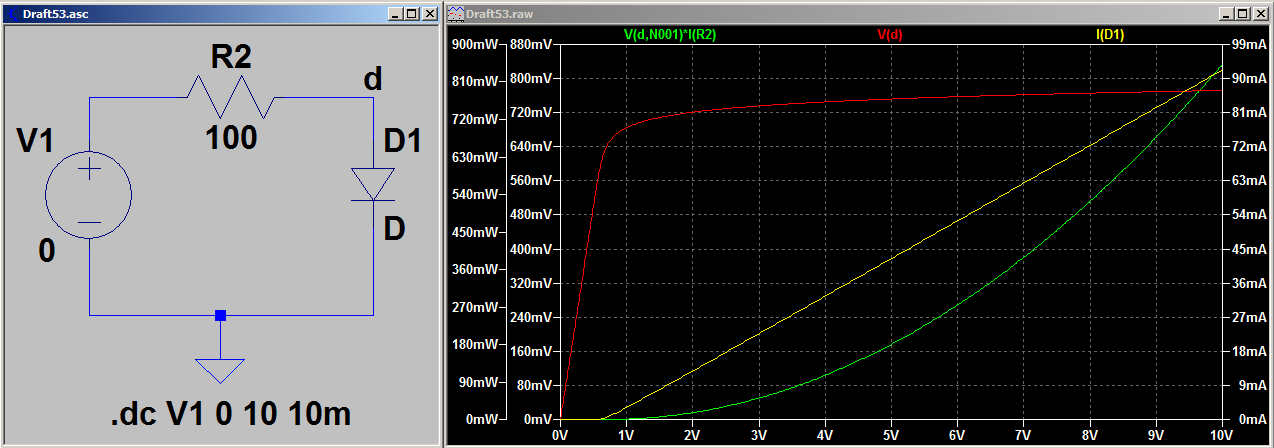

    You can do it easily for a dc sweep (not in the time domain). Look at this example:

    The independent variable of the simulation is the Voltage of V1, which sweeps linearly from 0V to 10V, and is the X-Axis in the plot.

    I have plotted three dependent variables; the diode voltage V(d), the current through the diode I(D1), and the power dissipated in the resistor (green expression). These are plotted on the Y-Axis.

    Last edited: Oct 11, 2017
    • Informative Informative x 1
