Help for solving a block Diagram algebra - Control Systems

Discussion in 'Homework Help' started by IlpolpoPaul, Nov 20, 2015.

  1. IlpolpoPaul

    IlpolpoPaul New Member

    Joined:
    Nov 20, 2015
    Messages:
    1
    Likes:
    0

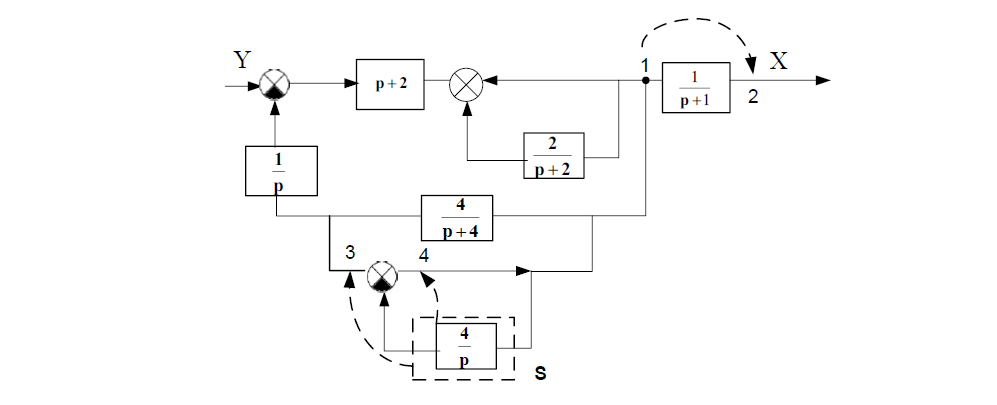

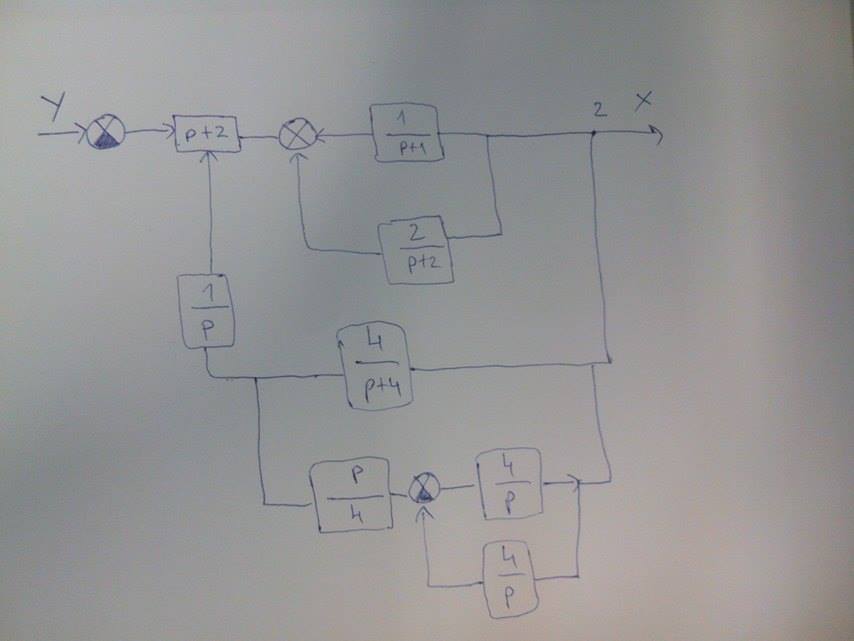

    - control 2.png Second step.jpg I am having some difficulties with solving this block diagram. It is required that the node 1 goes at point 2 and the block S moves out of the feedback loop (to 3 and 4). Can anyone help me and draw the next equivalent block diagrams. What should I do, what will happen when I move the node 1 at the point 2?
    -I tried to solve this problem but I am not sure if it is correct! Any kind of information will be of great help :) Thanks in advance!
