Is this the right place to ask about FSM's and state tables? I am new to FSM's and have done my first diagram and table (attached), just wanted some advice on if I have made any realy booboo's

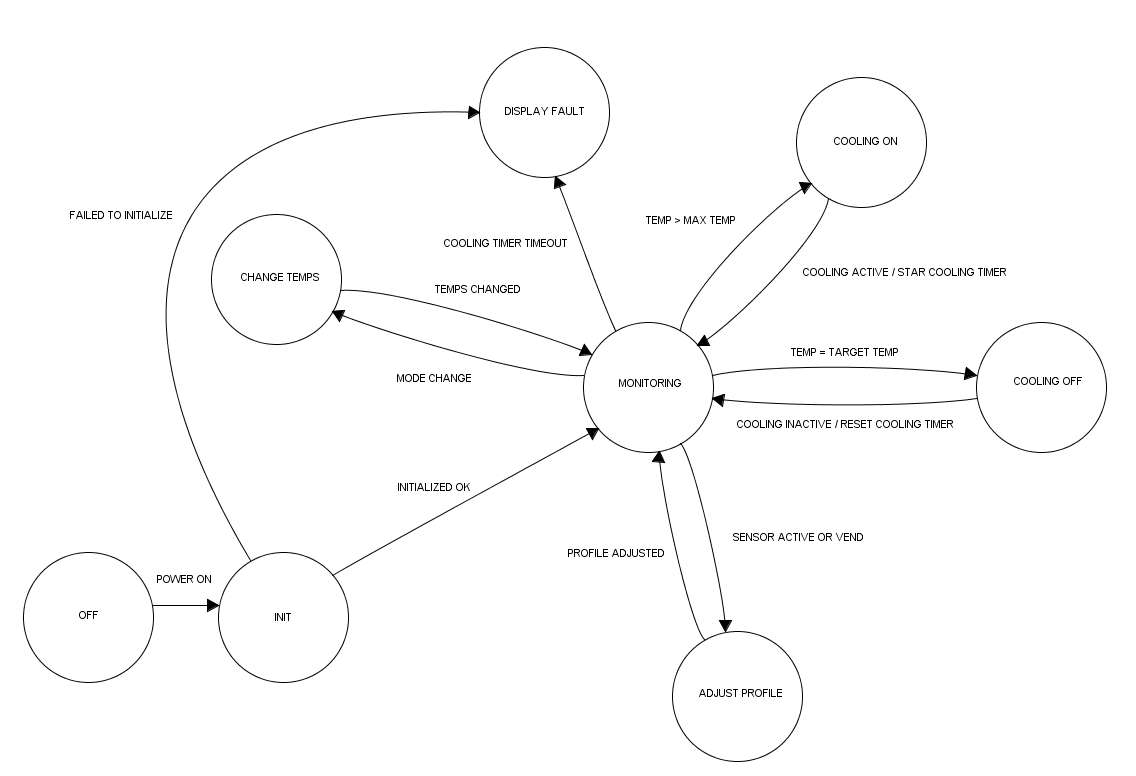

If you look at the diag, I have a state called "monitor" this is the main state that siits there and checks things like temp / timeout / vend, if this the correct way to do a FSM diag or should I have tests (temp / timeout / vend) is seperate states?
Also am I correct in having things like "change temps" as a state when really it just changes the temp and returns so it is not a "change temps" state for very long.
Thanks
