Electronic Water Softener

Discussion in 'Electronic Projects Design/Ideas/Reviews' started by RayH, Jul 11, 2004.

  1. RayH

    RayH New Member

    Joined:
    Jul 11, 2004
    Messages:
    8
    Likes:
    0
    Location:
    Southampton UK
    Hi All
    Can anyone tell me where I can obtain a circuit drawing for an Electronic Water Softner ?
    Thanks in anticipation
    Regards Ray
  2. Nigel Goodwin

    Nigel Goodwin Super Moderator Most Helpful Member

    Joined:
    Nov 17, 2003
    Messages:
    36,588
    Likes:
    402
    Location:
    Derbyshire, UK
    The UK magazine EPE have done a couple of them, at least one of which used a PIC. I presume you are aware that it's rather debatable if they work or not?.
  3. ante

    ante New Member

    Joined:
    Jan 6, 2004
    Messages:
    315
    Likes:
    0
    Location:
    Sweden
    Ray,

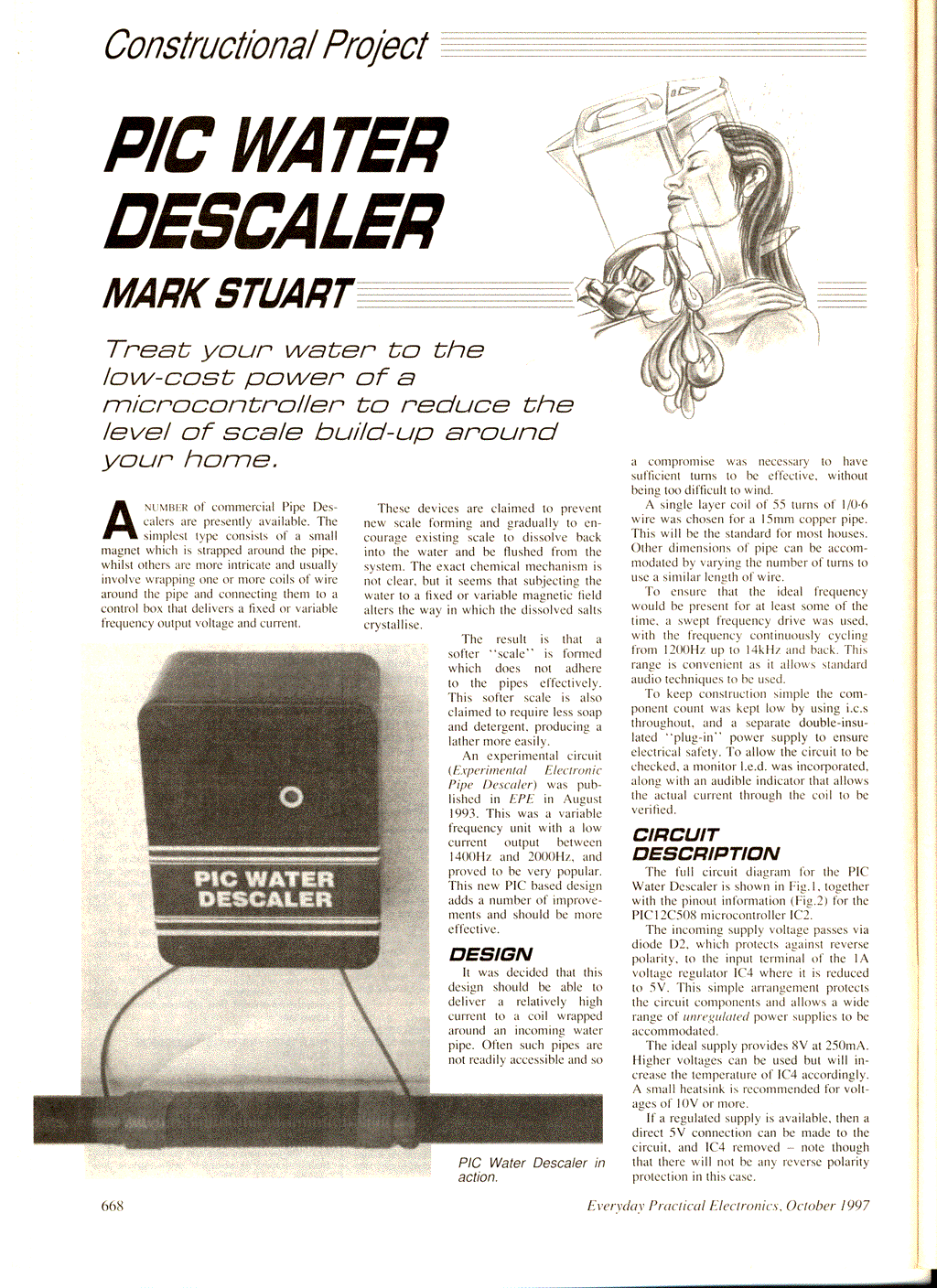

    I have scanned an article from EPE Magazine.
    Hope it helps!

    All The Best!

    Ante :roll:

    Attached Files:

  4. ante

    ante New Member

    Joined:
    Jan 6, 2004
    Messages:
    315
    Likes:
    0
    Location:
    Sweden

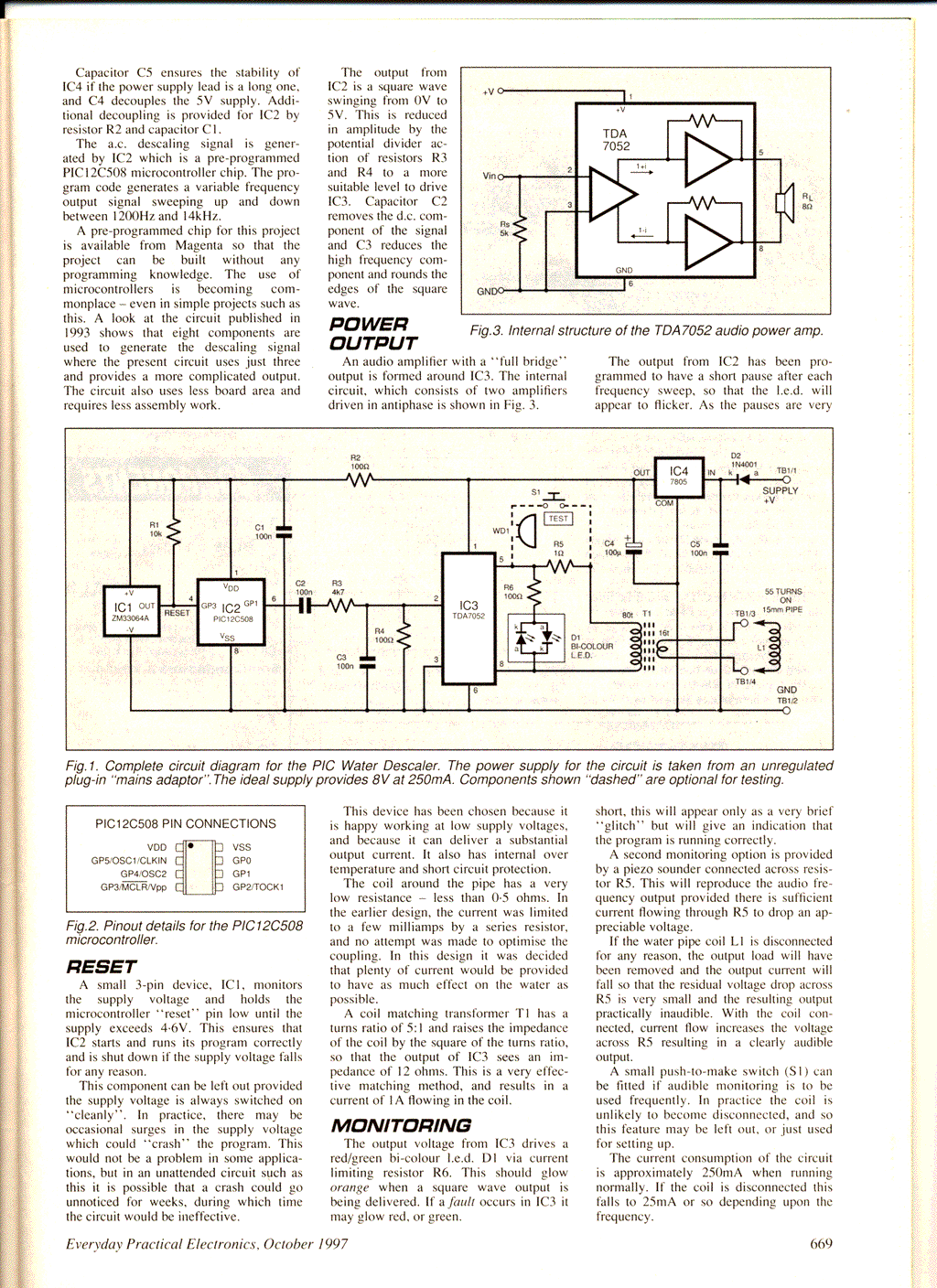

    Page 2

    Attached Files:

  5. ante

    ante New Member

    Joined:
    Jan 6, 2004
    Messages:
    315
    Likes:
    0
    Location:
    Sweden

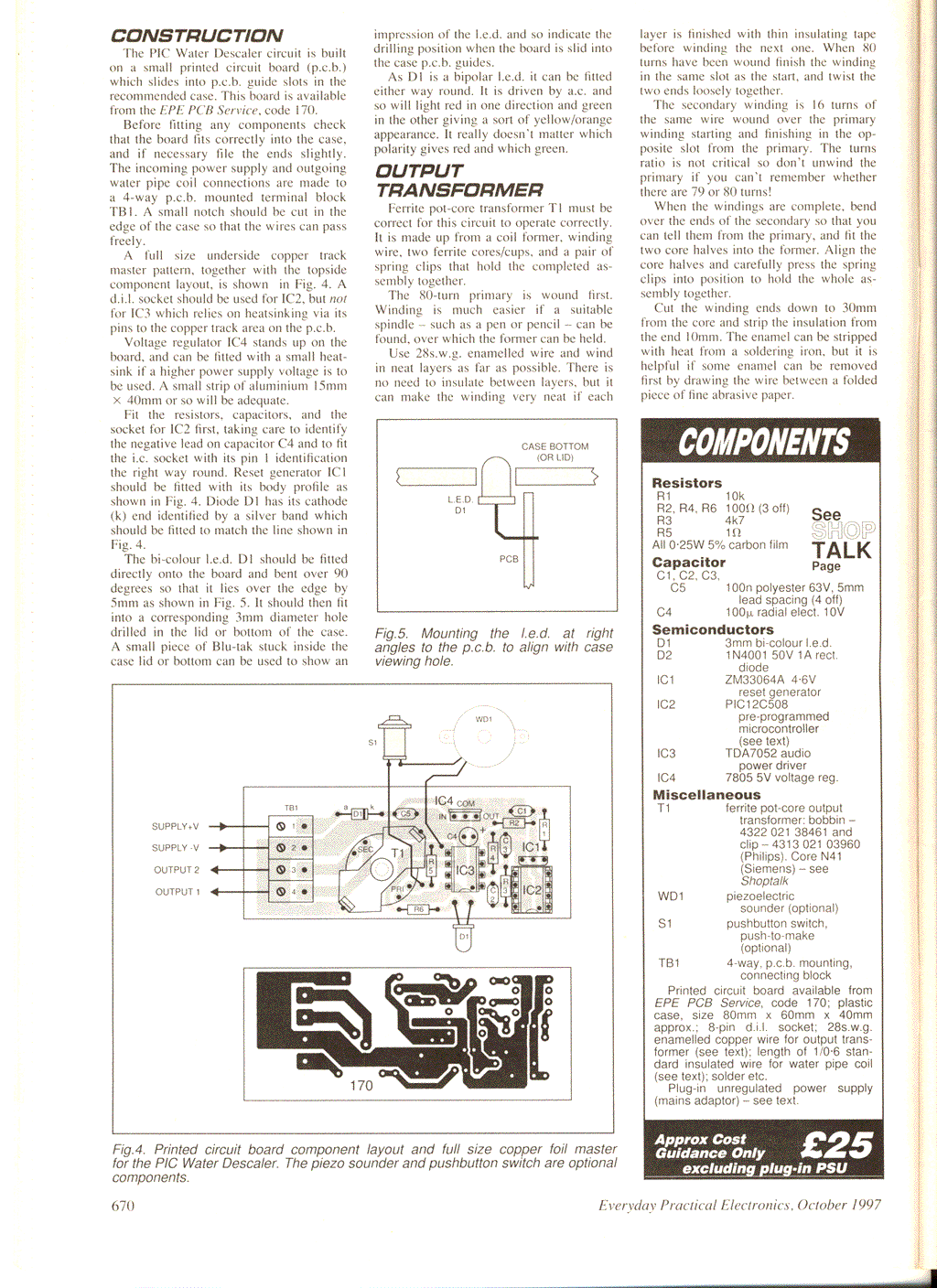

    Page 3

    Attached Files:

  6. ante

    ante New Member

    Joined:
    Jan 6, 2004
    Messages:
    315
    Likes:
    0
    Location:
    Sweden

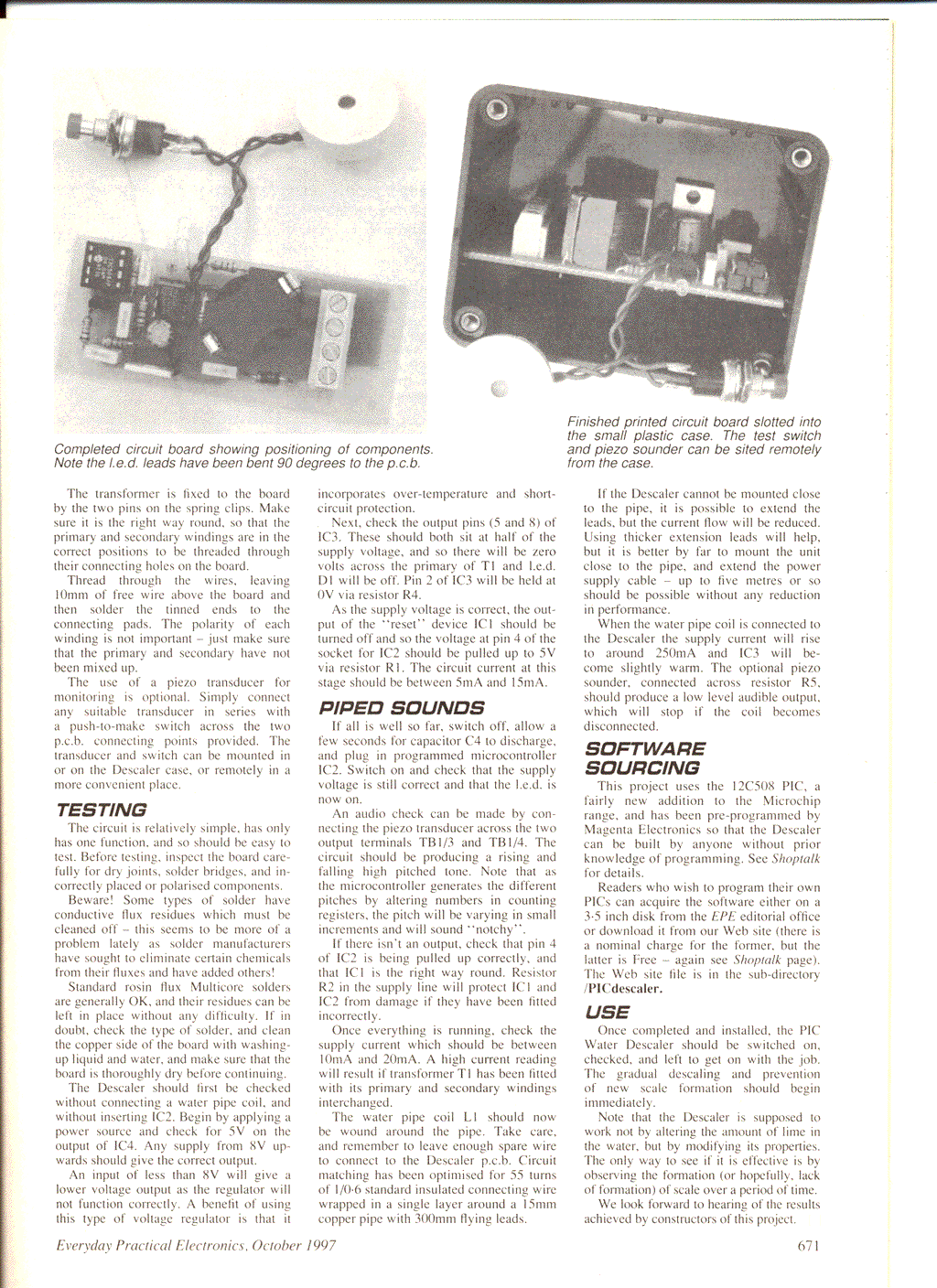

    Page 4
