Deception In Soldering Iron Ratings

Discussion in 'Electronic Projects Design/Ideas/Reviews' started by MrAl, Dec 3, 2014.

  1. MrAl

    MrAl Well-Known Member Most Helpful Member

    Joined:
    Sep 7, 2008
    Messages:
    11,042
    Likes:
    959
    Location:
    NJ
    Hello there,


    QUESTION #1:
    You are shown two temperature controlled soldering irons, one is 60 watt and one is 40 watt. The 60 watt iron is slightly more expensive than the 40 watt iron, but not much more. Which one do you purchase?

    QUESTION #2:
    You are shown two temperature controlled soldering irons, one is 60 watt and one is 50 watt. The 60 watt iron is slightly more expensive than the 50 watt iron, but not much more. Which one do you purchase?

    QUESTION #3:
    You are shown two temperature controlled soldering irons, one is 60 watt and the other one is either 40 or 50 watt. The 60 watt looks a little cheaper in quality but not too much cheaper. Which one do you purchase?


    If you answered "The 60 watt iron" to either question above, you probably paid too much for that iron because guess what, they are all about 40 watts !!

    In various ad's on the web we see 60 watt irons that are the exact same model as the 50 watt irons, yet they are both really only 40 watts. This means they cant solder as well as a real 60 watt iron for somewhat larger metal joints.

    First we see the 60 watt rating, which appears in ads for companies that dont seem to care about what they say about their product as long as it sounds good. Then we see the 50 watt rating, where the company is a little more responsible about their rating because they take their rating directly from the heating element which is stamped "50 watts, 24 volts". So we cant blame the companies that advertise 50 watts.

    Measuring the DC resistance, we see that the "50 watt 24 volt" element resistance really measures 16 ohms. The power delivered to a 16 ohm resistance with 24 volts DC is:
    P=24^2/16=36 watts.

    So the elements are not even up to 40 watts yet !

    The way it looks is every time the product changes hands the receiver tacks on another 10 watts, so that by the time the ad gets posted it's up to 60 watts in some cases.

    That's quite deceptive because we purchase items based on what we need, and sometimes we need the higher power iron but we dont get that, when if we knew the actual rating we would get one that really fit the job.

    You'll note that many soldering stations use AC not DC, but that only makes matters worse if there is any inductance because that can only lower the wattage not increase it.

    One manufacturer that was contacted actually said that the "60 watts" came form the "input power to the station". But that's not accurate either because the input power with only the iron running is not anywhere near 60 watts. It's also very unlikely that a small control board and transformer would consume 20 watts of power when powering a 60 watt device on full power.
    When informed about this, they simply state that you can return the entire station for a refund.

    Please note that this doesnt mean that the irons dont work at all, they do, but they wont be as high powered as expected. For example, i had no trouble soldering a #24 gauge (AWG) copper wire end to a 10 turn Bourns potentiometer terminal, which is about 1/8 inch wide and about 1/8 inch long and thin metal. Didnt try #12 AWG wire yet though.

    If you have any comments that would be nice to hear, or if you have any experience with these irons. The elements themselves are often advertised as "50 watts 24 volts DC".

    Last edited: Dec 3, 2014
  2. JimB

    JimB Super Moderator Most Helpful Member

    Joined:
    Sep 11, 2004
    Messages:
    6,353
    Likes:
    586
    Location:
    Peterhead, Scotland
    ONLINE
    Thought provoking MrAl. So much so that I gathered up all my soldering irons and did a few tests.

    I measured the resistance of the heating element, hot and cold, and calculated the power at both maximum and minimum rated supply voltages.

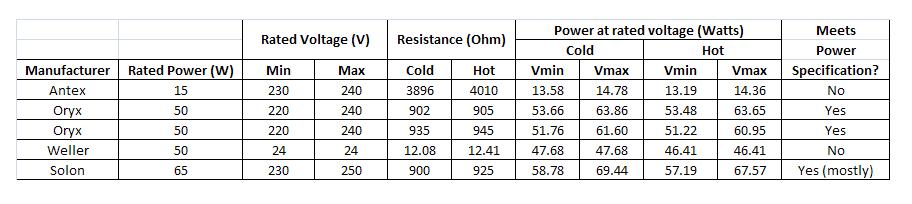

    The results are presented in the table below.

    The Antex iron is a simple 15watt iron which always surprised me how well it would deal with large joints and chassis connections when the large (6mm) tip was fitted. This iron dates from the early 1970s.

    The two Oryx irons are nominally identical and are temperature controlled and adjustable by means of a screw in the side of the handle.
    The tips are easily replaceable and I only "retired" this as my everyday iron when the tips wore out and seemed to be unobtainable. I have recently found a source of tips and have a few on order so that I can use the iron out in my garage with out having to come into the house to borrow the Weller.

    The Weller is the old faithfull TCP type as used by Audioguru when he installed the sound system on the Ark for Mr Noah.:D

    The Solon is a large heavy duty iron for soldering big lumps. The actual iron belonged to my father and probably dates from the 1970s, but, it is identical to an iron which he had in the 1950s which presumably failed at some time.

    JimB

    Soldering Irons.JPG

    • Like Like x 1
  3. audioguru

    audioguru Well-Known Member Most Helpful Member

    Joined:
    Mar 16, 2004
    Messages:
    32,513
    Likes:
    942
    Location:
    Canada, of course!
    Noah's Ark sank because my soldering made it too heavy to float anymore.:)

    My "50W" Weller soldering iron is mostly used for soldering small wires to a pcb or slurping up solder to remove a part that has small wires. But sometimes I replace its 1/16" chisel tip with a much larger 1/4" blade (like a screwdriver blade) that takes some time to reach a proper temperature but it is large enough to hold the heat long enough to solder or desolder something that is pretty darn big.

    My 50W soldering iron does not heat the room with 50W all the time like a cheapo soldering iron with no temperature control. It might idle at 5W. It goes to full power the moment it needs more power.

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. MrAl

    MrAl Well-Known Member Most Helpful Member

    Joined:
    Sep 7, 2008
    Messages:
    11,042
    Likes:
    959
    Location:
    NJ


    Hi,

    That's a very comprehensive table there Jim, thanks for posting that.

    I can see right away that your Weller 50 watt iron has lower resistance than the ones i've measured. I've measured 16 ohms and yours measures 12 ohms. That's a lot better. The element is replaceable in mine and the element i have right now is stamped with the 50 watt 24v imprint, but it measures 16 ohms. I see your Weller also came in at just under 50 watts, which i think is acceptable. What isnt acceptable is 36 watts. 12 ohms equates of course to 2 amps at 24 volts, so that's about 48 watts which is close to the stamped value, but mine is 16 ohms so it doesnt pull 2 amps so no 50 watts. I did check the Weller irons but they were very expensive for the kind i wanted (like $300 USD).

    But yes, Noah was asked by God to place two of every animal and two of every soldering iron on the Ark, but he forgot to check the ratings of all of them so we end up missing the unicorn and with some very low wattage irons :)

    Audioguru if you get around to measuring the current and voltage of your iron when it's running we could add that to the table.

    I have a couple other irons but they are all old style too so most likely they are up to par. They only run on AC though.

    As a side note, i purchased a Stanley hot glue gun a while back because it was rated for 80 watts and advertised to heat up really fast because of that. When i measured it with a watt meter, it measured just under 40 watts and doesnt heat up any faster than any other glue gun i've had and i've had quite a few in the past.

  6. tvtech

    tvtech Well-Known Member Most Helpful Member

    Joined:
    Mar 27, 2010
    Messages:
    3,167
    Likes:
    348
    Location:
    South Africa
    This is too complicated for me.

    I am a simple person. I simply solder away with an Iron that does the job. Not too hot and also not too cold.

    I never thought about Soldering Irons this way....

    I could have problems Tomorrow when I have sets to fix....

    1. Dry Joints. Iron 1
    2. Remove IC. Iron 2.
    3. Cracks..combination of Iron 1 and 2 plus bridging wire..

    So many Irons, so little time. Nah.

    I ain't falling for this.

    I think someone is trying to confuse me. Again.

    Regards,
    tvtech

  7. carbonzit

    carbonzit Active Member

    Joined:
    Mar 19, 2011
    Messages:
    1,958
    Likes:
    13
    Hmm, verrrry eenteresting ...

    I work in a hardware store and we sell irons (mostly Weller, one Xacto and one cheapie by Forney). Now I'm tempted to pull them down and measure them.

    (No soldering stations, though.)

  8. Willen

    Willen Well-Known Member

    Joined:
    May 22, 2012
    Messages:
    1,293
    Likes:
    115
    Location:
    Nepal (GMT +5:45)
    Hi,
    I have a very cheap soldering iron- 220V 50Hz input. Once I opened the iron and got a 1N4007 diode in series of supply. What are they trying to get using the diode there?

  9. Pommie

    Pommie Well-Known Member Most Helpful Member

    Joined:
    Mar 18, 2005
    Messages:
    10,080
    Likes:
    326
    Location:
    Brisbane Australia
    Maybe it's a 25W 110V element. Using 220V and a diode will make it 50W.

    Mike.

  10. Willen

    Willen Well-Known Member

    Joined:
    May 22, 2012
    Messages:
    1,293
    Likes:
    115
    Location:
    Nepal (GMT +5:45)
    Sorry for going back to basic thing, but If element ( iron coil? ) is 110V 25W then if used 220V and a diode to remove one half cycles, then won't it produce same 25W?

    Last edited: Dec 3, 2014
  11. Pommie

    Pommie Well-Known Member Most Helpful Member

    Joined:
    Mar 18, 2005
    Messages:
    10,080
    Likes:
    326
    Location:
    Brisbane Australia
    Double the voltage equals quadruple the power (W=V²/R). The diode halves the power so end result is double the wattage.

    Edit, I've seen this used on many items and it means the US version is less powerful. Hair dryers come to mind as one such example.

    Mike.

  12. Willen

    Willen Well-Known Member

    Joined:
    May 22, 2012
    Messages:
    1,293
    Likes:
    115
    Location:
    Nepal (GMT +5:45)
    Oh wow, maybe I learnt new thing! Then can I use US version simple low watt devices here with 220V by using just a series suitable diode? Wow we get more power than US! :) But won't the elements/devices overheated/burnt due to over/double power dissipation?

  13. audioguru

    audioguru Well-Known Member Most Helpful Member

    Joined:
    Mar 16, 2004
    Messages:
    32,513
    Likes:
    942
    Location:
    Canada, of course!
    Twice the power in a soldering iron?
    Overheating will incinerate the rosin flux in the solder then solder joints will be poor. The element and tips will burn out sooner. Solid state devices might be destroyed.
    Copper traces on pcb's will lift.

  14. carbonzit

    carbonzit Active Member

    Joined:
    Mar 19, 2011
    Messages:
    1,958
    Likes:
    13
    That series-diode thing reminds me of the "iron-saver" soldering stand I made myself: it's a hook (made from coat hanger) connected to a microswitch that shorts a diode (1N400x) when lifted, puts the diode in series when the iron rests in it to prevent overheating between uses.

    Funny thing is I hardly ever use the thing. No more all-night soldering sessions here ...

    • Like Like x 1
  15. picbits

    picbits Well-Known Member

    Joined:
    Jan 29, 2007
    Messages:
    2,003
    Likes:
    95
    Location:
    Northants, United Kingdom

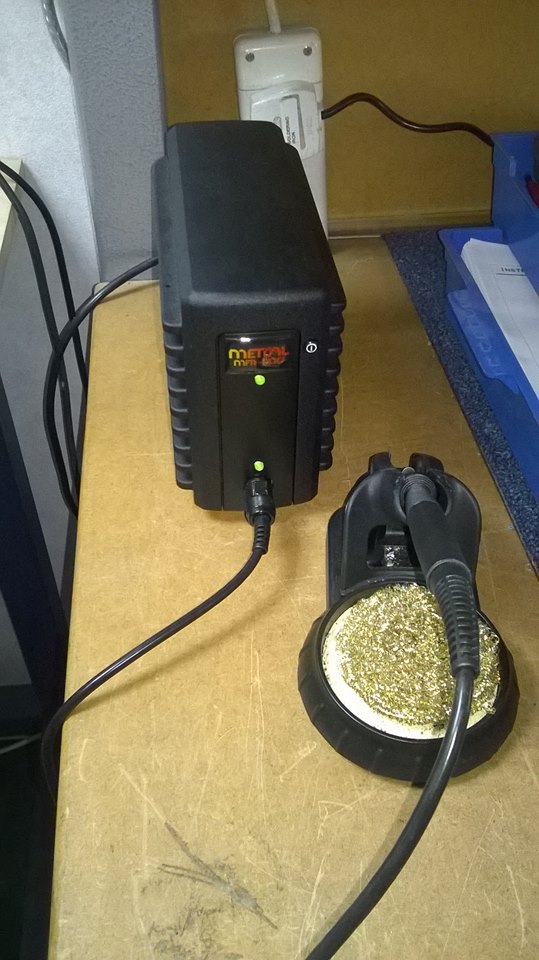

    This is what I use. Deceptively small but for its rated 60w will solder just about anything you throw at it.

    Not cheap but it was a welcoming "present" from the company I started working for a few months ago :)


    Attached Files:

  16. Willen

    Willen Well-Known Member

    Joined:
    May 22, 2012
    Messages:
    1,293
    Likes:
    115
    Location:
    Nepal (GMT +5:45)
    Hi picbits,
    it looks so nice to handle! Probably it's costly high enough! I have an inron rated just $1. :)

  17. MrAl

    MrAl Well-Known Member Most Helpful Member

    Joined:
    Sep 7, 2008
    Messages:
    11,042
    Likes:
    959
    Location:
    NJ
    Hi,

    I just measured my Ungar (remember them?) iron rated for 45 watts at 120vac 60Hz. The cold resistance measured 240 Ohms which comes out to 60 watts at 120v, so the resistance probably goes up a bit when it gets hot (i didnt not measure that yet). But im sure it will fall within a reasonable range of power near 45 watts because their irons were made pretty good. That thing might be from the 1970's ha ha.

    Anyway, if there is a diode in your iron then it most likely is there as part of the overall design. If it is there permanently and not part of a hi/lo temperature switch, then that means the element would get too hot without it. We dont know why they did this yet and it could be because they use the same element in another model iron or they just found that it gets too hot without it. We'd have to ask them.
    It is true that if you double the voltage you increase the power four fold, so using a diode would then just double the power which would bring it up to 50 watts. Maybe it could handle that, maybe not. Maybe they use that same element with a temperature controlled station which wont apply the full 220v to the iron constantly but will only supply that power if the iron cools down slightly due to a thermal cooling sink (a large joint). That would mean that if you short the diode it could burn up after a while if left on when not in use. That would also mean that if y ou could rig up a temperature sensor you could vary the temperature with a control circuit and get a higher power iron out of the deal without burning up the element. This is just a guess though because we dont know the real reason why they used the diode for sure.

    It is good to know the power of your soldering iron so that you know what you can and can not do with it. 36 watts is good for small stuff like DIP packages and transistors, but wont work well with larger joints with heavier wire. It is also important to know the spec when you go to buy one so you know what you are getting so you know what you can and can not do with it.

  18. throbscottle

    throbscottle Well-Known Member

    Joined:
    Feb 1, 2012
    Messages:
    1,802
    Likes:
    113
    Location:
    Nuneaton, Warwickshire, UK
    Reminds me of a portable cd/radio an ex-boss raved about with some ridiculous "power" on the box, might have been 100's of watts. You'd have been lucky to get 10w out of it (probably with massive distortion). Interesting how mfr's just pluck magic figures out of the air. Question everything!

  19. Reloadron

    Reloadron Well-Known Member Most Helpful Member

    Joined:
    Dec 23, 2009
    Messages:
    6,783
    Likes:
    281
    Location:
    Cleveland, Ohio USA
    Thank you Al for what is proving to be a very enlightening thread. So sitting here with one of my inexpensive soldering pencils, inexpensive is a nice way to say cheap. This is labeled Radio Shack and has a selector switch for 15 Watt or 30 Watt. So I place it in the 30 watt position and I read ~479.5 Ohms, I reverse my ohmmeter leads and read 479.5 Ohms (same reading). I select the 15 Watt position and read open circuit on my Fluke 87 but when I reverse the leads I read ~256.8 Ohms. My guess would be there is a diode lurking about in there. :)

    Ron

  20. Reloadron

    Reloadron Well-Known Member Most Helpful Member

    Joined:
    Dec 23, 2009
    Messages:
    6,783
    Likes:
    281
    Location:
    Cleveland, Ohio USA
    Popular during the 70s. A 200 Watt (per channel) stereo amplifier in reality could be a 70.7 watt stereo amplifier. Wow, 200 watts of booming peak to peak power! :)

    Ron

  21. throbscottle

    throbscottle Well-Known Member

    Joined:
    Feb 1, 2012
    Messages:
    1,802
    Likes:
    113
    Location:
    Nuneaton, Warwickshire, UK
    This was mid-noughties, and even peak to peak wouldn't meet the power stated on the box. Crazy.
