Datasheet for DPM UP5135? Help!!!

Status
Not open for further replies.

Night Rider

Member
Is there anyone with a datasheet for the digital panel meter (DPM) UP5135 in english? if you dont have, what is the circuitry to make it voltmeter and amperemeter? please help.
thanks!

This is all I could Find on it.

digital panel meter (DPM) UP5135

https://www.gmelectronica.com.ar/catalogo/pag15.html

UP5135 Led Red
3 ½ 14.2 ± 199.9 mV/ 19.99 V
o 1.999 V / 199.9 V 5 VDC
(100 mA) ICL7107CPL

**broken link removed**

UP5135-1
UP6135-1
UP8135-1 ±199.9mV ±(0.3%+2) 10V


UP5135-2
UP6135-2
UP8135-2 ±1.999V ±(0.3%+2) 100V

UP5135-3
UP6135-3
UP8135-3 ±19.99V ±(0.3%+2) 250V

Max. Display 1999(3 1/2)/19999(4 1/2)
Input Mode Single ended input
Sampling time About 1.5/sec.
Aux. Power Supply DC 5V
Display LCD

Moderators, one of you apparently deleted the shotgun posts in the other two forums. Unfortunately, I had posted a reply in one of them which was probably as close to the right answer as our OP is going to get. Had I seen this thread then, I would have posted here.

Ron H said:
Moderators, one of you apparently deleted the shotgun posts in the other two forums. Unfortunately, I had posted a reply in one of them which was probably as close to the right answer as our OP is going to get. Had I seen this thread then, I would have posted here.

Hi Ron,

Yes, he posted in three forums, so I PM'd him and deleted the spurious posts.

thanks all of you but i know these characteristics. i found a pdf which is in Chechish languague and i dont understand it well, it isn't in english. the up5135 has 14 pin at the back side. 2 for supply, 2 for the input, and other 10 pins with which determines the point of the display. i dont know what the oter pins do, and i want to know this because i dont know to do any mistake in the connection. Please reply me if you know something about that and if you have any circuit to see the difference between making it voltmeter and amperemeter.
Thanks again to all of you!

As I posted before, but the moderator deleted, I went here and searched for your part number. If you click on one of the "info" buttons, you will find it is made by **broken link removed**. The I-type voltmeter has a **broken link removed** that includes basic voltmeter and ammeter schematics. I think the part numbers are different because the UP5135 is an OEM label for Elfa.

Thank you a lot! I found some instructions for this DPM, but your help was very important. You help me very much.
Thanks again!!!

UP5135 Volt Ammeter

Hi

I found this post before receiving the connection details.

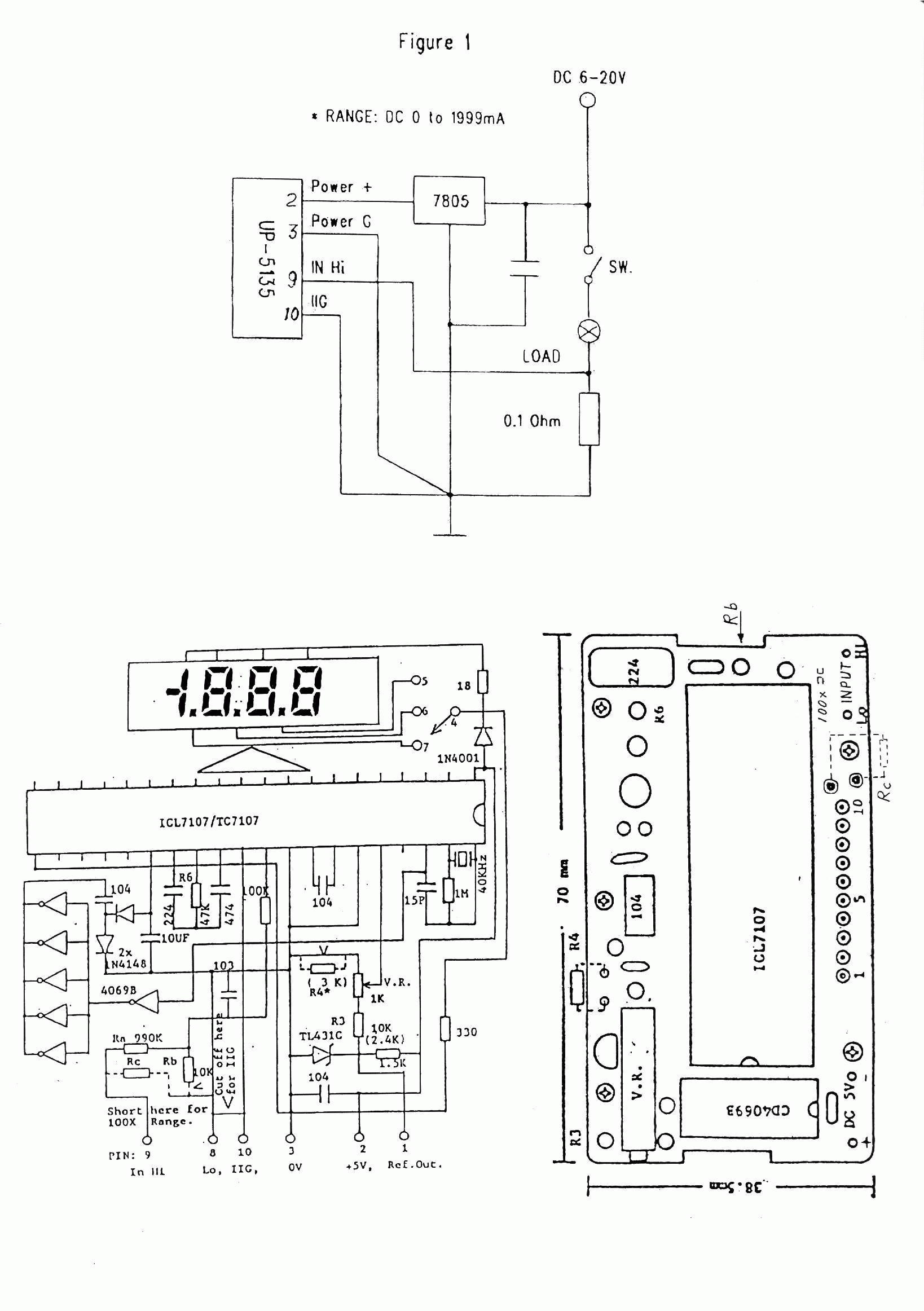

For anyone else pls find the circuit connection & wiring diagram.

regards


Attachments

  • UP5135 DC20v 100A meter.pdf
    333 KB · Views: 2,696

Attachments

  • UP5135 Volt Ammeter.gif
    UP5135 Volt Ammeter.gif
    306.1 KB · Views: 2,823
  • UP5135_Panel Meter_07691900.pdf
    392.7 KB · Views: 1,247
