Cheap system voltage booster

Discussion in 'Renewable Energy' started by ChrisOfBristol, May 10, 2017.

  1. ChrisOfBristol

    ChrisOfBristol Member

    Joined:
    May 21, 2012
    Messages:
    35
    Likes:
    0
    I have been given a 250W solar panel with a maximum output of about 44V. I believe there are two types of controllers (MPPT, PWM) but don't know anything about them and don't want to spend a lot of money on one, as my main aim is main to provide garage lighting.
    • I can make a charger for the 12V lead-acid battery (probably from a circuit on this site :)).
    • I can connect 12V LEDs to the battery.
    • I have an inverter if I want 220V AC for lighting or an electric drill.

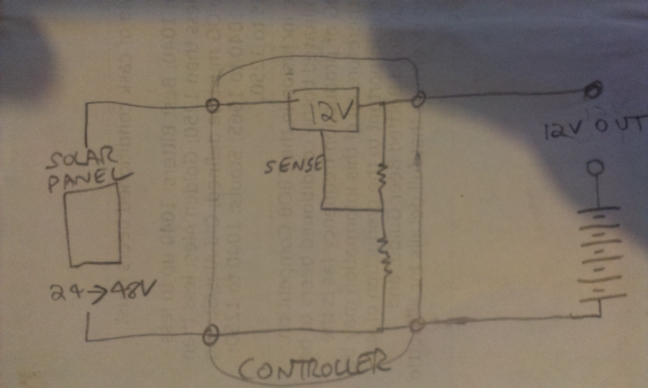

    If the battery is a bit flat or I want a lot of current, it would be good to be able to boost the battery output voltage with the solar panel. If I get a 48V to 12V DC converter and I'm assuming they have an internal output voltage sensor similar to an LM317, I could connect it as in the circuit below. It sounds alright to me, but I suspect that someone is going to tell me that it's a really bad idea!

    Last edited: May 10, 2017
  2. audioguru

    audioguru Well-Known Member Most Helpful Member

    Joined:
    Mar 16, 2004
    Messages:
    32,521
    Likes:
    943
    Location:
    Canada, of course!
    Your LM317 will get very hot then shutdown because the voltage across it times the current in it is the amount of heating. Nothing limits the charging current so the LM317 will deliver its maximum current which is about 2.2A or more.
    A 12V lead-acid battery is dead at 12V. It charges with 13.8V to 15V.

  3. MikeMl

    MikeMl Well-Known Member Most Helpful Member

    Joined:
    Mar 17, 2009
    Messages:
    11,099
    Likes:
    562
    Location:
    AZ 86334
    What do you mean by "boosting the battery output voltage"?

    A 44V open-circuit panel will be rated at a Vmppt of about 30V, meaning that when the current from the panel is such that the Panel voltage drops to ~30V (~ 8A for a 250W panel), the power out of the panel will be maximum. This would require a switch-mode charge controller that accepts inputs from ~24V to ~48V while delivering ~14V to your single battery.

    Doing this brute force using a linear regulator would dissipate lots of power as heat in the regulator (will require a huge heat sink), and you will be wasting more than half of the available panel power.

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. ChrisOfBristol

    ChrisOfBristol Member

    Joined:
    May 21, 2012
    Messages:
    35
    Likes:
    0

    LOL - the 33 amp LM317! I wrote "a 48V to 12V DC converter and I'm assuming they have an internal output voltage sensor similar to an LM317"...not literally an LM317...
    You are right, so aiming at 12V won't work. I think it's the current that needs boosting, but I don't think it's going to be practical to adapt any other sort of voltage/current regulator.

    I've had a look online for solar panel charge controller circuits and for cheap ready-made controllers. I conclude that with the complexity of the circuit and the cost of parts, it wouldn't make much sense to make one as I have found several modules on ebay for less than £15.

    Last edited: May 11, 2017
