CF-40AC Ver A. WAECO Fridge.

Discussion in 'Repairing Electronics' started by debe, Jul 8, 2017.

  1. debe

    debe Active Member

    Joined:
    Mar 26, 2011
    Messages:
    538
    Likes:
    30
    Location:
    South Australia

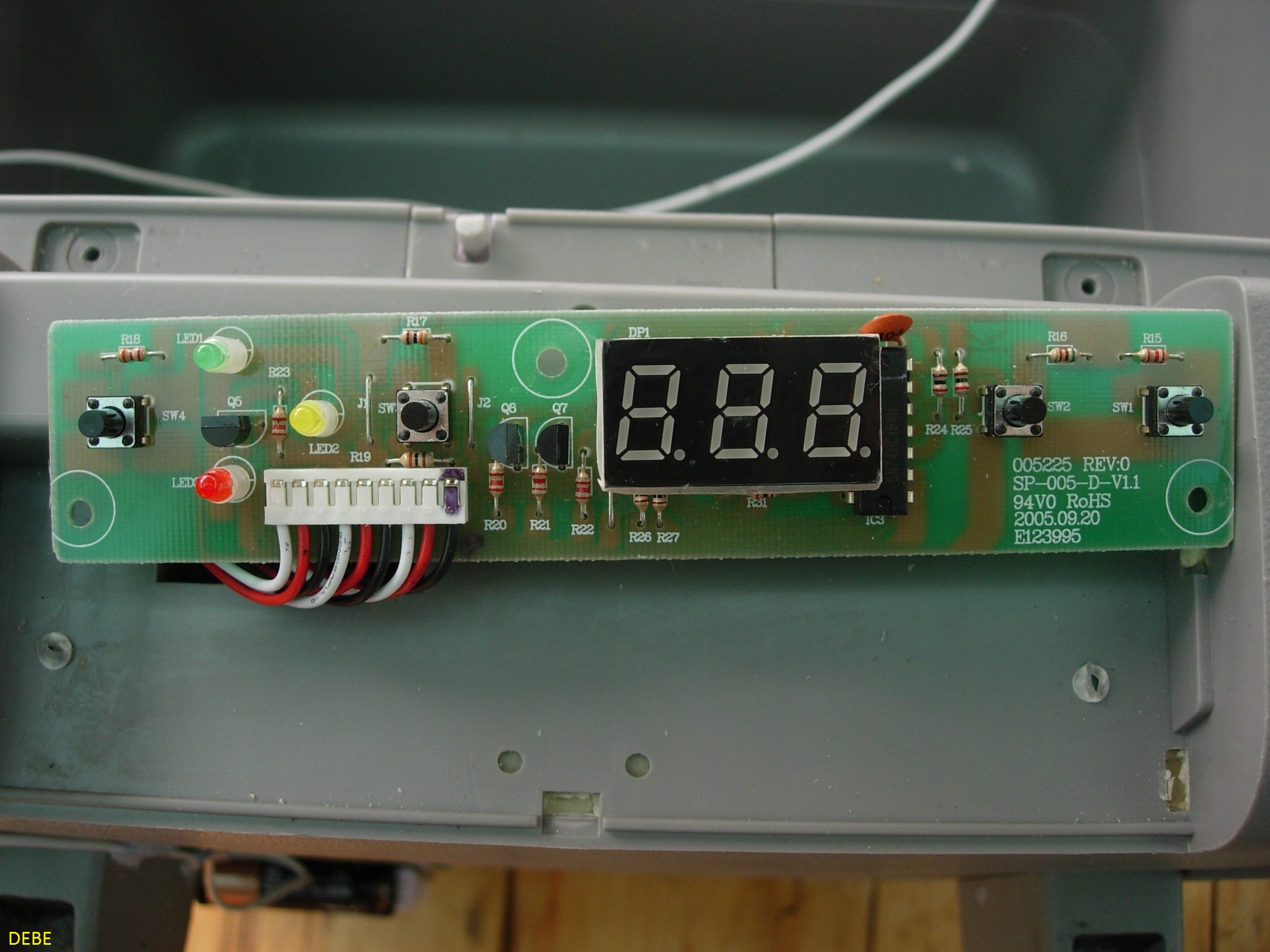

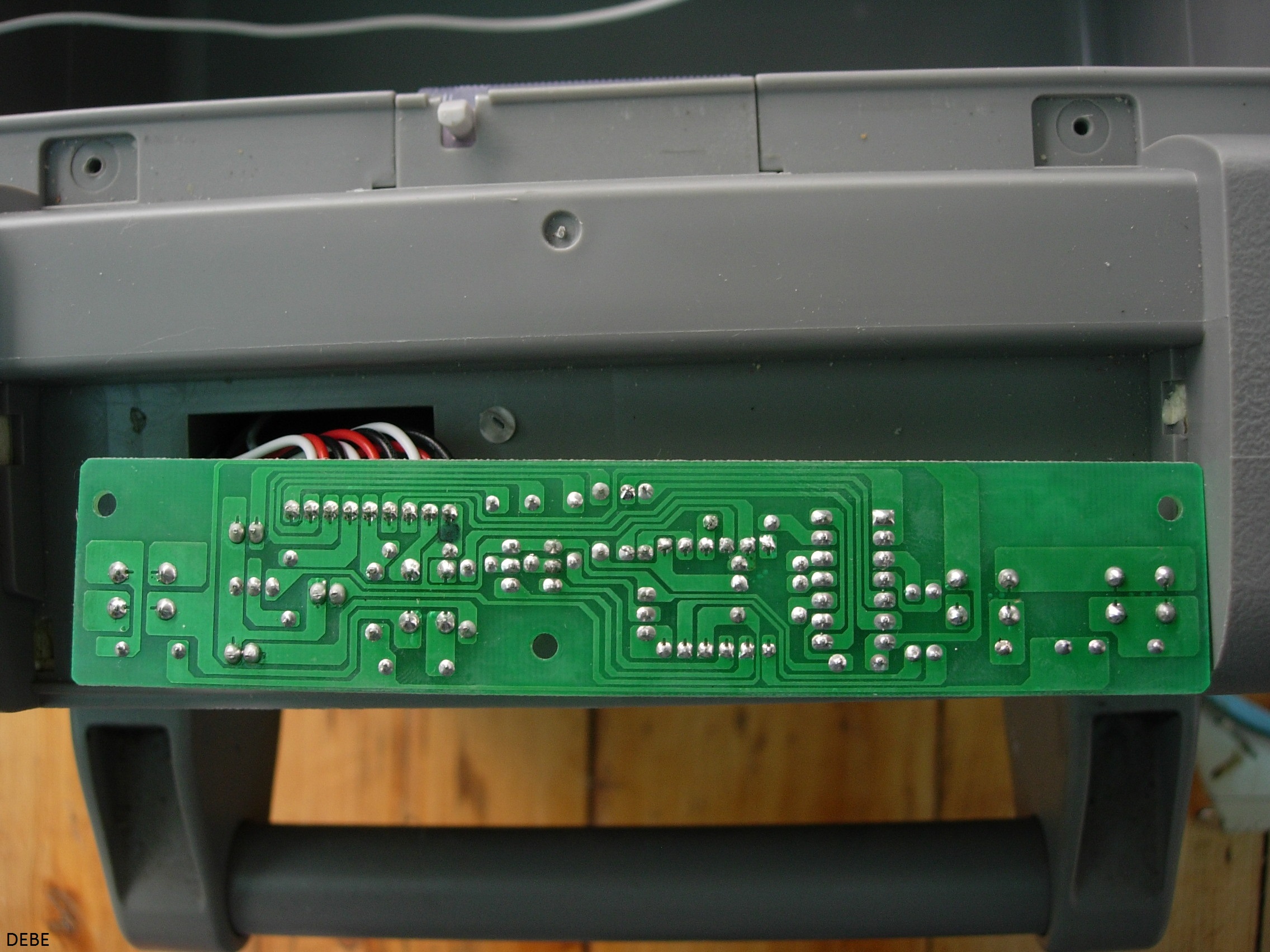

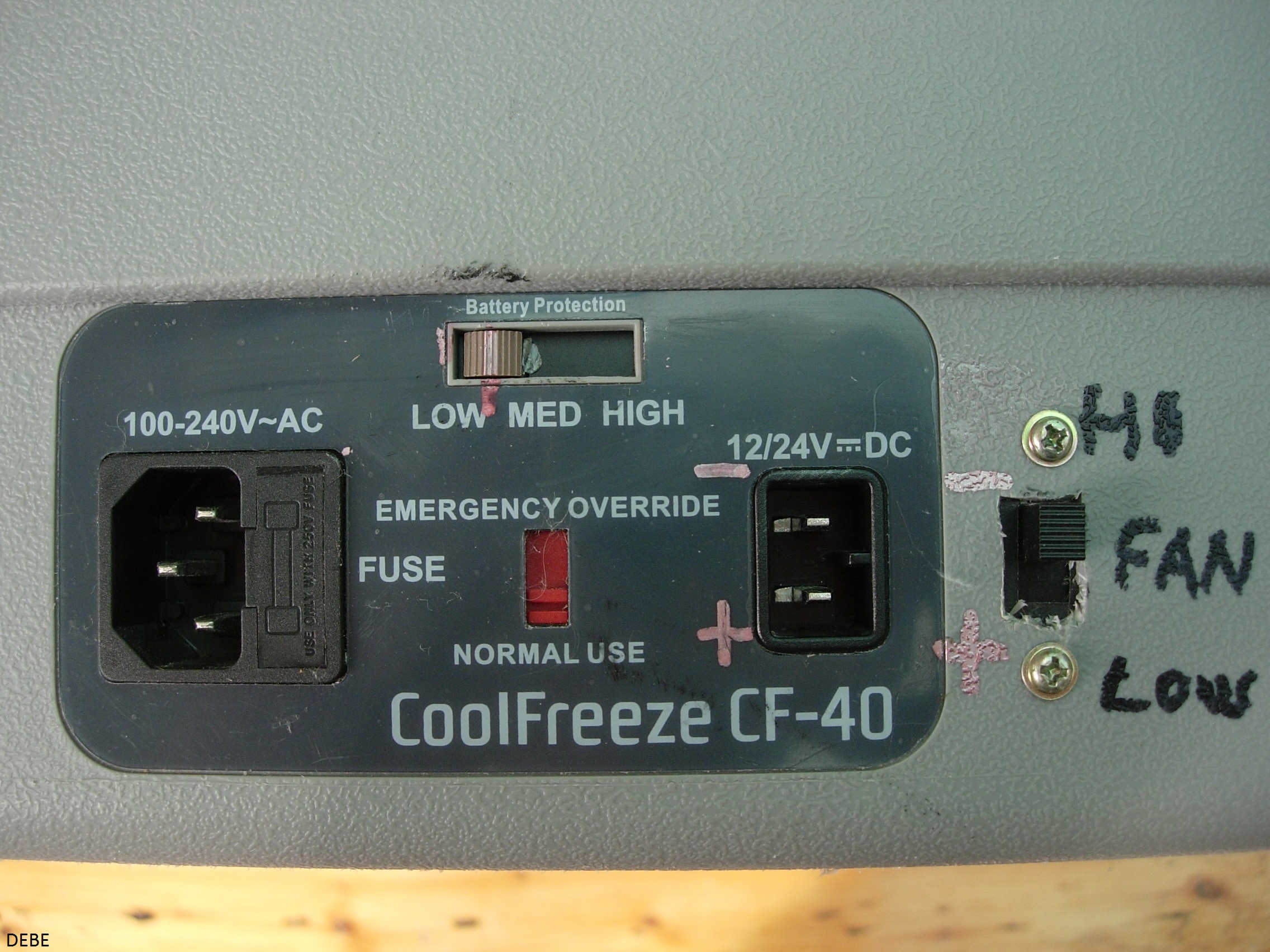

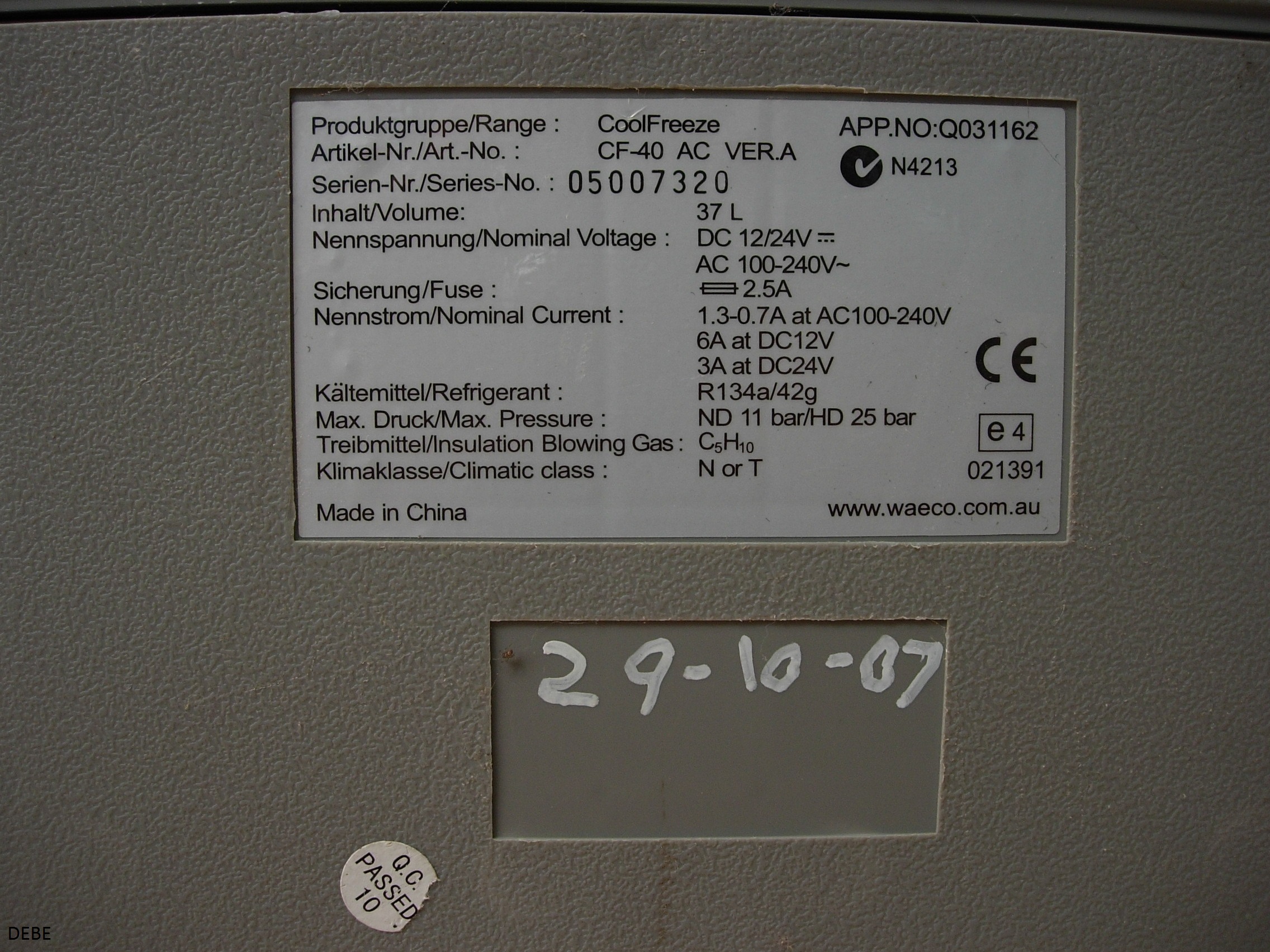

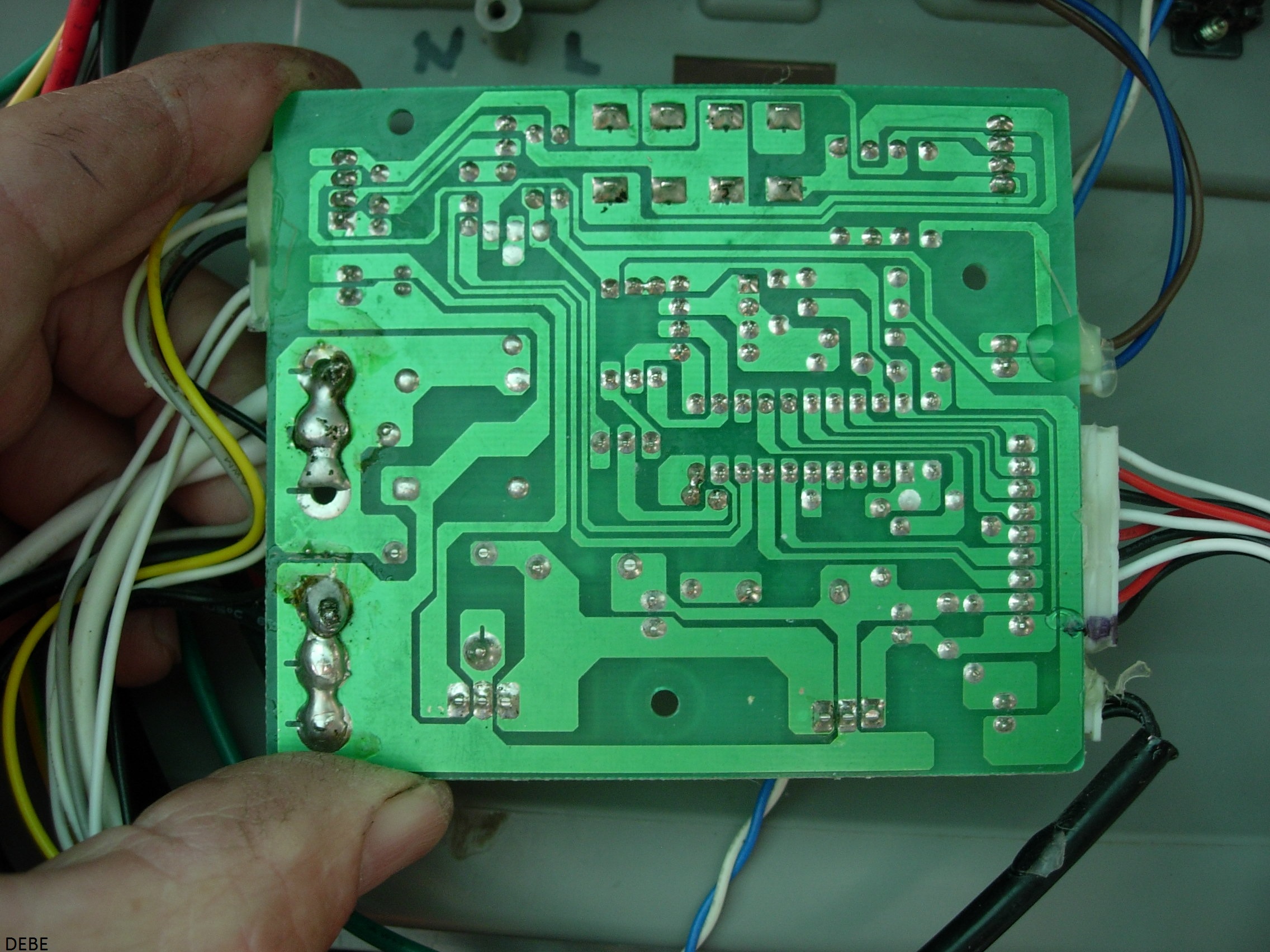

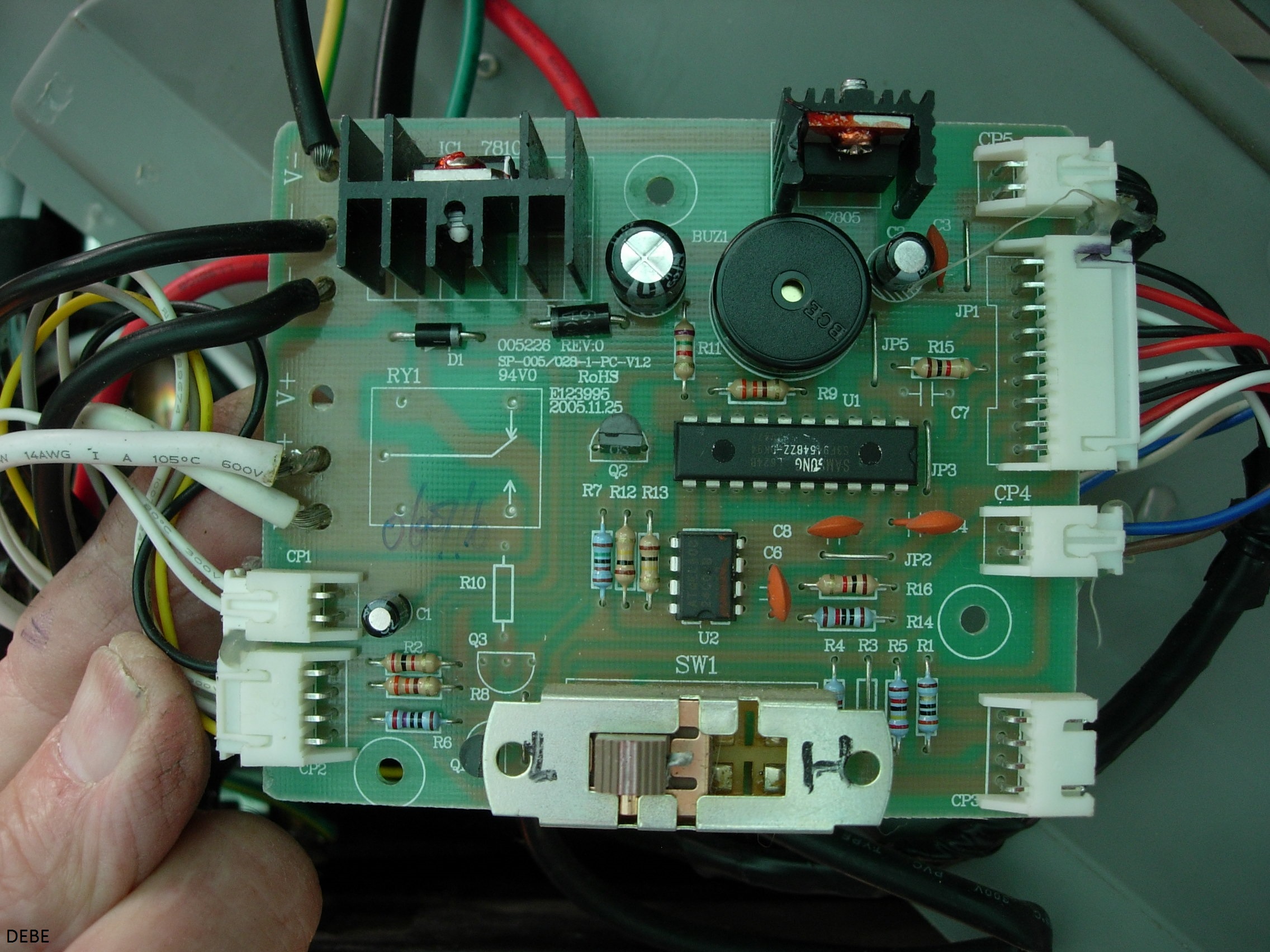

    CONT PANEL.1.JPG CONT PANEL.2.JPG CONT PANEL.3.JPG PCB COMP SIDE.1.JPG PCB TRACK SIDE.1.JPG POWER SOCKETS.JPG SPEC PLATE.JPG WAECO CD-40AC VERA SMPS.JPG WAECO CF-40 Ver A control panel.jpg WAECO CF-40 Ver A Main circ board..jpg Information on Waeco CF 40 verA fridge. CONT PANEL.1.JPG CONT PANEL.2.JPG CONT PANEL.3.JPG PCB COMP SIDE.1.JPG PCB TRACK SIDE.1.JPG POWER SOCKETS.JPG SPEC PLATE.JPG WAECO CD-40AC VERA SMPS.JPG

  2. Ian Rogers

    Ian Rogers Super Moderator Most Helpful Member

    Joined:
    Mar 28, 2011
    Messages:
    9,145
    Likes:
    907
    Location:
    Rochdale UK
    You forgot any text!!! I take it it's faulty?

  3. debe

    debe Active Member

    Joined:
    Mar 26, 2011
    Messages:
    538
    Likes:
    30
    Location:
    South Australia

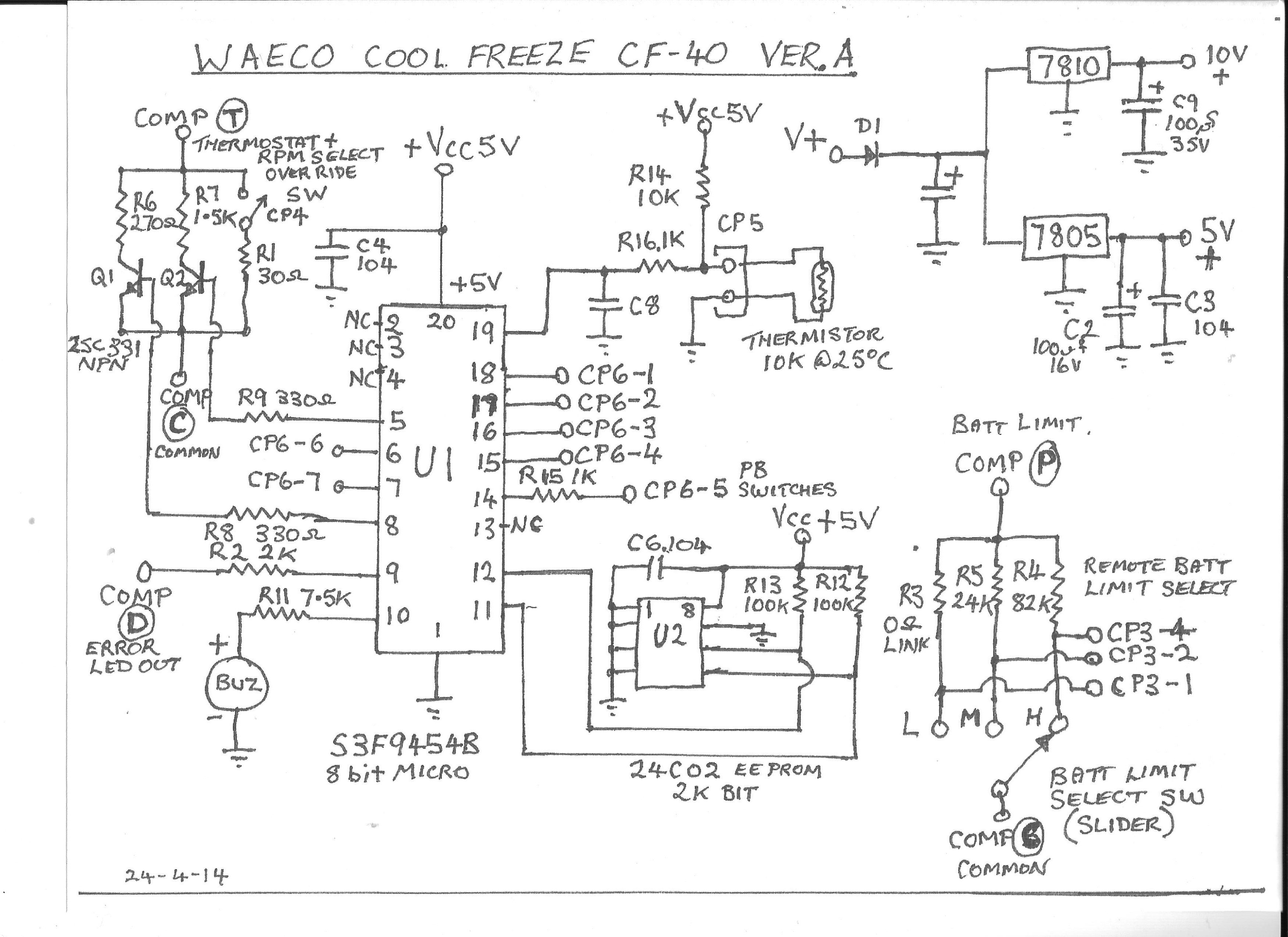

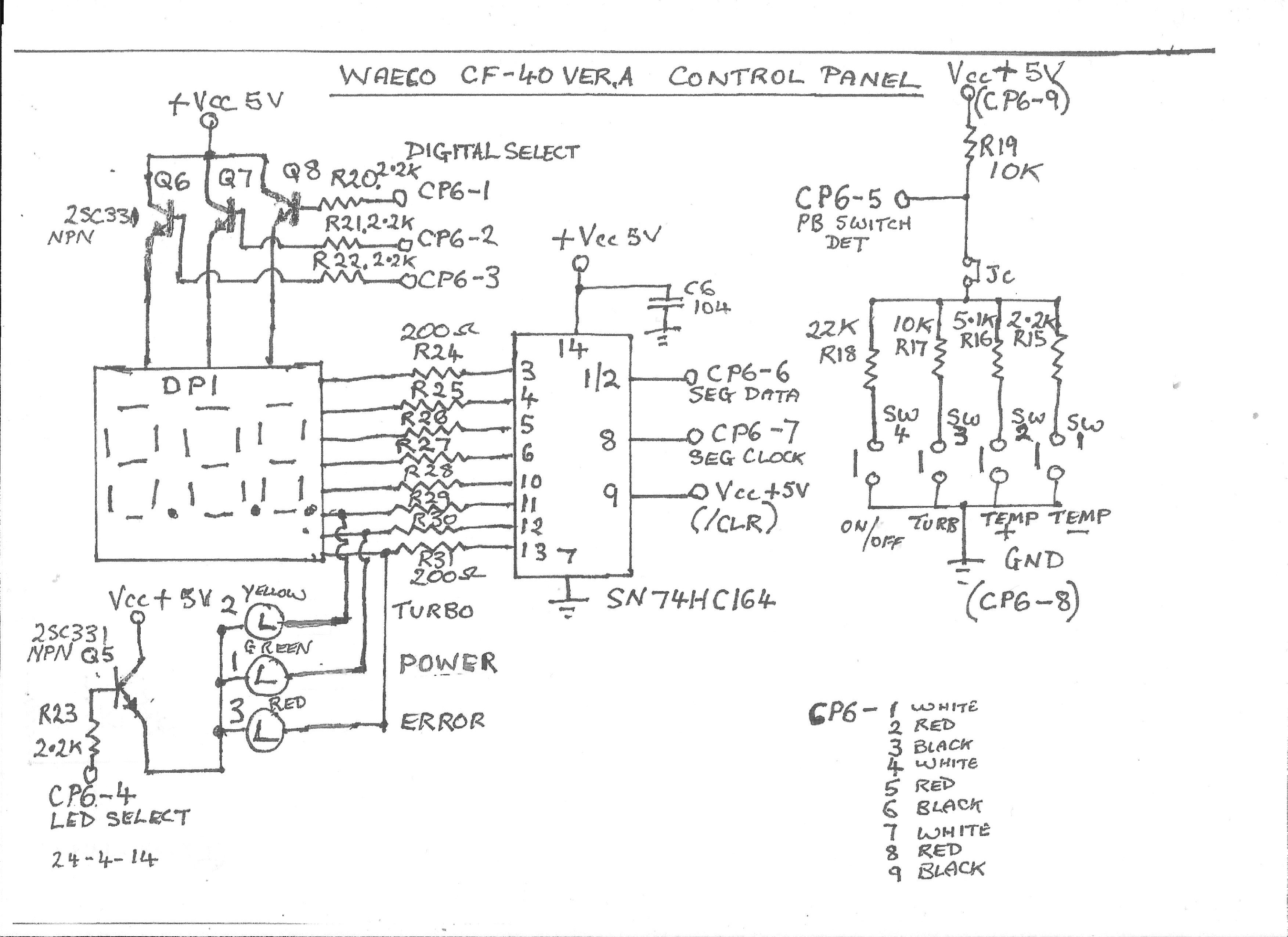

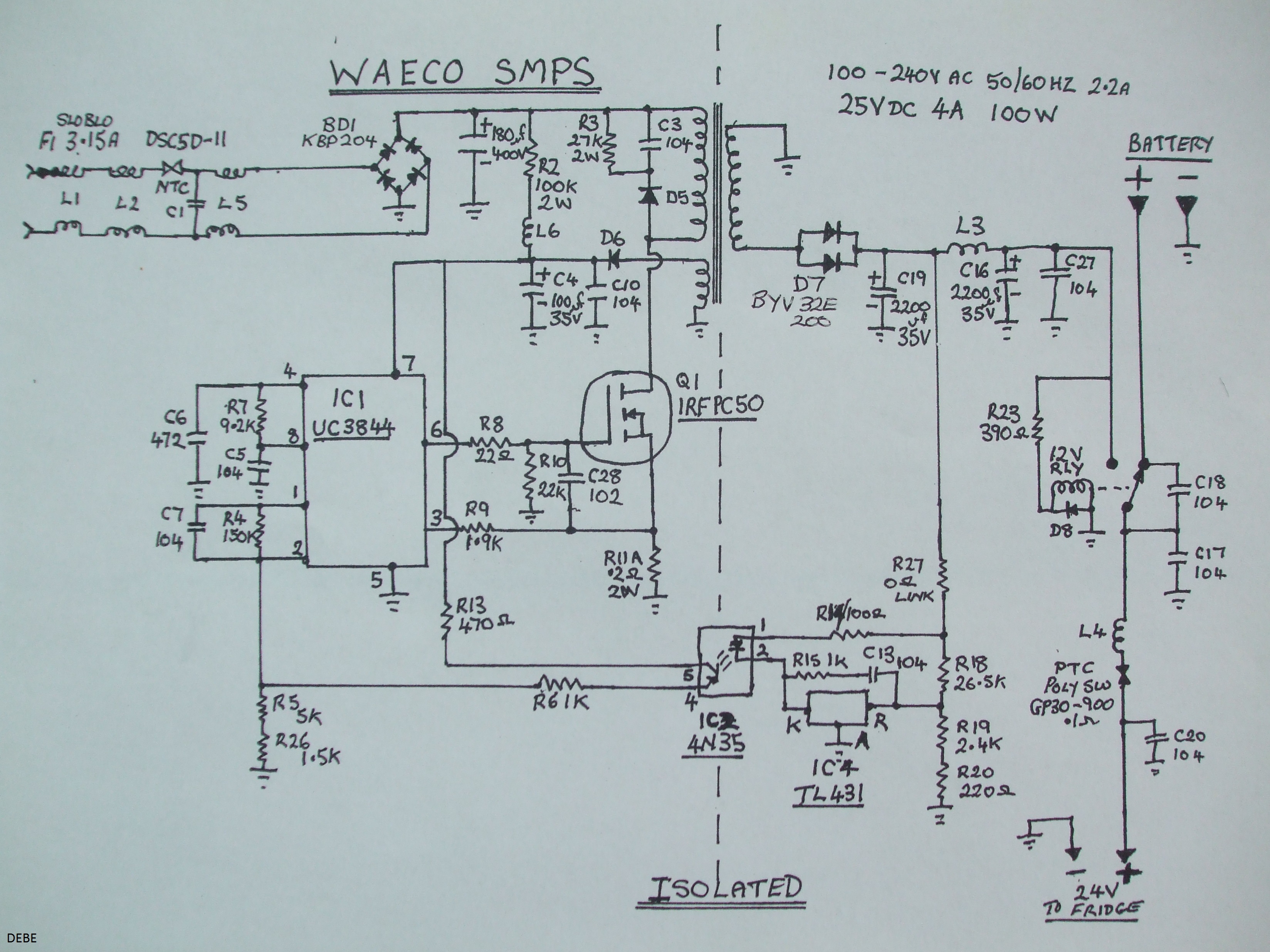

    No its not Ian, there was text but it disappeared & double the pictures for some reason. Its my fridge & I drew up the circuit for it as theres non available. Just it may be helpful for some one.
