CD4043, 44 models

[ronv]

Does anyone have a CD4043 and 4044 spice model?



[ericgibbs]

Does anyone have a CD4043 and 4044 spice model?

hi Ron,
I have not seen one on the web.

If you have the d/s for 4043 , you could create an hierarchical model, using the d/s logic diagram.

Eric



[ronv]

Hmm, I've not tried to do that before, but maybe not to hard to make out of the CD AND gates. Here goes another sleepless night.



[konradIC13]

Dont know if it will work, here are models from Multisim for 4043 and 4044
https://pastebin.com/abwg6Vk7
https://pastebin.com/s13WXQ7u



[ericgibbs]

Hmm, I've not tried to do that before, but maybe not to hard to make out of the CD AND gates. Here goes another sleepless night.

hi Ron,

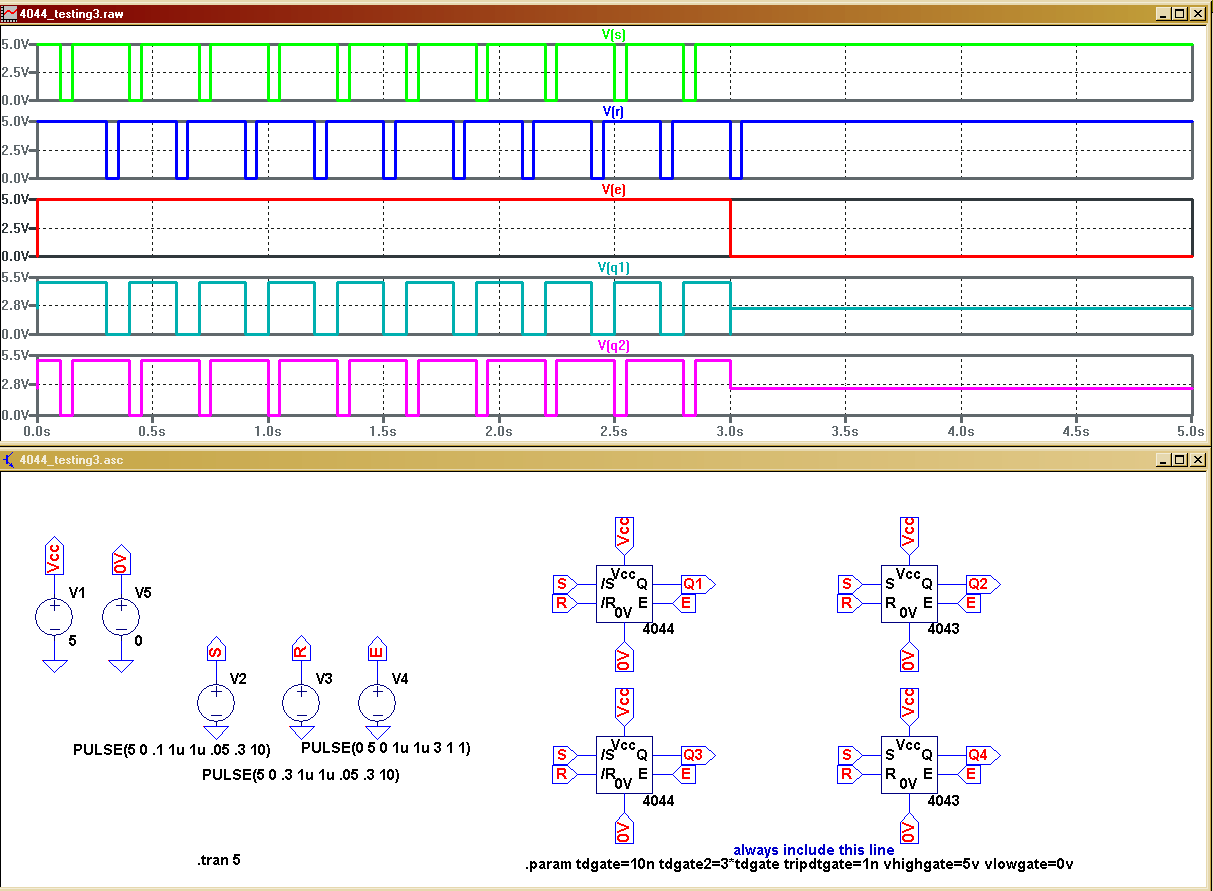

This zip is for the 4043 and its hierarchical model, place all the files in the same folder except the 4043.asy, which goes into the Sym folder.

You can do a 4044 using the digital building blocks from the 4043 model.

Lets know if you have a problem.

E

EDIT:
Added the 4044 files.



[ronv]

Thanks Eric! I'll give it a go.

You are a gem!



[ronv]

Dont know if it will work, here are models from Multisim for 4043 and 4044

Thanks Konrad. I don't think they interchange, but thanks for the try.



[Mudares]

hi Ron,
This zip is for the 4043 and its hierarchical model, place all the files in the same folder except the 4043.asy, which goes into the Sym folder.

You can do a 4044 using the digital building blocks from the 4043 model.

Lets know if you have a problem.

E

EDIT:
Added the 4044 files.

Sorry for waking this old thread, but I'm wondering where is the zip file you had mentioned?



[ericgibbs]

hi M.
They have been deleted for some reason.???
These asc are from my old files, let me know if its enough.
E



[ericgibbs]

hi,
These are the asy files.
E



[DerStrom8]

Unfortunately there was a problem with the server a couple of years ago and many of the images and attached files on this site were deleted. Many were restored, but not all.
