5.6V Zenner Diode - LTspice Model Need

Discussion in 'Circuit Simulation & PCB Design' started by Suraj143, Oct 15, 2017.

  1. Suraj143

    Suraj143 Active Member

    Joined:
    Jan 11, 2007
    Messages:
    1,579
    Likes:
    2
    Location:
    South Mald Isld
    Can somebody give me 5.6V zenner diode for LTspice, There is no any 5.6V zenner model.
    Version 4.23K

  2. MikeMl

    MikeMl Well-Known Member Most Helpful Member

    Joined:
    Mar 17, 2009
    Messages:
    11,094
    Likes:
    561
    Location:
    AZ 86334
    Place a generic Zener from the default lib on your page. Click on the letter D. Edit the text box to replace "D" with "Z5p6" ( do not click on the body of the Zener symbol itself).

    Now paste the string on the next line into the text box with comes from clicking on .OP

    .model Z5p6 D(Is=1.5n Rs=.5 Cjo=185p nbv=3 bv=5.6 Ibv=1m)

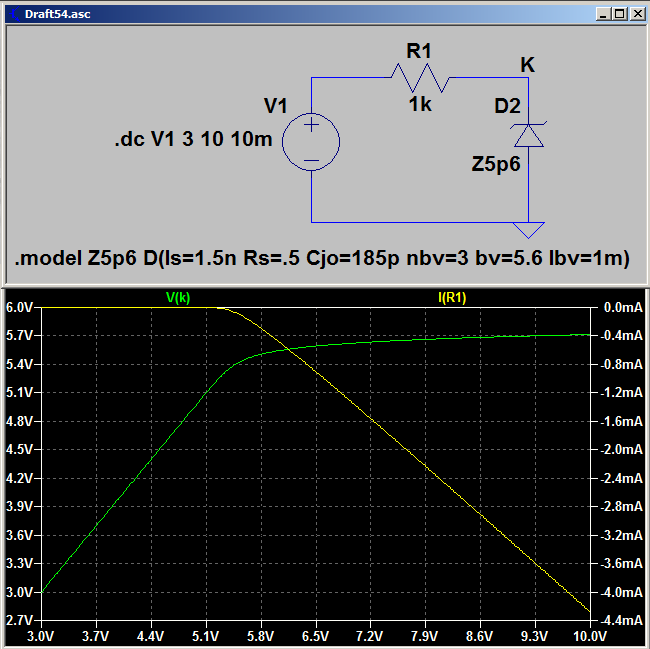

    The .model statement has to be placed somewhere on the schematic. See here:


    • Informative Informative x 1
  3. crutschow

    crutschow Well-Known Member Most Helpful Member

    Joined:
    Mar 14, 2008
    Messages:
    10,610
    Likes:
    478
    Location:
    L.A., USA Zulu -8

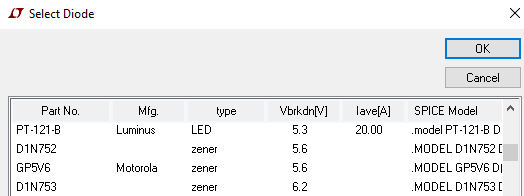

    My LTspice IV has two 5.6V Zener models:


  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. Suraj143

    Suraj143 Active Member

    Joined:
    Jan 11, 2007
    Messages:
    1,579
    Likes:
    2
    Location:
    South Mald Isld

    Hi I cannot find .OP Where is it?

  6. Suraj143

    Suraj143 Active Member

    Joined:
    Jan 11, 2007
    Messages:
    1,579
    Likes:
    2
    Location:
    South Mald Isld
    Can you tell me whats the version? My one is LT spice IV version 4.23K.

  7. crutschow

    crutschow Well-Known Member Most Helpful Member

    Joined:
    Mar 14, 2008
    Messages:
    10,610
    Likes:
    478
    Location:
    L.A., USA Zulu -8
    Mine is 4.22k.

  8. alec_t

    alec_t Well-Known Member Most Helpful Member

    Joined:
    Jul 10, 2011
    Messages:
    9,283
    Likes:
    1,222
    Location:
    Cardiff, Wales
    .OP is at the top right of your screen.

  9. Pommie

    Pommie Well-Known Member Most Helpful Member

    Joined:
    Mar 18, 2005
    Messages:
    10,080
    Likes:
    326
    Location:
    Brisbane Australia
    I've got the most up to date LTspice XVII and it hasn't got a 5.6V zener.

    Mike.

  10. crutschow

    crutschow Well-Known Member Most Helpful Member

    Joined:
    Mar 14, 2008
    Messages:
    10,610
    Likes:
    478
    Location:
    L.A., USA Zulu -8
    Apparently, for some odd reason, they eliminated those Zeners in later editions of LTspice.

  11. GromTag

    GromTag Active Member

    Joined:
    Nov 23, 2016
    Messages:
    307
    Likes:
    41
    Location:
    North Carolina
    Favoring towards adjustable reference devices instead of continued adding per individual Zener? (Referring to the programs possible reduction of size and continuous updates by adding list of models "out of the box")
    The only reason to remove models instead of updating them regarding in thoughts.

  12. crutschow

    crutschow Well-Known Member Most Helpful Member

    Joined:
    Mar 14, 2008
    Messages:
    10,610
    Likes:
    478
    Location:
    L.A., USA Zulu -8
    Here's my LTspice model for the D1N752 5.6V Zener:
    You can put it in the standard.dio file in the LTspice cmp library

    .MODEL D1N752 D(IS=1E-11 RS=6.168 N=1.27 TT=5E-8 CJO=3.766E-10 VJ=0.75 M=0.33 BV=5.477 IBV=0.01 type=zener vpk=5.6)

  13. Suraj143

    Suraj143 Active Member

    Joined:
    Jan 11, 2007
    Messages:
    1,579
    Likes:
    2
    Location:
    South Mald Isld
    Thank you very much.

  14. ci139

    ci139 Active Member

    Joined:
    Apr 12, 2012
    Messages:
    469
    Likes:
    37

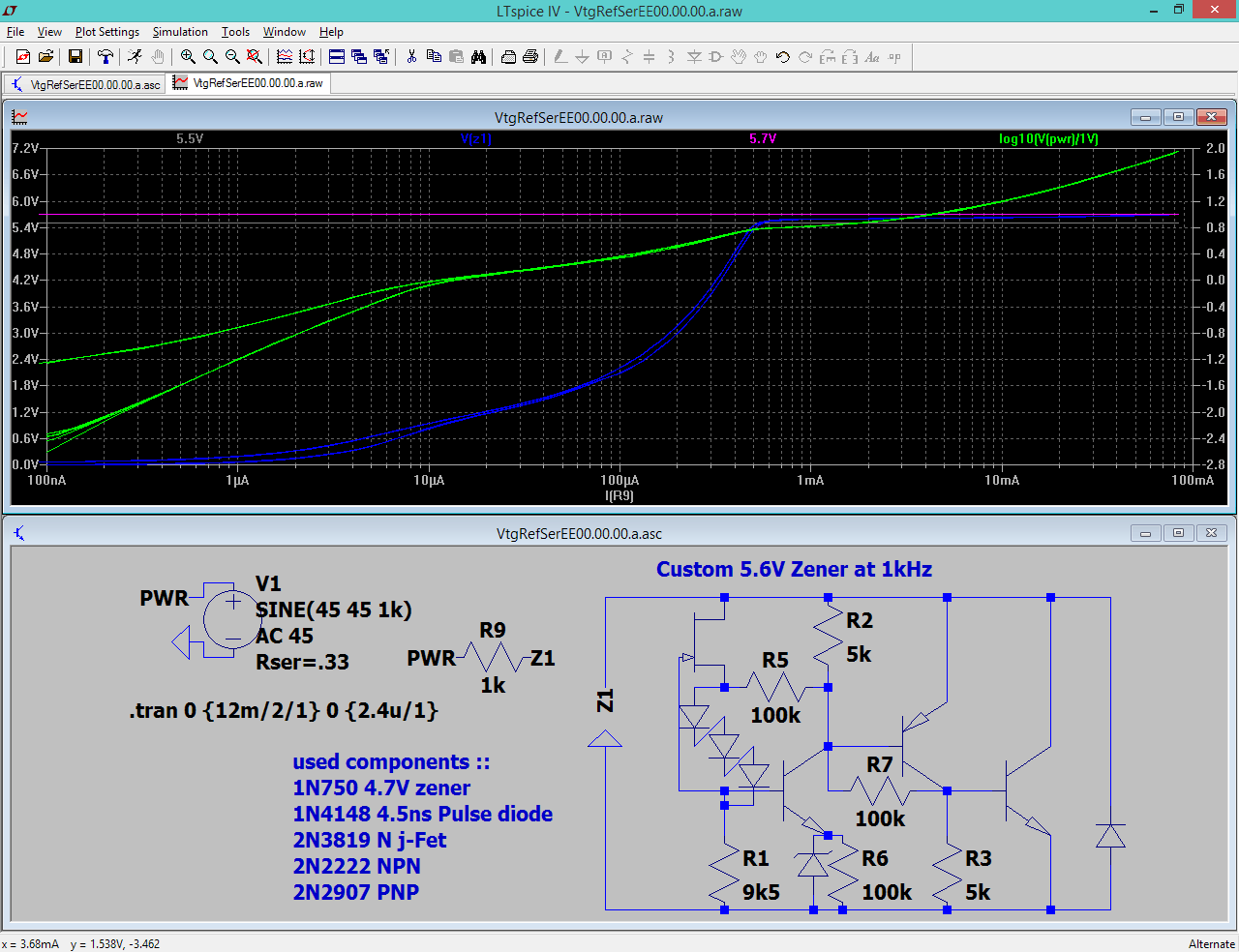

    the target app./env. defines what you need (here is moderate to low frequency v.)
    in some occasions you can just tile the number of 2N2222-s with BC or BE or EC tied together apx 700mV drop for each
