1000 watts power ampifier

Discussion in 'Electronic Projects Design/Ideas/Reviews' started by abet-ad, Sep 23, 2003.

  1. abet-ad

    abet-ad New Member

    Joined:
    Aug 30, 2003
    Messages:
    1
    Likes:
    0
    i want to assemble 1000 watts amplifier using TDA2005M IC please help me and give me a sample circuit or any amplifier circuit 1000 watts with unexpensive components

  2. mozikluv

    mozikluv New Member

    Joined:
    Aug 14, 2003
    Messages:
    371
    Likes:
    0
    Location:
    Philippines
    1000w amp using tda2005m

    :D hi there abet-ad, so you want to use tda2005m, do you have the datasheet of this chip, just follow their amp application its reliable. :D

    i now have my file on this chip and it says its a dual amp chip with an output of 6.5w rms per channel or 20w bridge mode.

    did i read you right when you said 1000w from the tda2005, somebody must be pulling your leg. :wink:

    just remembered, there a circuit diagram using this chip in this forum, go to PROJECTS - 20w amp :lol:

  3. Klaus

    Klaus New Member

    Joined:
    May 29, 2003
    Messages:
    556
    Likes:
    1
    Location:
    Australia
    I think that you are rather unrealistic with your request. Have you *any* idea how much speakers that can handle 1000W cost? Do not let yourself be misled by big numbers for output power :D
    Now the TDA2005M is a 20 Watt audio amplifier. Forget about boosting its output to 1 Kw, it's not worth the bother, even if you were to find a circuit.

    You can find a circuit to make a an amplifier with that chip - at its rated output- by simply typing in Google 'tda2005m'. That's what I did, found the link there to this site: http://www.maplin.co.uk/?userid=SearchEngine&targetmodule=2263

    While you're at googling, just check on speakers that can handle 1000W. Maybe that ought to bring you back down to the real world
    :wink:
    Klaus

  4. dave

    Dave New Member

    Joined:
    Jan 12, 1997
    Messages:
    -
    Likes:
    0



  5. Exo

    Exo Active Member

    Joined:
    Sep 18, 2003
    Messages:
    1,953
    Likes:
    1
    Location:
    Belgium

    This is a 1Kw amp
    [​IMG]
    (picture taken from www.aussieamplifiers.com)
    Imagine a power supply for that :shock:


    They can't put a 1000w amp into a single chip (yet) and building one WILL be expensive

  6. bogdanfirst

    bogdanfirst New Member

    Joined:
    Dec 13, 2002
    Messages:
    1,310
    Likes:
    1
    Location:
    Ramnicu Valcea, Romania
    look at that heatsink!!!!!!!
    now, i know that what type of power you are talking about is PMPO wich is musical power.

  7. Someone Electro

    Someone Electro New Member

    Joined:
    Sep 10, 2003
    Messages:
    2,579
    Likes:
    2
    Location:
    A boring village in Europe (slovene)
    a 1000W amp !??? :shock: :shock:

    What wod you do with all the power
    And a power suply!

    100W amp can be realy realy realy realy realy loud!

  8. Exo

    Exo Active Member

    Joined:
    Sep 18, 2003
    Messages:
    1,953
    Likes:
    1
    Location:
    Belgium
    DB dragging :twisted:

  9. nettron1000

    nettron1000 New Member

    Joined:
    Aug 11, 2003
    Messages:
    300
    Likes:
    0
    Location:
    Canada
    Would make a great high teck looking heater ! :D

  10. leprien

    leprien New Member

    Joined:
    Sep 25, 2003
    Messages:
    12
    Likes:
    0
    had a 2200 watt amp

    it didnt produce that much sound powering 2 12 inch rockfords in a sealed box didn't sound much louder than my 2 15s of an offbrand and a 200 watt amp except it had a harder hit

  11. Exo

    Exo Active Member

    Joined:
    Sep 18, 2003
    Messages:
    1,953
    Likes:
    1
    Location:
    Belgium
    Car amps are seriously overrated...

    I tested a so called 800W rms amp from phoenix gold once; turns out it was actually more around 200W :)

  12. aehandasa

    aehandasa New Member

    Joined:
    Mar 18, 2005
    Messages:
    6
    Likes:
    0
    1000w!!!!!!!!!!!!!
    u r agood man 8)

  13. jrz126

    jrz126 Active Member

    Joined:
    Sep 17, 2004
    Messages:
    1,189
    Likes:
    5
    Location:
    Erie, PA - USA
  14. audioguru

    audioguru Well-Known Member Most Helpful Member

    Joined:
    Mar 16, 2004
    Messages:
    32,444
    Likes:
    935
    Location:
    Canada, of course!
    Even the monster's manufacturer doesn't know its power rating. They say 5000W and 6000W RMS. Also 10,000W and 12,000W peak music power.
    If they don't even proof-read their ads, how is their quality control?

    I had some MTX speakers. The sun shining on them through the rear window melted them.

  15. moutouloss

    moutouloss New Member

    Joined:
    Sep 21, 2004
    Messages:
    25
    Likes:
    0
    Location:
    GREECE

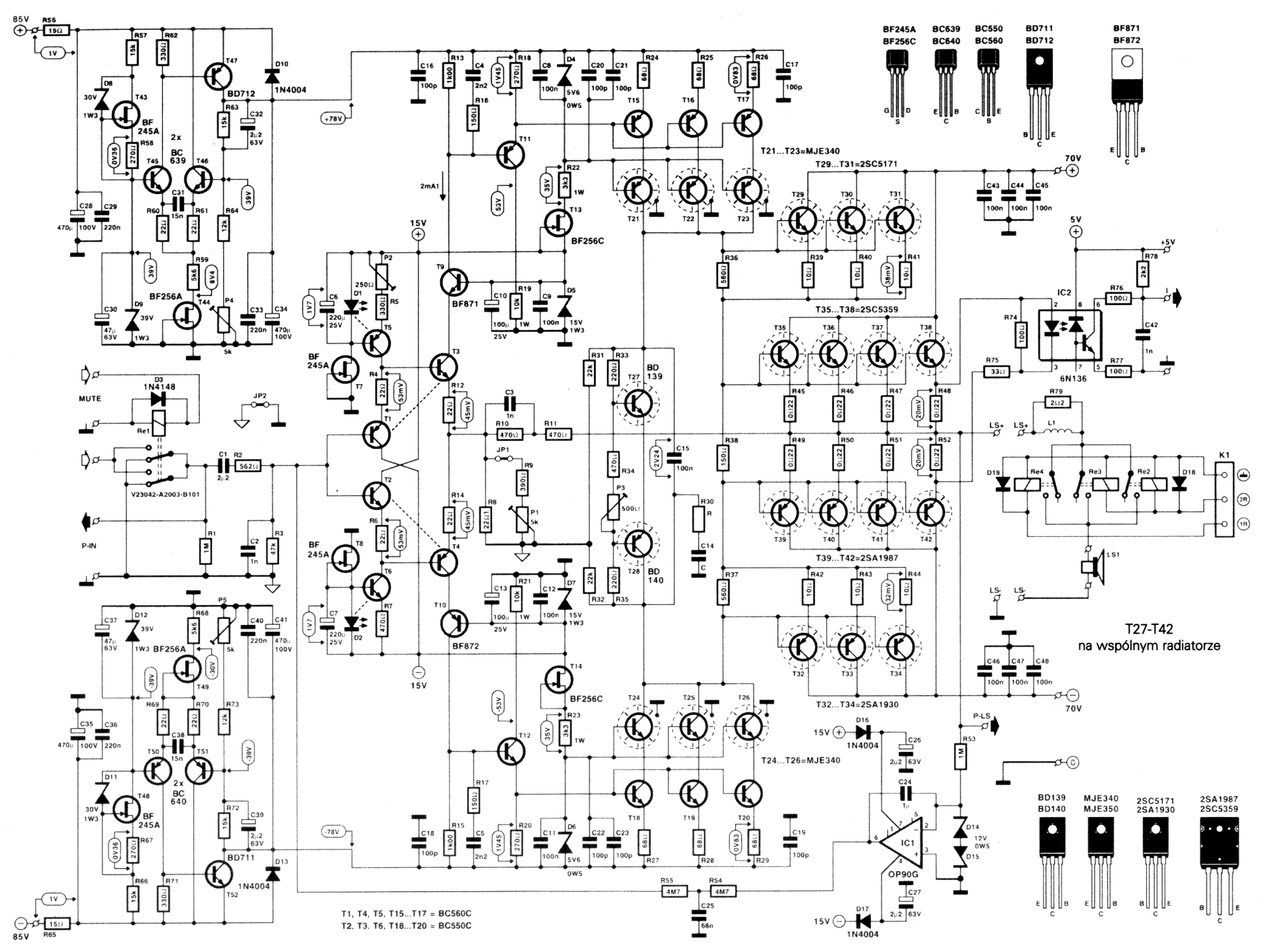

    And this is 2000W (circuit) :shock: :shock:


    (very very good amp)


    Attached Files:

  16. moutouloss

    moutouloss New Member

    Joined:
    Sep 21, 2004
    Messages:
    25
    Likes:
    0
    Location:
    GREECE

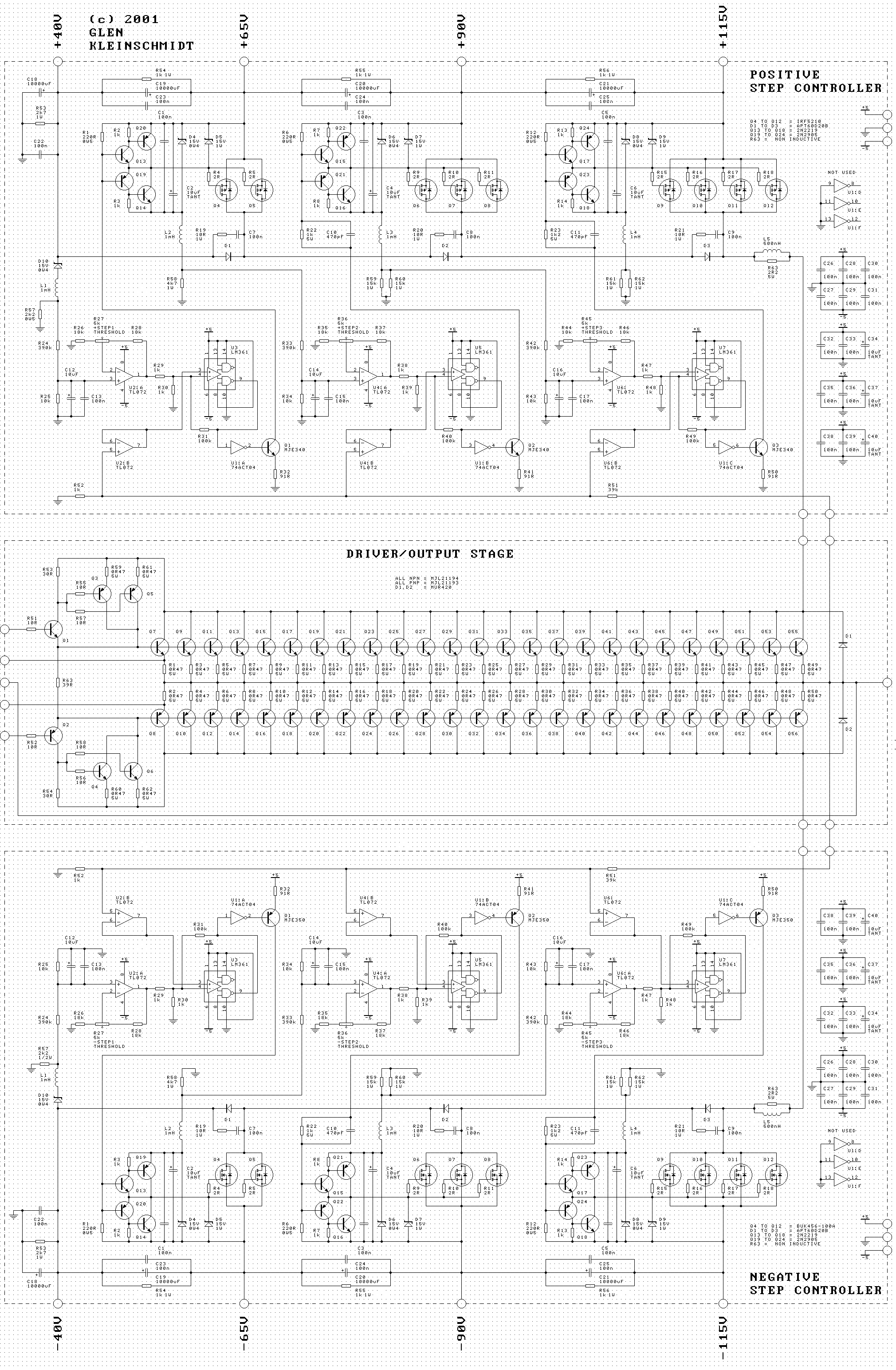

    Or this :shock: :shock: :shock: 20 000 W!!!!!!!!!!!!!!!


    Attached Files:

    • 20kw.gif
      File size:
      160 KB
      Views:
      4,055
  17. audioguru

    audioguru Well-Known Member Most Helpful Member

    Joined:
    Mar 16, 2004
    Messages:
    32,444
    Likes:
    935
    Location:
    Canada, of course!
    Hi Moutouloss,
    Did I correctly count 50 output transistors? :shock:
    Is its "step controller" used so that the supply voltage changes on demand for class-H? :?:

  18. moutouloss

    moutouloss New Member

    Joined:
    Sep 21, 2004
    Messages:
    25
    Likes:
    0
    Location:
    GREECE

    audioguru... exactly :D

  19. monkeytree

    monkeytree New Member

    Joined:
    Mar 1, 2005
    Messages:
    161
    Likes:
    0
    Location:
    hampshire england
    can you get two speakers big enough for a 20kw amp :twisted:

  20. Nigel Goodwin

    Nigel Goodwin Super Moderator Most Helpful Member

    Joined:
    Nov 17, 2003
    Messages:
    39,216
    Likes:
    640
    Location:
    Derbyshire, UK
    No :)

    But you can't get anywhere near 20KW off a standard single phase supply.

    The UK 13A plug can provide a maximum of 3KW, so you could probably have a single 2.5KW output amplifier in the UK?. The 110V supply in the USA can't supply quite as much as that, so ampifiers are more limited in their outputs.

  21. spuffock

    spuffock Member

    Joined:
    Jul 31, 2003
    Messages:
    488
    Likes:
    1
    Location:
    Oxfordshire, England
    My computer speakers handle 390W!!!!!
    The multimeter says 200 milliwatts if you push them into distortion.
    There must be something up with the multimeter.
    Damn it the other multimeter agrees with it.
    Thats two new multimeters I've got to get.


Share This Page
