0.5W amplifier TDA7052A

Discussion in 'Homework Help' started by gohzk, Nov 23, 2016.

  1. gohzk

    gohzk New Member

    Joined:
    Nov 23, 2016
    Messages:
    1
    Likes:
    0
    Hi guys i need help with my assignment below, i am not sure how to do the transistor switching circuit using the control signal from the remote control simulated using SPDT switches. i have attached the block diagram image to the post. Thank you for you time.
    [​IMG]
    Specifications: to design a 0.5W audio amplifier with music, voice and mute modes. the volume of the output must be adjustable. the design should allow end-user to select "music", "voice" and "mute". the selected choice must be indicated visually using different colored LEDs.

    The audio signals ( both voice and music) are sourced from a function generator the level of the base band signal is 200m Vp-p for frequencies rangeing from 10Hz to 20kHz.

    The end-user has a choice of selecting "music" or "voice" and "mute" mode. this is to be done via remote control which sends an appropriate control signal to a transistor switching circuit. the control signal from the remote control will be simulated using SPDT switches. the recommended supply votage to the transistor switching circuit is 5V.

    ICs: uA741; TDA7052A
    Regulators: LM78L05; LM78L08
    potentiometers: 10K; 100K; 1M
    transistors: 2N2222; 2N3904

  2. audioguru

    audioguru Well-Known Member Most Helpful Member

    Joined:
    Mar 16, 2004
    Messages:
    31,988
    Likes:
    894
    Location:
    Canada, of course!
    ONLINE

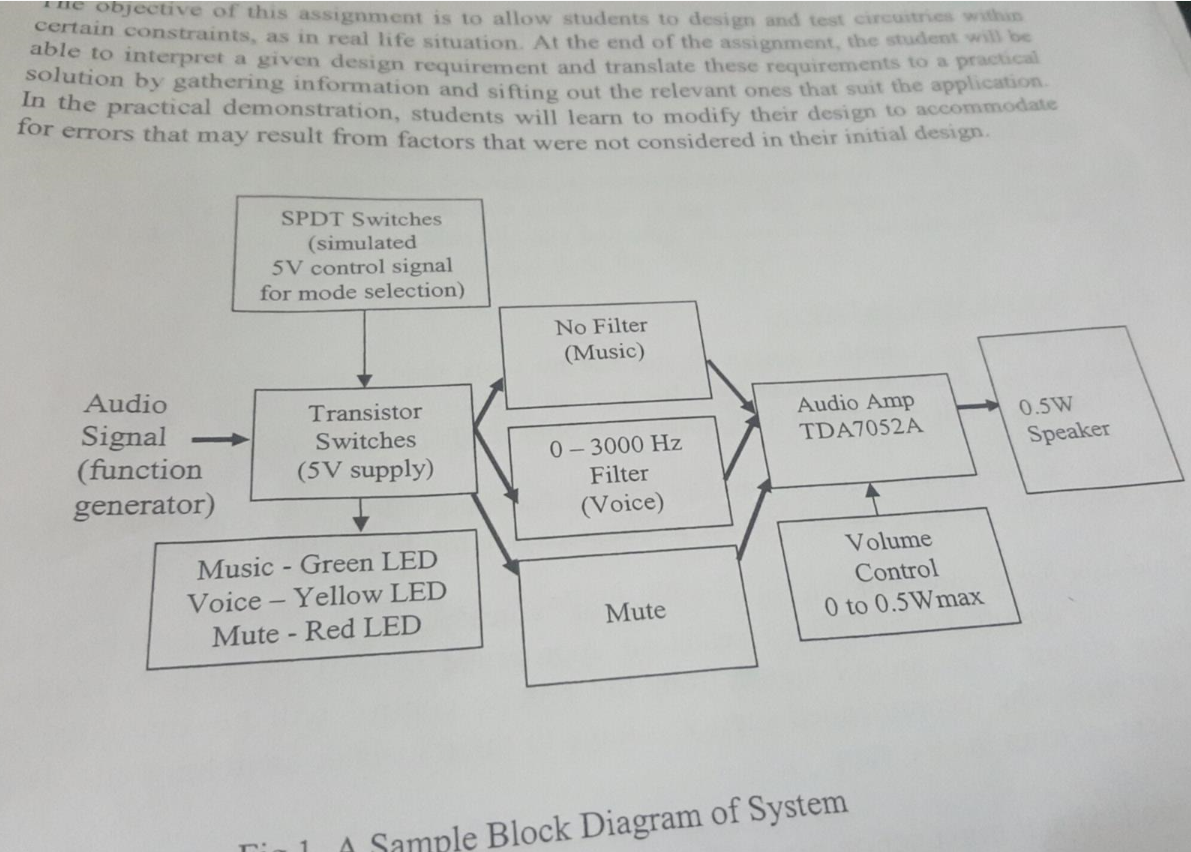

    I answered you a few minutes ago at EDAboard. Here is the block diagram you attached there:
