    Often newbees ask, 'How can I get started in electronics?', 'What tools and equipment will I need?', 'Which components should I buy?'. This article gives some specific advice on the latter question. Also see article, 'Core Equipment' @ http://www.electro-tech-online.com/articles/core-equipment.787/

    INTRODUCTION
    Electronics is vast and complex, but it can be divided into two broad areas: analog and digital (logic). It is advisable to grasp the fundamentals of analog electronics even if you are going to specialize in digital electronics. On the other hand, many makers have built numerous projects without learning about digital electronics. For this reason, logic chips are not greatly represented in this core list of components. Don't get the wrong idea though: this may be a basic components list but you can still build some pretty advanced circuits with the components listed.

    COMPONENT TYPES
    There are millions of different electronic components, ranging from elementary resistors through single transistors to unbelievably complex microprocessor chips, containing billions of transistors. For a newbee, the choice is bewildering. But it needn't be, because many components, in spite of their different part numbers, are essentially the same (transistors and opamps especially), and also there is a core of ubiquitous components that will suffice for the vast majority of circuits, even though you may need to buy an additional special component now and then.

    COST
    Electronic components, in the main, are remarkably cheap. For example, an LM555 timer and LM358 dual opamp only cost about $0.33US. Small signal transistors are yet cheaper, at around $0.10US. Even high-power BJTs and MOSFETs, only cost around $2.00US each. And the biggest bargain of all is the Raspberry Pi Zero single board computer, at a mere $4.00US. Ironically, one of the lowest technology components on the list is also the most expensive; the 4,700uF electrolytic capacitor costs around £6.00US. A rough guide to prices is sown in [brackets] in US dollars next to most components.

    QUANTITY
    How many of each component to buy? The answer is, it depends on the component cost, what circuits you are building, and what your budget is. You really need two breadboards, as shown in the image at the top of this post. But for jellybean (low cost) components I would advise 20 of each, apart from the 100nF decoupling capacitor where 50 of is recommended, because they are used so widely in circuits. The 250mW resistors are similarly widely used and 50+ of each value is advisable. The small signal and low power transistors are jelly bean, but perhaps buy 5 of each of the more powerful relatively expensive transistors.

    MINIATURIZATION
    Components are getting smaller and, while this is great for completed electronic products, like cell phones (mobile phones), it is not so good for makers because surface mount components are so small that they are difficult to work with. The first surface mount components were not too small, but some of the newer components are so small that they can only be used with specialist soldering equipment (solder station) and a good quality optical magnifying system (microscope or camera).

    Then ball grid array (BGA) technology arrived, where the solder joints are hidden under the component package. BGA components are beyond the capabilities of home makers. Although small BGA components can be glued up-side-down to an adapter board so that the balls are accessible. Wire links can then be used to connect to the pins of the adapter board.

    Unfortunately, many of the latest, and best components, are only available in surface mount. This is especially the case for opamps and MOSFETS. The best way around this problem is to mount surface mount components on adapter boards so that the surface mount component can be used as a thru hole component (and plugged into breadboards). Sometimes you can also mount the standard supply line decoupling capacitors on the adapter board too.

    [​IMG]

    COMPONENT MANUFACTURER
    A particular component may be made by a number of manufacturers: Texas Instruments (TI), ON, Linear Technology (LT), Analog Devices (AD), Vishay, Infinion, ST, Toshiba, Diodes, NXP... and, although the component identity may be the same, there are often performance variations. So, the component's data sheet needs to be checked carefully to ensure that the parameters meet the requirements of the target application.

    SOURCES
    Components are distributed by a number of sources. At one end there are the manufacturers, and the top-line distributors: DigiKey, Mouser, Arrow, Element 14 (Farnell), RS... followed by a sea of smaller distributors. Then there are the budget retailers, eBay being the biggest, probably followed by Alibaba and then Amazon.

    You can safely buy components from the manufacturers, and you can be reasonably confident about components from the top-line distributors. But you have to be wary when purchasing from other sources. And in particular, there are components that are a high risk of being rip-offs: batteries, large capacitors, high power transistors, RF transistors. Batteries, in particular, need caution, especially if performance claims greatly exceed those of the main-line manufacturers. Testing has sown that theses batteries are far inferior to the real thing.

    When you get more experience you can get into the world of salvage components. Theses are removed from scrap equipment: TVs, fridges, microwaves... and this way you get some very high quality and expensive components for nothing, or close to nothing.

    STORING & INDEXING
    You may think that the technical side of electronics is going to be the hardest part but, in practice, one of the major problems is knowing what components you have and where they are. If you are not careful you can end up with a mountain of components but can never find the particular component you want. Believe it or not, this seemingly mundane area can cause the biggest frustration in electronics. There is a danger that you will end up with so many components and assemblies that you do not have room for working on your latest project- I speak from experience.

    Nobody ever does this 100%, but it is best to maintain a list on your computer of all your components. Keep all your components in boxes which are marked with the contents. Resistors are a special case: get a cabinet with draws for each decade or sub-decade and keep individual resistors in packets. Similar cabinets with draws can be used for smaller components. Make sure the drawers are a decent size.

    [​IMG]

    MICROCONTROLLER/MICROPROCESSOR

    Processors may seem out of place in a list of core components. But there was a sea-change at the beginning of 2016, and processors are now simple to use and cheap. This is epitomized by the Arduino Uno (microcontroller) and the Raspberry Pi Zero (microprocessor). The situation has now been reached where it is often simpler and cheaper to use processors for even the most simple functions.

    You may wonder why processor chips: PIC, AVR, ARM, are not included in the list. The reason is quite simple, it is now more convenient and cheaper to to use ready built processor boards (processor chips are for experienced makers).

    Many newbees are put off by the thought of writing software, to program a processor to realize a particular function but, in practice, this is also now a simple task that the average maker should have no trouble doing (computer programming is a vast and complex field though). There are also many pre-cooked programs on the net which you can simply cut and paste. You will need a personal computer though.

    OPA 2192 OPERATIONAL AMPLIFIER

    This advanced, opamp, may seem another odd choice for a starters list, especially as it is only available in a surface mount case and it is relatively expensive. But, as of 2014, the OPA2192 is the most 'perfect' opamp available. Because of this, it is easy to use and understand, and can replace most other opamps, including the LM358 (apart from low supply line LM358= 3V, OPA2192= 4.5V). Put quite simply, the OPA2192 will greatly improve the performance of any circuit and there are functions that you can only realize with the OPA2192 that are impossible with the LM358 and many other opamps. http://www.electro-tech-online.com/articles/game-changer-opamp-opax192.768/

    DATA SHEETS

    Data sheets are indispensable; they tell you exactly how a component works and what its performance is. Data sheets are another area that can be daunting for newbees, but once you find your way around them, they are not too difficult. Some of the more esoteric information in data sheets can simply be ignored for most applications. Naturally, data sheets vary according to the component; a resistor or capacitor data sheet may be a single page, while the datasheet for a microprocessor could be 500 pages. A link to a data sheet is given for most components in the list.

    CORE COMPONENTS LIST


    (1) Hardware

    Breadboard [$6.00]

    (see image at head of this article)

    Stripboard [$5.00]


    Wire

    Jumper leads (for plugging into a breadboard) [$2.50 for 50]

    Tagstrip [$0.70]


    Terminal, printed circuit [$0.15]

    [​IMG]

    Terminal, panel mount [$0.60]

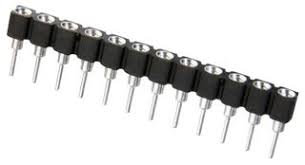

    IC socket strip, turn pin, 40 way. [$1.00] (cut to suit chip package)

    [​IMG]

    (2) Resistor

    Metal oxide, 0.25W, +-5% (or better), thru-hole [$0.01 to $0.05 depending on quantity]

    1R, 2.2R, 4.7R, 7.5R

    10R, 22R, 47R, 75R

    100R, 220R, 470R, 750R

    1K, 2.2K, 4.7K, 7.5K

    10K, 22K, 47K, 7.5K

    100K, 220K, 470K, 750K

    1M, 2.2M, 4.7M, 7.5M

    10M


    Wire wound, 10W, +- 5%, chassis mount [$1.00]

    0R1, 0R47 (0.1 Ohms, 0.47 Ohms)

    1R, 4.7R

    10R, 47R

    100R, 470R


    Resistor precision: Welwyn RC55 [$1.00] ( Buy as required) http://www.ttelectronicsresistors.com/datasheets/rc.pdf

    (3) Capacitor

    22pF

    47pF

    100pF

    220pF

    470pF

    1nF polycarbonate

    4.7nF polycarbonate

    10nF polycarbonate

    47nF polycarbonate

    100nF 25V ceramic X7R dielectric [$0.30] (the most widely used decoupling capacitor)


    47uF, 25V aluminum electrolytic [$0.50]

    4,700uF, 25V aluminum electrolytic, low ESR, high ripple [$6.oo]


    (4) Diode

    Diode, small signal, high-speed: 1N4148, (75V, 300mA) [$0.05] http://www.vishay.com/docs/81857/1n4148.pdf

    Diode, small signal, high-speed, Schottky, low forward voltage (30V, 200mA) [$030] http://www.vishay.com/docs/85660/bat42.pdf

    Rectifier medium current: 1N4007 (1000V, 1A) [$0.20] http://www.vishay.com/docs/88503/1n4001.pdf

    Rectifier high current Schottky : MBR10100 (100V, 10A) [$0.90] http://www.onsemi.com/pub_link/Collateral/MBR1080-D.PDF

    Zener diode: BZX79xxx (500mW, 2%) [0.17$] http://www.nxp.com/documents/data_sheet/BZX79.pdf
    2.5V
    3.3V
    5.0V
    8.2V
    12V
    15V
    18V
    24V
    48V

    LED High efficiency 2mA [$0.30]


    (5) Transistor

    NBJT small signal: BC546 [$0.10] https://www.fairchildsemi.com/datasheets/BC/BC546.pdf


    PBJT small signal: BC556 [$0.10] https://www.fairchildsemi.com/datasheets/BC/BC560.pdf

    NBJT low power: BC337 [$0.12] https://www.fairchildsemi.com/datasheets/BC/BC337.pdf

    PBJT low power BC327 [$0.12] https://www.fairchildsemi.com/datasheets/BC/BC327.pdf

    NBJT power: TIP41C [$0.80] http://www.onsemi.com/pub_link/Collateral/TIP41A-D.PDF

    PBJT power: TIP42C [$0.80] http://www.onsemi.com/pub_link/Collateral/TIP41A-D.PDF

    NBJT high power: TIP35C [$1.50] http://www.onsemi.com/pub_link/Collateral/TIP35A-D.PDF

    PBJT high power: TIP36C [$1.50] http://www.onsemi.com/pub_link/Collateral/TIP35A-D.PDF


    NJFET: 2N3819 [$0.50] https://www.fairchildsemi.com/datasheets/2N/2N3819.pdf

    PJFET ?? [$0.50] ??

    NMOSFET small signal: IRLD110 [$0.60]

    PMOSFET small signal: TBD [$0.60]

    NMOSFET low power: TBD [$0.70]

    PMOSFET low power: TBD [$0.70]

    NMOSFET high power; TI CSD18532KCS [$2.00] http://www.ti.com/lit/ds/symlink/csd18532kcs.pdf

    POSFET high power; ST STD35P6LLF6 [$2.00] http://www.digikey.co.uk/product-detail/en/stmicroelectronics/STD35P6LLF6/497-15462-1-ND/5244701

    (6) Integrated Circuit, Linear & Mixed

    Dual opamp, general purpose: LM358 [$0.33] http://www.ti.com/lit/ds/symlink/lm158-n.pdf

    Dual opamp, high performance, precision, rail to rail input output (RRIO): OPA2192ID or OPA2192IDR (SOIC-8 package) (surface mount only) [$2.00] (buy as required) Note: buy the SOIC-8 package version as this is bigger than the VSSOP package. http://www.ti.com/lit/ds/symlink/opa192.pdf

    [​IMG] 2016_12_22_ETO_OPA2192_SO-8_CASE_PIN_OUTL.png 2016_12_22_ETO_OPA2192_SOIC-8_CASE_PLAN.png

    Dual comparator: LM393 ($0.33) http://www.ti.com/lit/ds/symlink/lm2903-n.pdf

    Timer: LM555 [$0.33] (LMC555 also worth considering [$0.50]) http://www.ti.com/lit/ds/symlink/lm555.pdf ( http://www.ti.com/lit/ds/symlink/lmc555-md8.pdf )

    Three terminal adjustable voltage regulator, positive: LM317 [$0.60] http://www.ti.com/lit/ds/symlink/lm317.pdf http://www.ti.com/lit/ds/symlink/lm337-n.pdf

    Three terminal adjustable voltage regulator, negative:LM337 [$0.60] http://www.ti.com/lit/ds/symlink/lm317.pdf http://www.ti.com/lit/ds/symlink/lm337-n.pdf

    Adjustable voltage reference: TLVH431LP [$1.00] http://www.ti.com/lit/ds/symlink/tlvh431.pdf

    (7) Integrated Circuit, Logic

    Quad NAND Shmitt trigger inputs: 74AHC132 [$0.50] http://www.ti.com/lit/ds/symlink/sn74ahc132.pdf

    [​IMG]

    Decade counter decoder: 74HC4017 [$1.00] http://www.ti.com/lit/ds/symlink/sn74hc4017.pdf


    [​IMG]

    (8) Microcontroller/Microprocessor

    Arduino: Uno clone: [$3.00]


    Raspberry PI: Zero [$4.00]


    ADDENDUM

    741 OPERATIONAL AMPLIFIER
    When Fairchild introduced the 741 opamp in 1968, it caused a revolution in the analogue world and quickly became the biggest-selling opamp of all time. There are endless circuits, especially on the net, that specify 741 opamps, and academia inevitably uses 741s as opamp examples and in practical projects. So you may wonder why the 741 isn't on the list of go-to components: although the 741 is an old friend, it has some serious limitations: limited input and output voltage ranges, minimum supply rails limit, low output source and sink currents, poor saturation recovery… Consequently, the 741 should be avoided now, especially by newbees who have been confused and frustrated by the 741 and, unfortunately, many of the circuits you see simply do not work with a 741. http://www.ti.com/lit/ds/symlink/lm741.pdf

    2N3055/MJ2955
    The 2N3055 was the first under-a-dollar, high-power silicon BJT. Launched by RCA in the early 1960s, it became the go-to device for many applications, especially audio power amplifiers and power supplies. The 2N3055 is reliable and rugged and is produced by numerous manufacturers. Later the MJ2955 PNP compliment was introduced by Motorola (now ON). Once again, you may ask why these reliable old work-horses are not included on the list. Quite simply, the 2N3055/MJ2955 have now been eclipsed by better performing, high-power transistors that are easier to use and will enhance the performance of your projects. http://www.onsemi.com/pub_link/Collateral/2N3055-D.PDF

    REFERENCES
